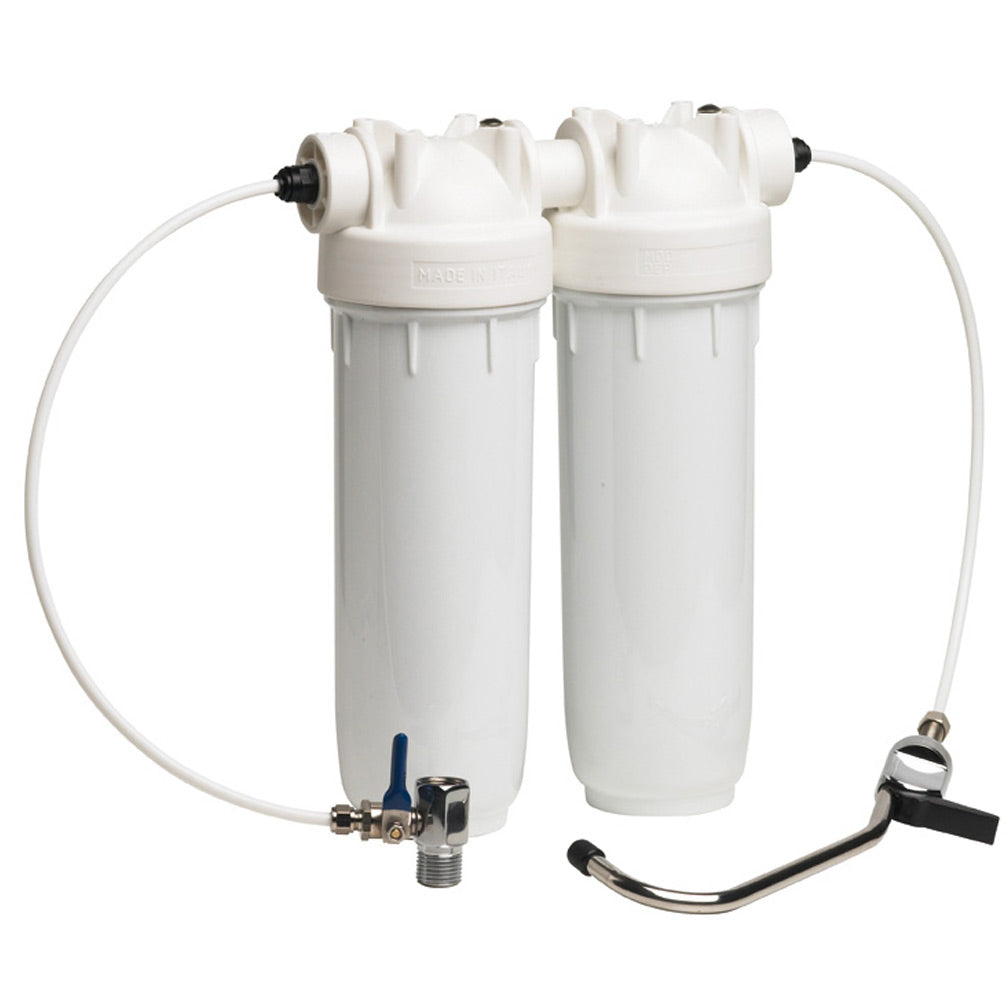

BRAVO DP DUO BW

BRAVO DUO DP

The BRAVO DUO DP under-sink water filters improve water quality by keeping the water clean and safe.

The BRAVO DUO DP enables space-saving installation above the sink and offers two filtration stages and water treatment options.

By connecting them, you optimize system use and also enable the use of untreated water.

The under-sink water filters are compatible with a variety of SX (DOE) filter cartridges with centering ring Filter Fit and BX (SOE – O-ring 222) with a height of 25.4 cm (10 inches).

In combination with activated carbon filters for sediment removal, they improve water quality by reducing chlorine, unpleasant odours and tastes, contaminants and microorganisms. Order your water filter cartridges now with:

Our recommendation for you:

1 x FA 25 SX 5 mcr  -  sediment wound filter  (Item No.: 4260303250120)
- Filtration of fine particles (rust, limescale flakes, sand, flakes)
- Service life: approx. 6 months (depending on water quality and flow rate)

1 x CB-SI 10 SD 0,3 mcr - activated carbon block microfiltration (Item No.: 4260303252377)
The CARBON-BLOCK filters contaminants from tap water such as some microorganisms / bacteria, chlorine, organic pollutants, pesticides, taste impairments and all very fine particles larger than 0,3 µm.
- Reduction of chlorine (bad taste and odour)
- Contaminants (pesticides, solvents, etc.)

The filter housing is patented. With the BRAVO DP under-sink water filters, waste and bottle consumption can be significantly reduced - an important contribution to environmental protection.

Technical data

10" filter housing
Suitable for all commercially available 10" cartridges with flat gasket and BX
Suitable for drinking water applications
Dimensions: 325 x 122 x 107 mm (HxWxD)
Operating pressure: maximum 8,0 bar
Temperature range: 4 - 45 °C

Material selection

Housing head: reinforced polypropylene
Housing bowl: PET
O-ring: EPDM
Bleed valve: stainless steel, EPDM

Areas of application:

Drinking water filter

You will receive a BRAVO DUO DP housing packed in a box without water filter cartridges.
