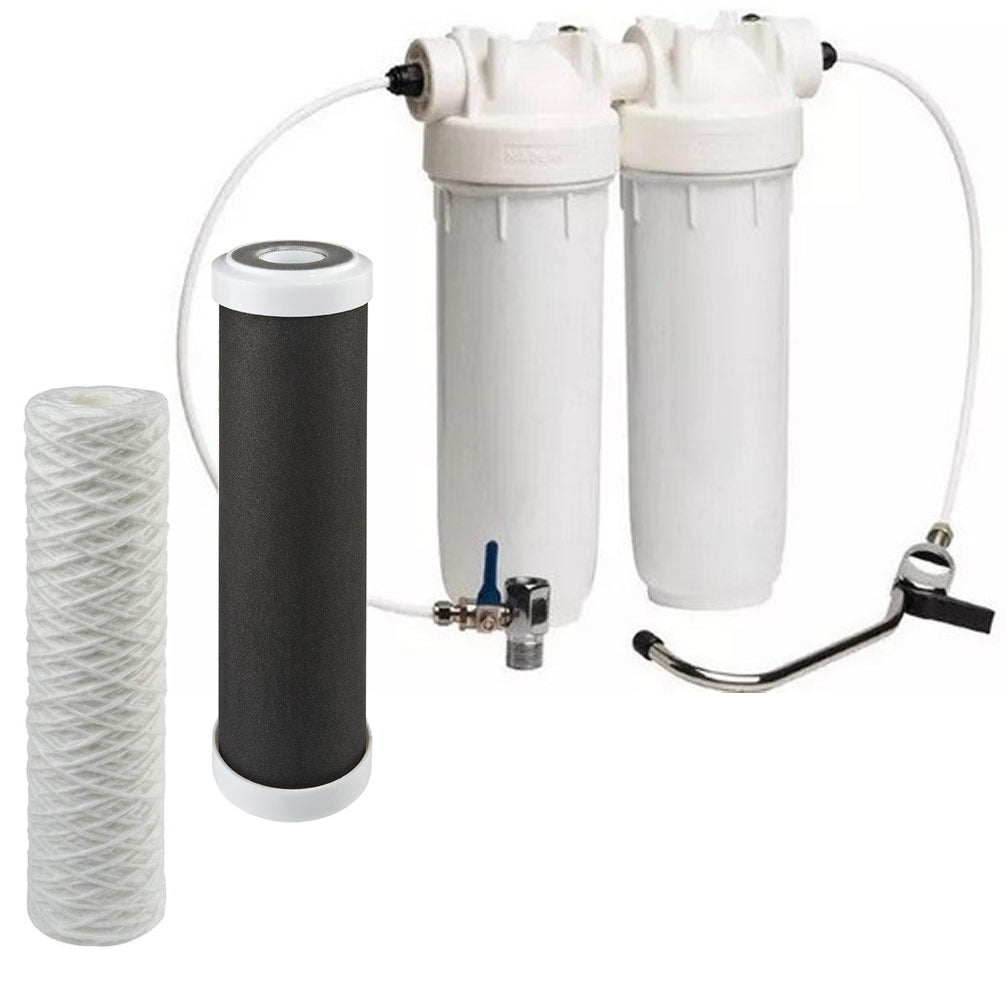

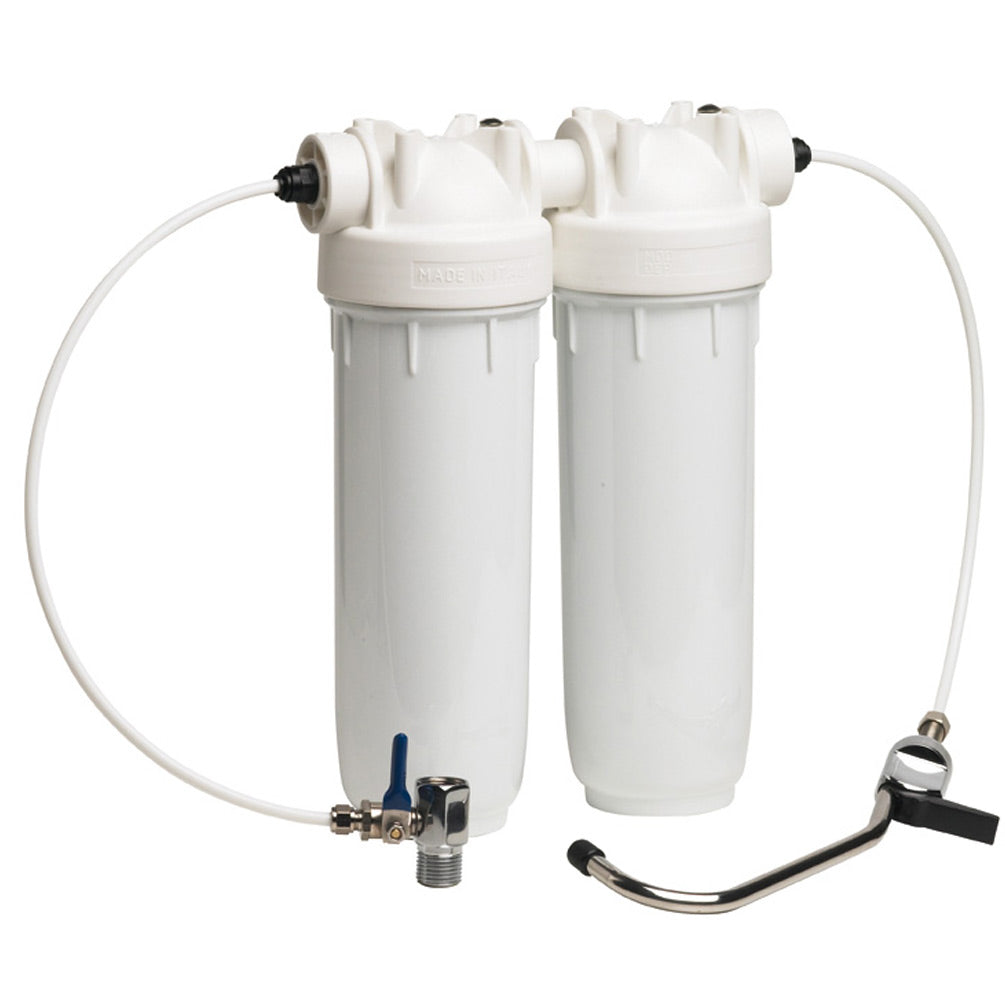

BRAVO DP DUO KIT - Microfiltration

BRAVO DUO DP KIT for Microfiltration

The BRAVO DUO DP under-sink water filters improve water quality through microfiltration, keeping the water clean and safe.

With the connection, they optimize system use and also enable the use of untreated water.

The BRAVO DUO DP allows space-saving installation above the sink and offers two filter stages and  water treatment options.

The filter housing is patented. With the BRAVO DP under-sink water filters, waste and bottle consumption can be significantly reduced – an important contribution to environmental protection.

In combination with activated carbon filters for sediment removal, they improve water quality by reducing chlorine, unpleasant odors and flavors, contaminants, and microorganisms.

1 x FA 25 SX 5 mcr  -  Sediment wound filter  (Item No.: 4260303250120)
- Filtration of fine particles (rust, scale flakes, sand, flakes)
- Service life: approx. 6 months (depending on water quality and flow rate)

1 x CB-SI 10 SD 0,3 mcr - activated carbon block microfiltration (Item No.: 4260303252377)
The CARBON-BLOCK filters contaminants from tap water such as some microorganisms / bacteria, chlorine, organic contaminants, pesticides, taste impairments, and all very fine particles larger than 0,3 µm.
- Reduction of chlorine (bad taste and odor)
- Contaminants (pesticides, solvents, etc.)
- Service life: approx. 6 months (depending on water quality and flow rate)

Technical data

10" filter housing
Suitable for all standard 10" cartridges with flat gasket and BX
Suitable for drinking water applications
Dimensions: 325 x 122 x 107 mm (HxWxD)
Operating pressure: maximum 8,0 bar
Temperature range: 4 - 45 °C

Material selection

Housing head: reinforced polypropylene
Housing bowl: PET
O-ring: EPDM
Bleed valve: stainless steel, EPDM

Applications:

Drinking water filter

You will receive a filter housing with 2 x  cartridges 1 x wall bracket W2 and 1 x housing wrench packed in the box.
