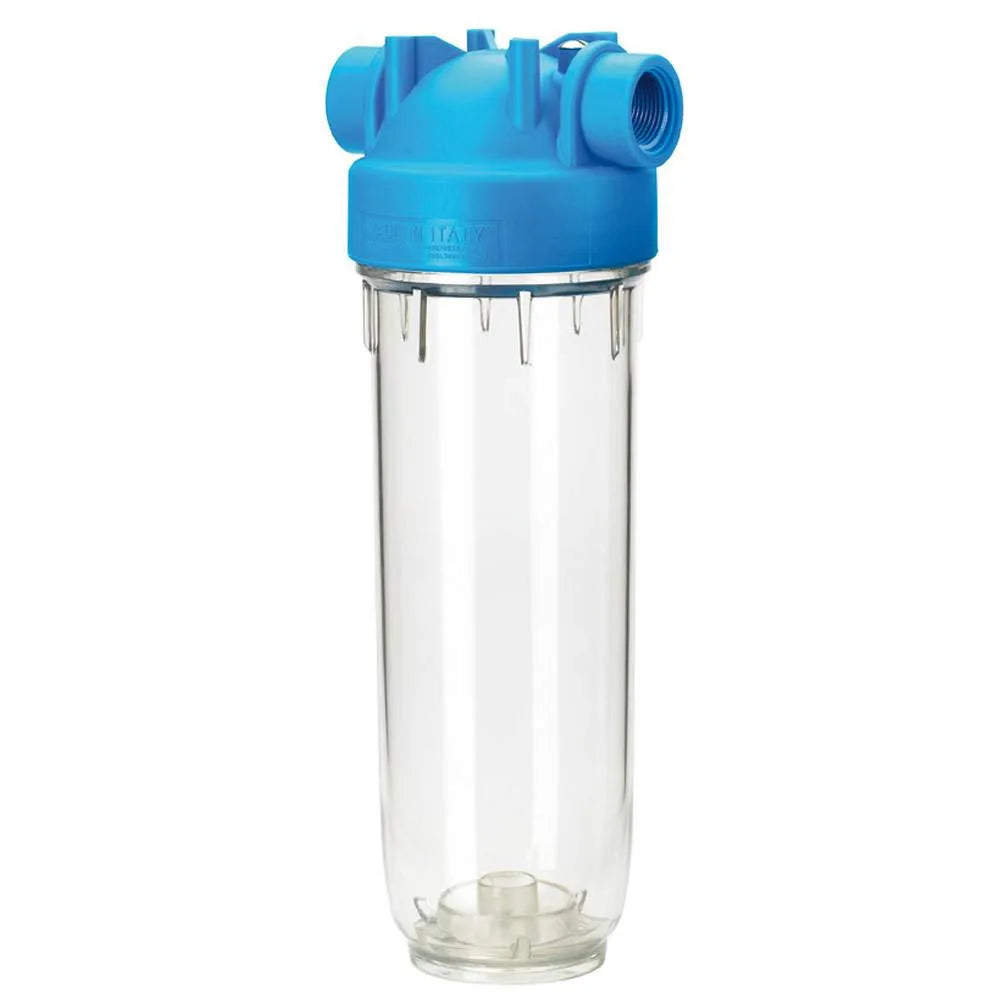

DP 10 Mono 1/4" IN TS - Single Filter Housing

DP 10 Mono 1/4" IN TS single filter housing made of polypropylene

Compact and robust filter housing for filtering and treating drinking water, well water, household water, etc.

You can find matching 10" filter cartridges in our shop.

We recommend the following accessories:
W1 - wall bracket EAN 8021647102089
S1-DP - housing wrench EAN 8021647164094

Technical data

10" filter housing
Suitable for all standard 10" cartridges with flat gasket
Suitable for drinking water applications
Connection size: 1/4" female thread
Dimensions: 325 x 122 x 107 mm (HxWxD)
Operating pressure: max. 8.0 bar
Temperature range: 4 - 45 °C

Material selection

Housing head: reinforced polypropylene
Housing bowl: PET
O-ring: EPDM
Bleed valve: stainless steel, EPDM

Areas of application:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive a 10" filter housing.
