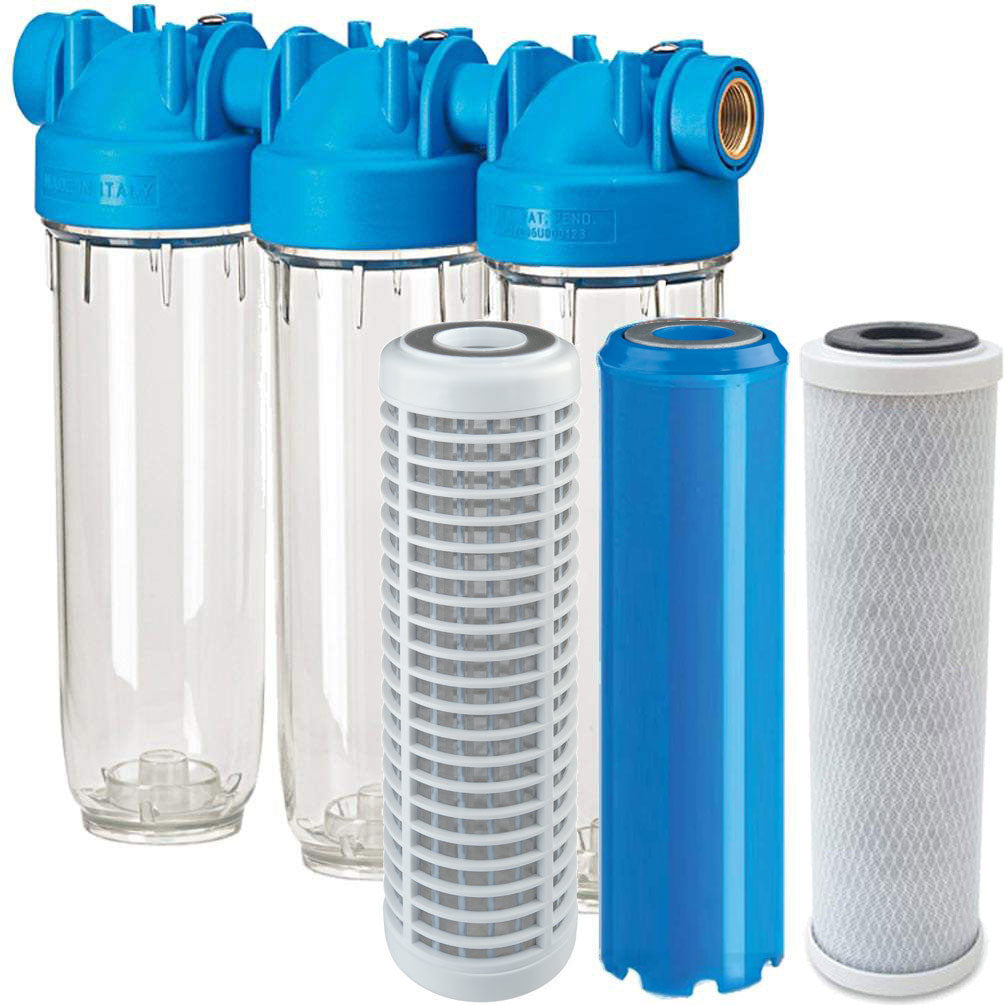

DP 10 Trio RLA PCB PFEX 10 mcr - Combination Iron Filter

DP 10 Trio RLA PCB PFEX 10 mcr – Combination iron filter for clean, taste-neutral water

The DP 10 Trio RLA PCB PFEX 10 mcr is a powerful Iron Filter, filled with two high-quality filter media, for effective Reduction of the iron concentration in the water. The PFEX Iron Filter Cartridge reduces iron, manganese, and other water-contaminating substances reliably, thus ensuring clearer, odorless, and tasteless water.

Effective Iron and Hydrogen Sulfide Reduction

The PFEX filter cartridge not only reduces the Iron concentration, but also the Hydrogen sulfide content, whereby metallic taste and unpleasant odors significantly reduced.
In the process, the dissolved in the water divalent iron (Fe²⁺) zu trivalent iron (Fe³⁺) oxidized and then safely bound in the filter medium. The PFEX filter specifically uses this purpose Hydrogen sulfide as an oxidation aid.

Reduction from:

- Iron suitable for use up to a max. value of 4,0 mg/l
- Manganese can be used up to a max. value of 0,1 mg/l
- Sulfite (up to 0.9 mg/l)
- Oxide (up to 4,0mg/l )
- Chloride (up to 4.8 mg/l)
- Silicates (up to 35.0 mg/l)

High-quality filter media for reliable water treatment

The Water iron-removal cartridges are with a fine-grained granulate filled, which specifically Eisen ions and fine particles removed from the water. In addition, the filter contributes to the Normalization of the pH value contributes to improving overall water quality.

Further advantages at a glance:

• Effective Iron ion treatment

• Reduction of Odour impairments

• Distance fine suspended solids

• Also filters light oils

• Improved taste and smell of the water

FILTERS:

1 x RLA - Pre-filtration Cartridge (Item no.: 4260303250557)
Filter medium: AISI 316 stainless steel
filters sand and other particles larger than 70 microns
- Lifespan: 12-24 months
- 10" filter dimensions: 250 x 70 x 30 mm

1 x PCB - CARBON activated carbon cartridge 10 micron (Item no.: 4260303250106)
- Filtration of fine particles (rust, limescale flakes, sand, scale)
- Reduction of chlorine (bad taste and odor)
- Harmful substances (pesticides, solvents, etc.)
- Service life: approx. 6 months (depending on water quality and flow rate)
- 10" Filter dimensions: 248 x 70 x 26 mm

1 x PFEX Iron Filter Cartridge for Reducing Iron Concentration: (EAN 4260303250830)
- Iron ion treatment
- Odor impairments and fine particles
- In addition, the filter removes light oils
- Maximum temperature: up to 45 °C
- Service life: approx. 3 - 6 months (depending on the water quality and the throughput volume - max. 4 mg/L FE² and 0.1 mg/l manganese)

- 10" filter dimensions: 248 x 70 x 26 mm

!With PFEX de-ironing filters, granulate dust caused by transport may initially be released. Let the water run until it is clear. If necessary, only insert subsequent filters afterwards!

PLEASE OBSERVE THE MAXIMUM VALUES. IF NECESSARY, CARRY OUT A WATER ANALYSIS!

You will receive 1 x TRIPLE filter housing, 3 x filter cartridges, 1 x W3 wall bracket, and 1 x housing wrench, packed in a box.
