DP 10 Trio RLA PCB PFEX 10 mcr - Combination Iron Filter

DP 10 Trio RLA PCB PFEX 10 mcr – Combination iron filter for clean, neutral-tasting water

The DP 10 Trio RLA PCB PFEX 10 mcr is a powerful Iron filter, filled with two high-quality filter media, for effective Reduction of the iron concentration in the water. The PFEX Iron Filter Cartridge reduces iron, manganese, and other water-contaminating substances reliably, thereby ensuring clearer, odour-free and taste-neutral water.

Effective Iron and Hydrogen Sulfide Reduction

The PFEX filter cartridge not only reduces the Iron concentration, but also the Hydrogen sulfide content, whereby metallic taste and unpleasant odors be significantly reduced.
In the process, what is dissolved in the water divalent iron (Fe²⁺) zu trivalent iron (Fe³⁺) oxidized and then securely bound in the filter medium. The PFEX filter specifically uses this for Hydrogen sulfide as an oxidation aid.

Reduction from:

- Iron up to a max. value of 4.0 mg/l can be used
Manganese can be used up to a max. value of 0,1 mg/l
- Sulfite (up to 0,9 mg/l )
- Oxide (up to 4.0 mg/l)
- Chloride (up to 4,8 mg/l)
- Silicates (up to 35.0 mg/l)

High-quality filter media for reliable water treatment

The Water De-Ironing Cartridges are with a fine-grained granules filled, which specifically Iron ions and fine particles additionally removes it from the water. In addition, the filter contributes to Normalization of pH value and thus improves the overall water quality.

Further benefits at a glance:

• Effective Iron Ion Treatment

• Reduction of Olfactory impairments

• Distance fine suspended particles

• Also filters light oils

• Improved taste and smell of the water

FILTRATION:

1 x RLA - Pre-Filter Cartridge (Item No.: 4260303250557)
Filter medium: stainless steel AISI 316
filters sand and other particles larger than 70 microns
- Shelf life: 12-24 months
- 10" filter dimensions: 250 x 70 x 30 mm

1 x PCB - CARBON Cartridge Activated Carbon 10 Micron (Item No.: 4260303250106)
- Filtration of fine particles (rust, limescale flakes, sand, scale)
- Reduction of chlorine (bad taste and odor)
- Harmful substances (pesticides, solvents, etc.)
- Lifespan: approx. 6 months (depending on the water quality and flow volume)
- 10" inch filter dimensions: 248 x 70 x 26 mm

1 x PFEX Iron Filter Cartridge for Reducing Iron Concentration: (EAN 4260303250830)
- Iron ion treatment
- Odor nuisances and fine particles
- It also removes light oils
- Maximum temperature: up to 45 °C
- Service life: approx. 3 - 6 months (depending on water quality and flow rate - max. 4 mg/L FE² and 0.1 mg/l manganese)

- 10" inch filter dimensions: 248 x 70 x 26 mm

!With PFEX de-ironing filters, granular dust caused by transport may initially be released. Let the water run until it is clear. If necessary, only install the subsequent filters afterwards!

PLEASE NOTE THE MAXIMUM VALUES. IF APPLICABLE, CARRY OUT A WATER ANALYSIS!

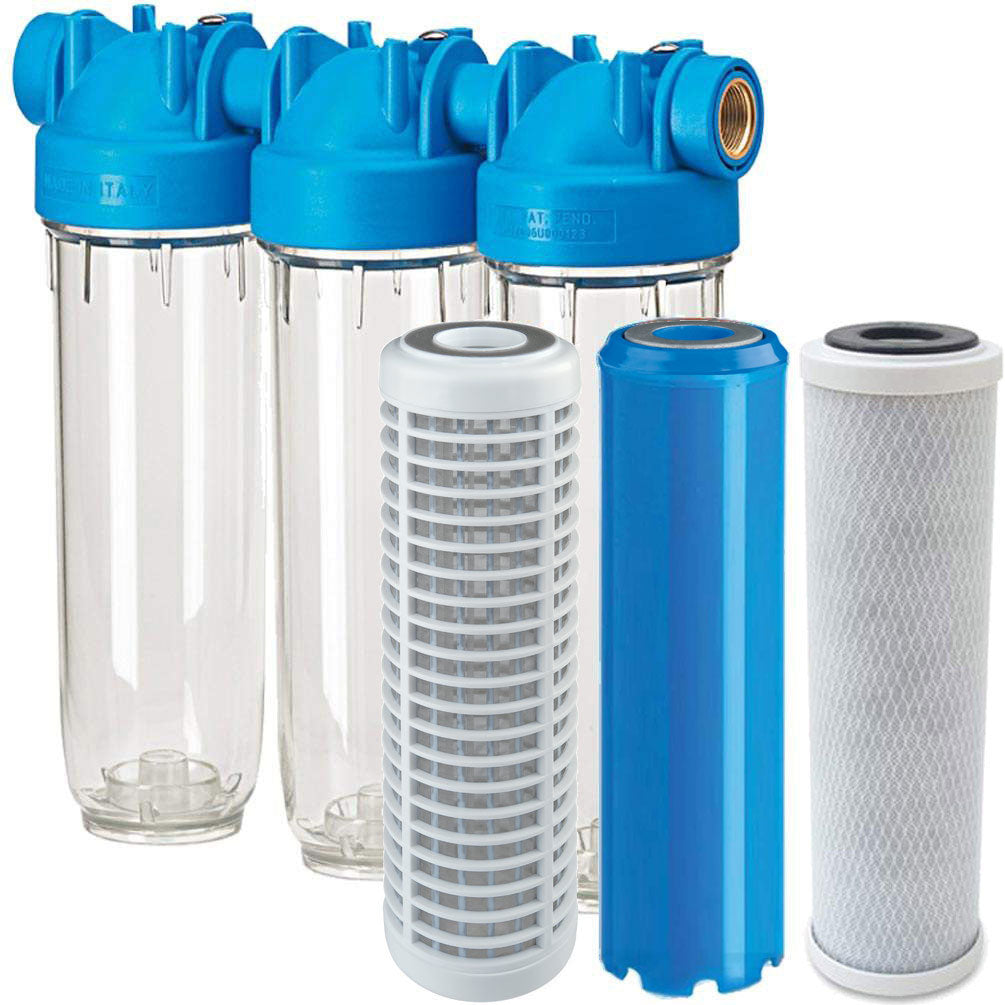

You will receive 1 x triple filter housing, 3 x filter cartridges, 1 x W3 wall bracket, and 1 x housing wrench, packed in a box.
