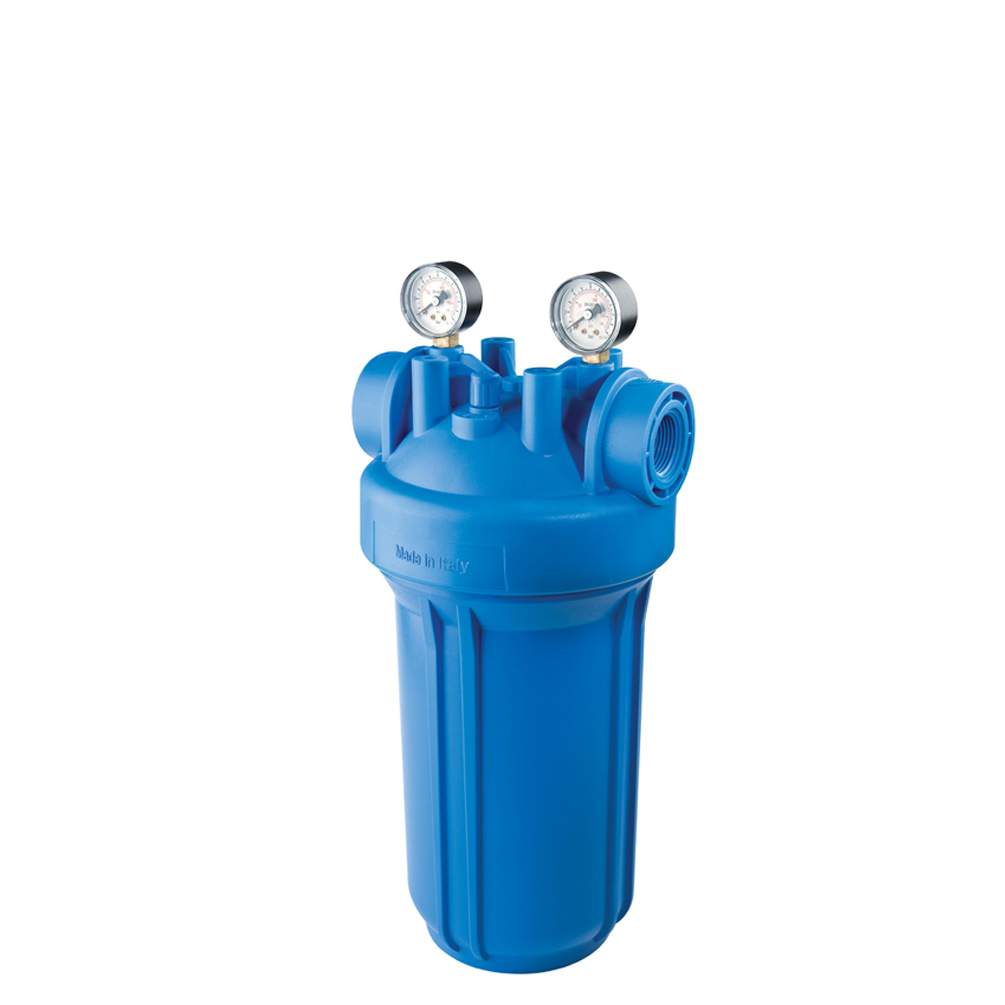

DP BIG M 10 1" In/Out High-Performance Filter Housing with 1" Pressure Gauge

DP BIG M 10 1" IN AB 10" High-performance polypropylene filter housing with two pressure gauges - IN/OUT 1"

You will receive a 10" high-performance polypropylene filter housing with two pressure gauges.

The matching filters can be ordered separately in the shop!

Use: For high-performance water filtration applications as well as industrial applications, filtration and treatment of drinking water, well water, household water, wastewater, and for protecting fittings, boilers, pumps, water tanks and other technical systems as well as pipelines.

Technical use of the water filters: Water purification, water softening, nitrate removal, iron removal, demineralization, filtering of oils and aromas, organic substances, insecticides, solvents, lime and chlorine removal, etc.

10" BIG filter housing:
Height 435 Width 190 Depth 185 mm
1" connection with plastic threaded sockets
Maximum pressure: 8.3 Bar (120 PSI)
Maximum temperature: 45 degrees Celsius
Pressure gauge: radial type, 0-12 bar (0-170 psi)

Suitable only for all BIG 10" water filter cartridges.

As accessories, we recommend:
B1WP wall bracket EAN 8021647399403

You will receive a filter housing with 2 pressure gauges, including a housing wrench, packed in a box
