DP BIG M 10 1" IN TS High-Performance Filter Housing 1" Thread

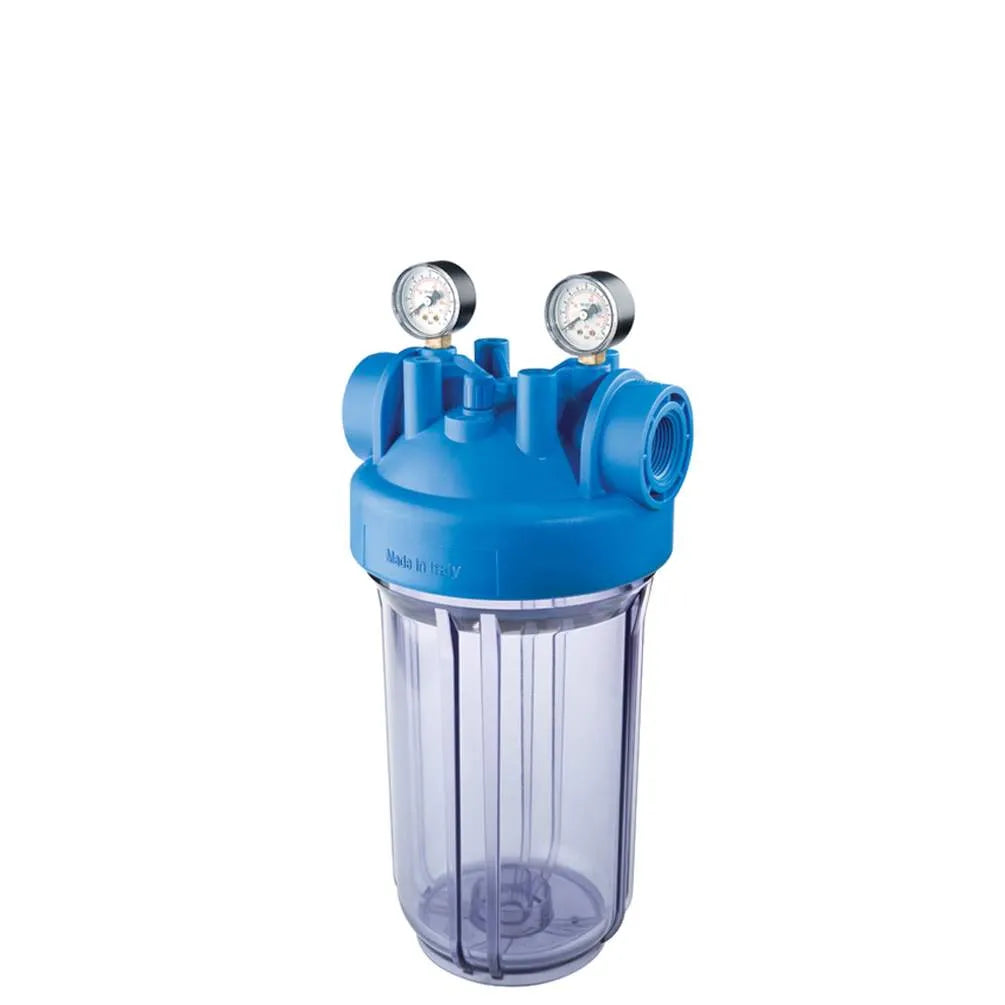

DP BIG M 10 1" IN TS 10" high-performance polypropylene filter housing with two pressure gauges - IN/OUT 1"

You will receive a 10" high-performance polypropylene filter housing with two pressure gauges.

The matching filters can be ordered separately in the shop!

Use: For high-performance water filtration applications as well as industrial applications, filtration and treatment of drinking water, well water, domestic water, wastewater, used to protect fittings, boilers, pumps, water tanks and other technical systems as well as pipelines.

Technical uses of the water filters: Water purification, water softening, nitrate removal, iron removal, demineralization, filtering of oils and aromas, organic substances, insecticides, solvents, lime and chlorine removal, etc.

10" BIG filter housing:
Height 425 Width 190 Depth 185 mm
1" connection with plastic threaded bushings
Maximum pressure: 8.3 Bar (120 PSI)
Maximum temperature: 45 degrees Celsius
Pressure gauge: radial type, 0-12 bar (0-170 psi)

Suitable for all BIG 10" water filter cartridges only.

Find the matching filter cartridges in our shop and save on shipping costs!

Areas of application:
Water treatment
Well construction
Building services engineering
Chemical industry
Pharmaceutical industry
Cosmetics industry
Surface treatment
Film and photo industry
Beverage and food industry
Electronics industry
Paints and coatings industry
Petrochemicals
Laboratory technology

We recommend the following accessory:
B1WP wall bracket EAN 8021647399403

You will receive a filter housing with 2 pressure gauges, including housing wrench, packaged in a box
