20 inches - 20" SINGLE high-performance filter housing made of polypropylene with two pressure gauges, specially designed for high-performance liquid filtration applications and industrial uses, IN/OUT 1"
Pre-filter
Device protection filter
Drinking water filter

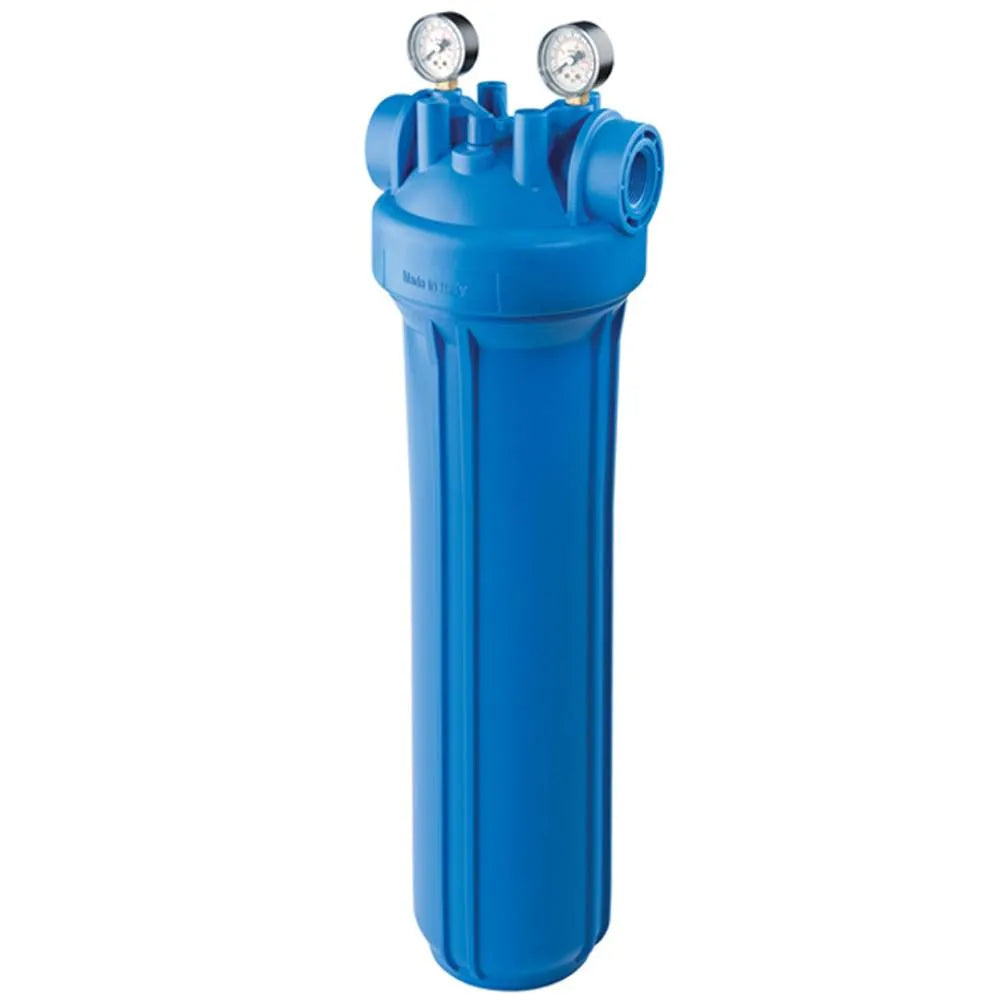

DP BIG M 20 1" IN AB 20" High-performance filter housing made of polypropylene with two manometers - IN/OUT 1"
You will receive a 20" inch high-performance filter housing made of polypropylene with two manometers.
You can order the suitable filters separately in the shop!
Verwendung: For high-performance applications of water filtration as well industrial applications, filtration and treatment of drinking water, Well water, house water, wastewater, serves to protect fittings, Boilers, pumps, water tanks, and other technical systems as well as the Pipelines.
Technical use of the water filters: Water purification, Water softening, nitrate removal, iron removal, demineralization, filtering of oils and aromas, organic substances, insecticides, solvents, lime and Chlor removal etc.
20" inch BIG filter housing:
Height 682 Width 190 Depth 185 mm
1" inch connection with plastic threaded sockets
Maximum pressure: 8.3 Bar (120 PSI)
Maximum temperature: 45 degrees Celsius
Manometer: Radial type, 0-12 bar (0-170 psi)
Only suitable for all BIG 20" inch water filter cartridges.
Search for the suitable filter cartridges in our shop and save Shipping costs!
Areas of application:
Water treatment
Well construction
Building Services
Chemical Industry
Pharmaceutical Industry
Cosmetic Industry
Surface treatment
Film and Photo Industry
Beverage and Food Industry
Electronics Industry
Colors and Coatings Industry
Petrochemistry
Laboratory Technology
You will receive a BIG filter housing 20" with 2 pressure gauges packed in a box.
