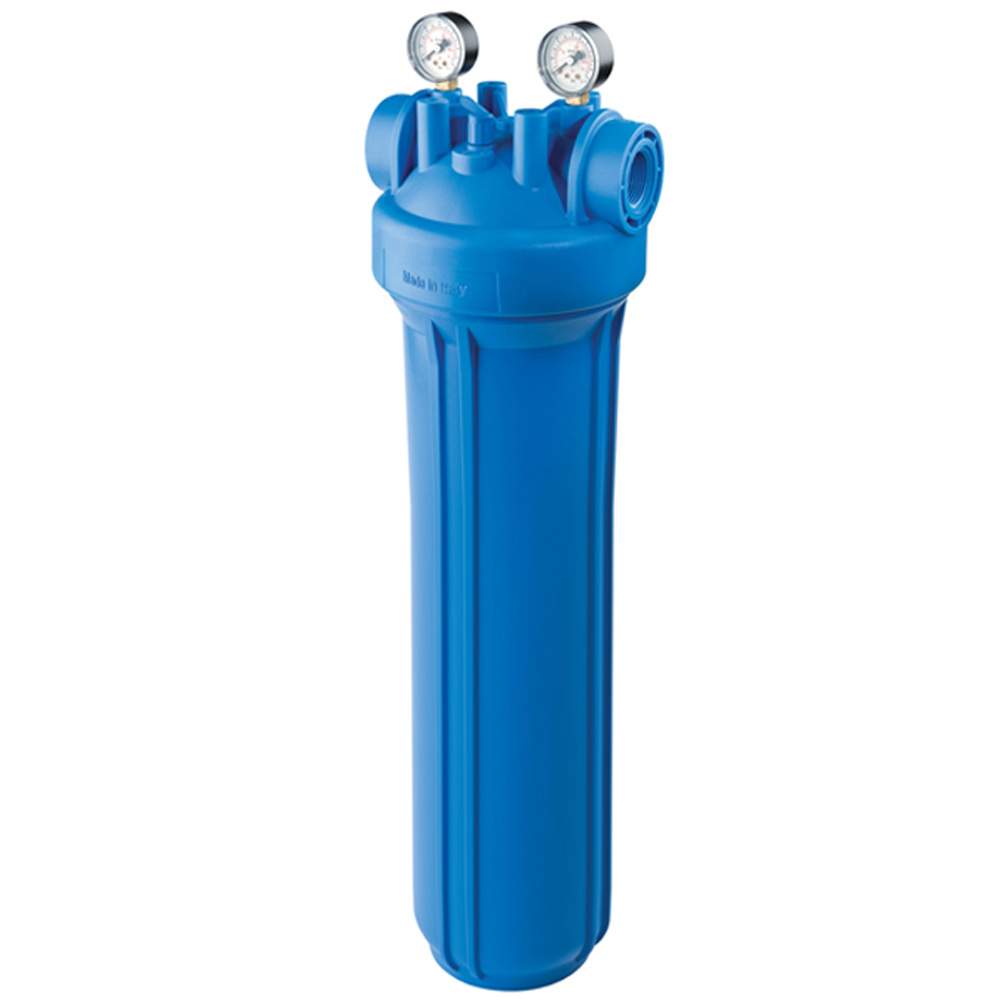

DP BIG M 20 1"1/2 IN AB High-Performance Filter Housing with Pressure Gauge

DP BIG M 20 1"1/2 IN AB 20" high-performance polypropylene filter housing with two pressure gauges - IN/OUT 1"1/2

You will receive a 20" high-performance polypropylene filter housing with two pressure gauges.

The matching filters can be ordered separately in the shop!

Use: For high-performance applications in water filtration as well as industrial applications, filtration and treatment of drinking water, well water, household water, and wastewater; protects fittings, boilers, pumps, water tanks, and other technical systems as well as piping.

Technical use of the water filters: Water purification, water softening, nitrate removal, iron removal, demineralization, filtering of oils and flavors, organic substances, insecticides, solvents, limescale and chlorine removal, etc.

20" BIG filter housing:
Height 682 Width 190 Depth 185 mm
1"1/2 connection with plastic threaded inserts
Maximum pressure: 8.3 bar (120 PSI)
Maximum temperature: 45 degrees Celsius
Pressure gauge: radial type, 0-12 bar (0-170 psi)

Fits only all BIG 20" water filter cartridges.

Find the matching filter cartridges in our shop and save on shipping costs!

Areas of application:
Water treatment
Well construction
Building services
Chemical industry
Pharmaceutical industry
Cosmetics industry
Surface treatment
Film and photo industry
Beverage and food industry
Electronics industry
Paint and coatings industry
Petrochemicals
Laboratory technology

As accessories, we recommend:
B1WP wall bracket EAN 8021647399403

You will receive a filter housing including 2 pressure gauges and a housing wrench packaged in a box.
