Home / Products / DP BIG PS PM 10 Mono 1" Anti-Scale Water Softener
List Description
Settings TECHNICAL DATA
Information APPLICATIONS & INFO
Hotspot address Manufacturer (GPSR)

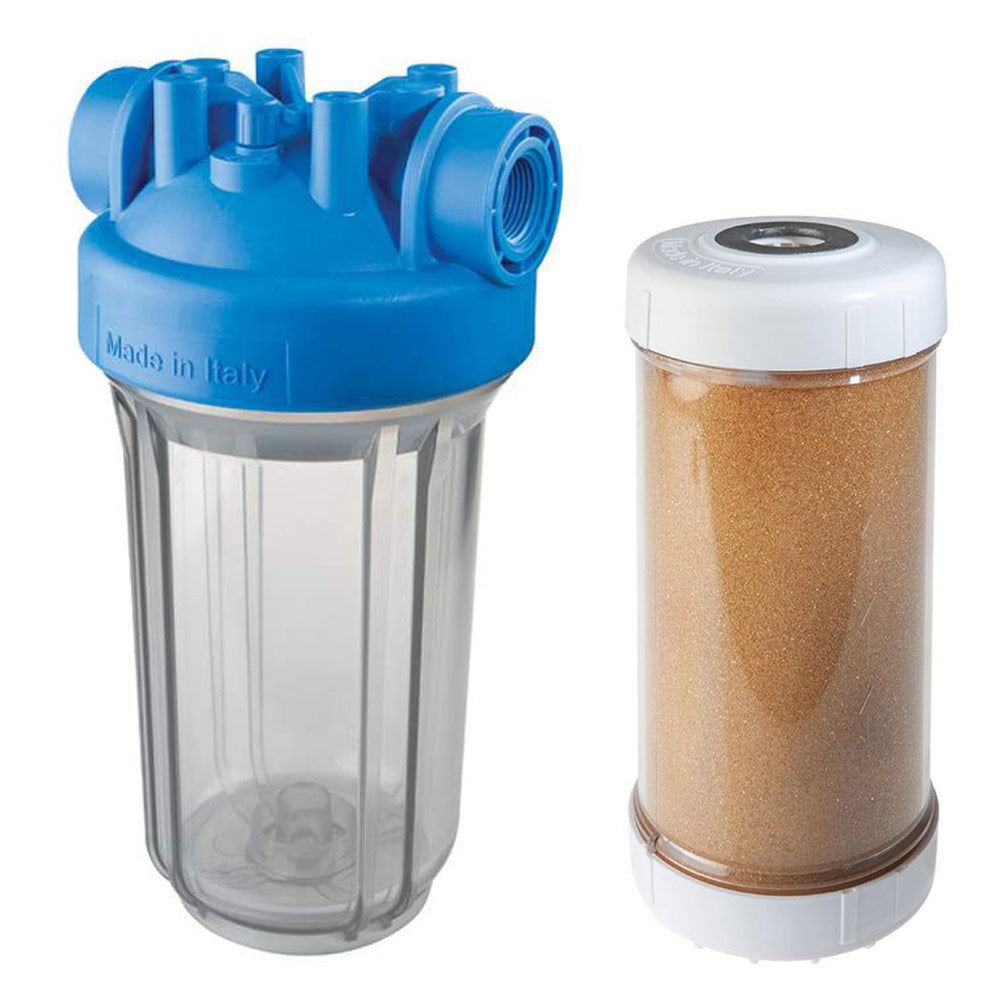

DP BIG PS PM 10 Mono 1" IN TS 10" inch heavy-duty filter housing made of polypropylene - IN/OUT 1"  with a QA CF 10 BIG SX TS anti-scale water softening cartridge

QA CF 10 BIG SX TS - anti-scale water softening
resin cartridge for water softening as a demineralization filter

Contains strongly cationic resin to reduce limescale.

The filter cartridge is made of non-toxic materials and is therefore suitable for drinking water production.


The filter can be used for:

For water production to fill aquarium water filters, aquarium filters, aquarium equipment, etc.

The filter cleans the water of limescale.

Filter cartridge with cationic resin to reduce limescale in medium water hardness.

Maximum temperature: 45 degrees Celsius
Storage time: approx. 6 months

Recommended flow rate: 80 l/h

Service life: approx. 6 months or approx. 10,000 l (depending on the water quality and flow rate) with medium water hardness up to max. 14 °dH)

The cartridge must be replaced when channels have formed in the resin and the water no longer flows through the filter medium.


10" inch BIG filter housing:
Height 360 Width 190 Depth 185 mm
1" inch connection with plastic threaded bushings
Maximum pressure: 8.3 bar (116 PSI)
Maximum temperature: 45 degrees Celsius

This BIG filter can be retrofitted with up to 2 pressure gauges - item no. 8021647002570 (1 piece) and drain tap - item no. 8021647220882

You will receive a BIG 10" filter housing with a QA CF 10 BIG SX TS anti-scale water softening cartridge packaged in a box.
