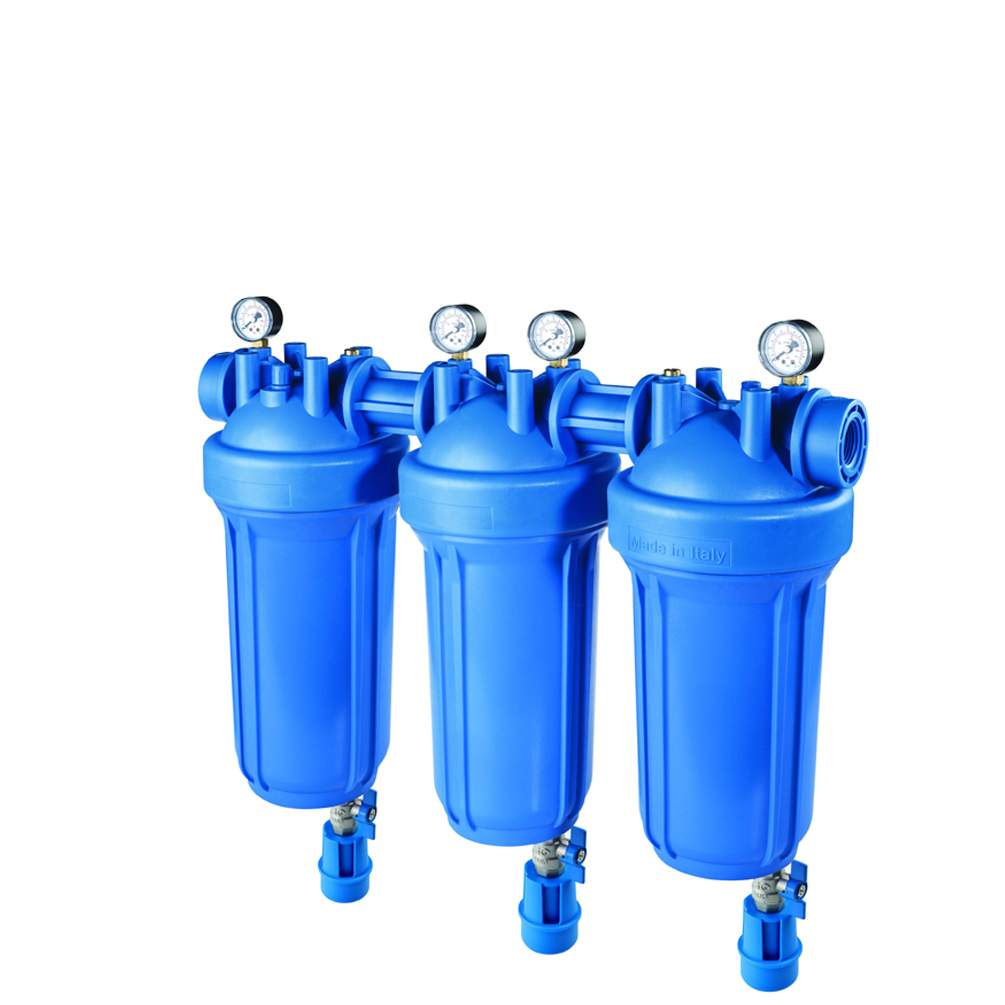

DP BIG S M 10 TRIO 1" IN AB High-Performance Filter Housing, 1" Thread, Pressure Gauge

DP BIG S M 10 TRIO 1" IN AB 10" inch TRIPLE high-performance filter housing made of polypropylene with 3 drain valves and 4 pressure gauges - IN/OUT 1"

You will receive a 10" inch TRIPLE high-performance filter housing made of polypropylene with 3 drain valves and 4 pressure gauges.

The matching filters can be ordered separately in the shop!

Use: For high-performance water filtration applications as well as industrial applications, filtration and treatment of drinking water, well water, domestic water, and wastewater; used to protect fittings, boilers, pumps, water tanks and other technical systems as well as pipelines.

Technical use of the water filters: Water purification, water softening, nitrate removal, iron removal, demineralization, filtering of oils and aromas, organic substances, insecticides, solvents, limescale and chlorine removal, etc.

10" inch BIG TRIPLE filter housing:
Height 560 Width 590 Depth 185 mm
1" inch connection with plastic threaded bushings
Maximum pressure: 8.3 Bar (120 PSI)
Maximum temperature: 45 degrees Celsius
Gauge: radial type, pressure range 0-12 Bar, 0-170 psi.

Suitable only for BIG 10" inch water filter cartridges.

Look for the matching filter cartridges in our shop and save on shipping costs!

Areas of application:

Water treatment
Well construction
Building services
Chemical industry
Pharmaceutical industry
Cosmetics industry
Surface treatment
Film and photo industry
Beverage and food industry
Electronics industry
Paint and coatings industry
Petrochemicals
Laboratory technology

We recommend the following accessory:
B1WP wall bracket EAN 8021647399403

You will receive a triple filter housing including housing wrench, 3 drain valves and 4 pressure gauges packed in a box.
