20 inches - 20" DOUBLE high-performance filter housing made of polypropylene with 2 drain valves and 3 pressure gauges, specially for high-performance applications in liquid filtration and industrial applications, IN/OUT 1"
Pre-filter
Appliance protection filter
Drinking water filter
Manufacturer / Importer Information:
Atlas Filtri s.r.l.
Via Pierobon 32
35010 Limena (Padova)
Italy

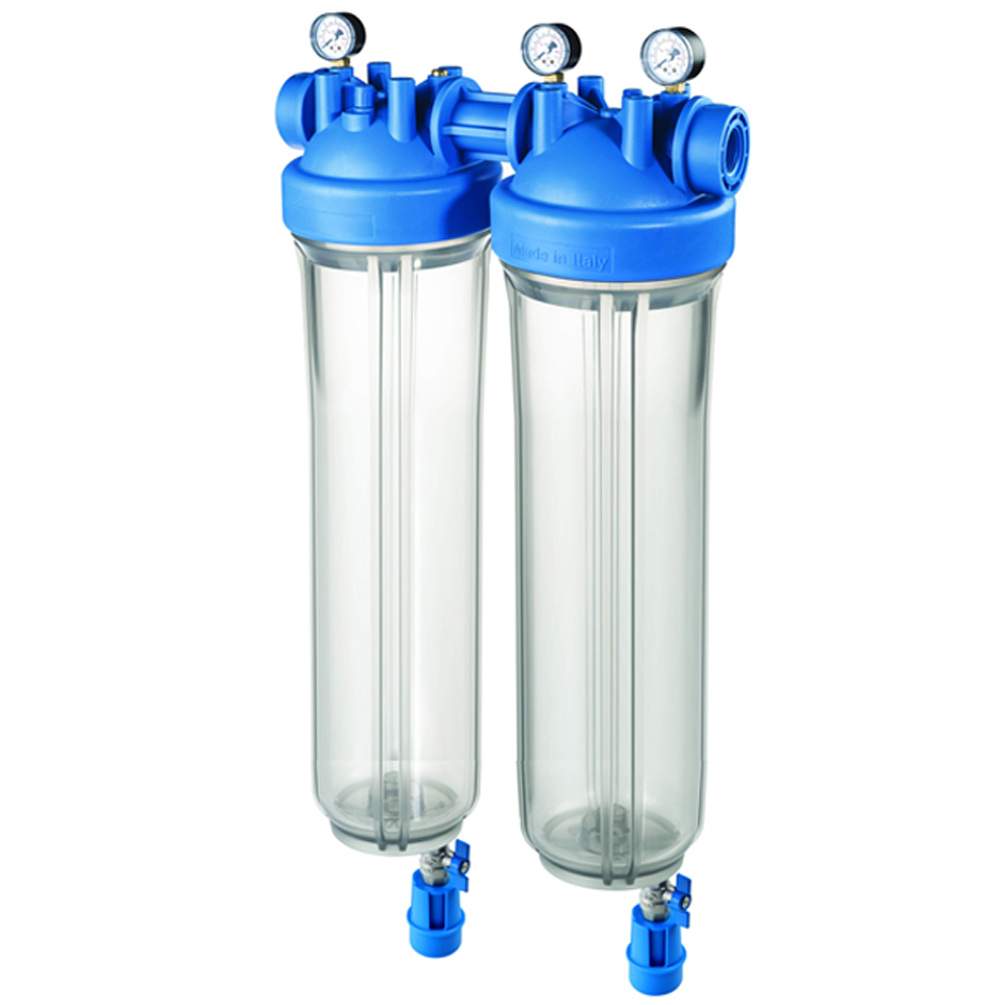

You will receive a 20" inch DOUBLE high-performance filter housing made of polypropylene with 2 drain taps and 3 pressure gauges.
The matching filters can be ordered separately in the shop!
Use: For high-performance water filtration applications as well as industrial applications, filtration and treatment of drinking water, well water, domestic water, wastewater, it serves to protect fittings, boilers, pumps, water tanks and other technical systems as well as the pipelines.
Technical use of the water filters: water purification, water softening, nitrate removal, iron removal, demineralization, filtering of oils and aromas, organic substances, insecticides, solvents, limescale and chlorine removal, etc.
20" inch BIG DOUBLE filter housing:
Height 825 Width 390 Depth 185 mm
1" inch connection with plastic threaded sockets
Maximum pressure: 8.3 Bar (120 PSI)
Maximum temperature: 45 degrees Celsius
Pressure gauge: radial type, pressure range 0-12 Bar, 0-170 psi.
Suitable only for BIG 20" inch water filter cartridges.
Find the matching filter cartridges in our shop and save on shipping costs!
You will receive a BIG DOUBLE filter housing 20" with 2 drain taps and 3 pressure gauges packaged in a box.
