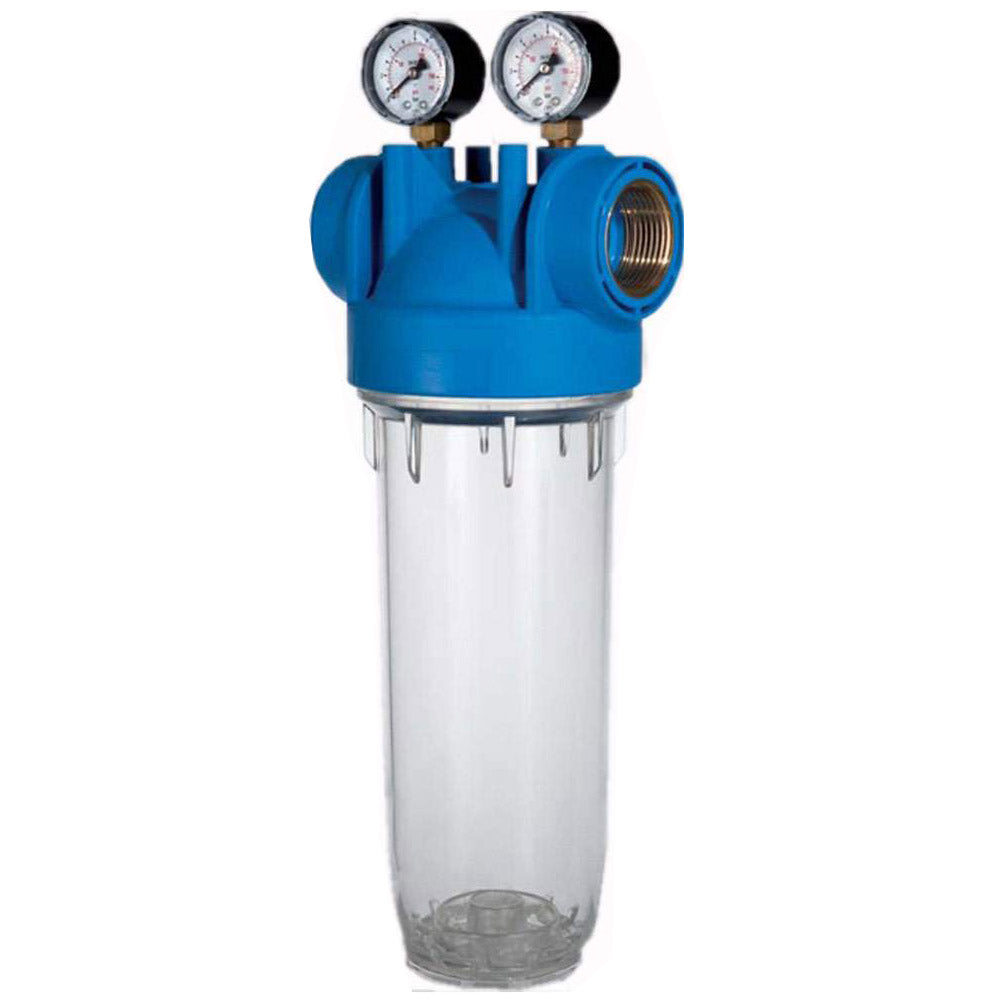

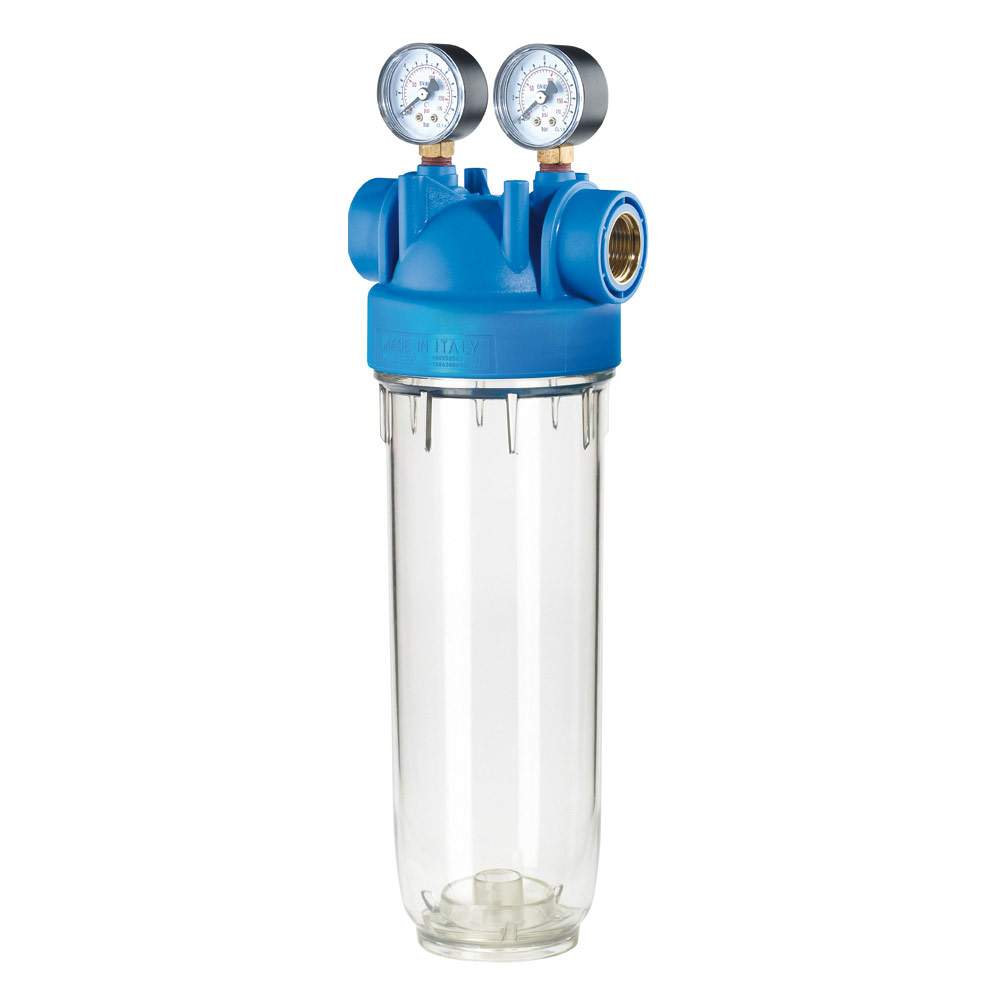

DP M 10 Mono OT TS - Single Filter Housing Manometer

DP M 10 Mono OT TS Single filter housing with pressure gauge made of polypropylene in various connection sizes

Compact and robust filter housing for filtering and treating drinking water, well water, household water, etc.

Suitable 10" filter cartridges can be found in our shop.

As accessories, we recommend:
W1 - wall bracket EAN 8021647102089
S1-DP - housing wrench EAN 8021647164094

Technical data

10" filter housing
Suitable for all standard 10" cartridges with flat gasket
Suitable for drinking water applications
Dimensions: 372 x 122 x 107 mm (HxWxD)
Operating pressure: max. 8.0 bar
Temperature range: 4 - 45 °C
Pressure gauge: radial, 0-12 bar

Material selection

Housing head: reinforced polypropylene
Housing bowl: PET
O-ring: EPDM
Bleed valve: stainless steel, EPDM
Connection thread: CW 617 N brass

Areas of application:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive a 10" filter housing in the selected connection size.
