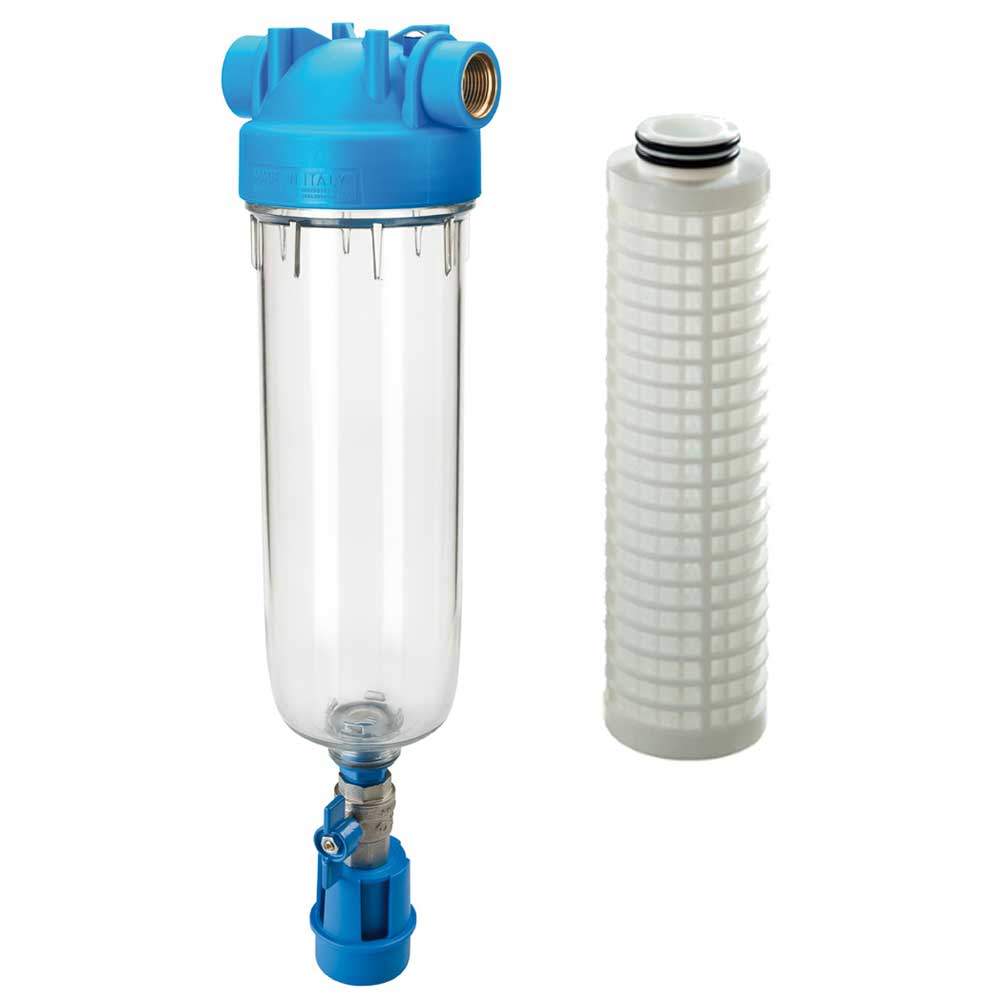

DP1S RL domestic waterworks sand filter pump pre-filter well water filter with 50 micron IN/OUT 1"

One of the best pre-filters on the market - filter your water without loss of pressure!

Recycling well water is an absolute must these days, clear water is a necessity for every household.

The pre-filter is extremely stable and is intended for filtering tap water or well water.

Protect your devices and pipes!

The filter is cleaned by the Self-cleaning/backwash lever.

The well water filter has one Drain funnel/backflow protection, to protect the drinking water supply.

It is installed directly on the house entrance pipe or behind the water pump is switched on.

Filtration and treatment at 50 microns.

Filtration of fine particles (sand, rust, scales, suspended particles)


10" inch filter housing:
Height: 465 mm Width: 122 mm Depth: 107 mm
IN / OUT connection made of brass in 1" inch
Maximum pressure: 8.0 bar
Maximum temperature: up to 45 CC

FILTRATION:
RL 10 BX 50 pre-filtration cartridge (Item No.: 8021647020369)
Pre-filtration cartridge 50 MIKRON
filters sand and other particles larger than 50 microns
- Lifespan: approx. 12-24 months
- 10" inch filter dimensions: 250 x 70 x 30 mm
- Max. flow rate at approx. 3 bar pressure / 2500l/h.


The filter system is originally packaged with 1 x filter housing, 1 x filter cartridge, 1 x wall bracket W1 and 1 x housing key.
