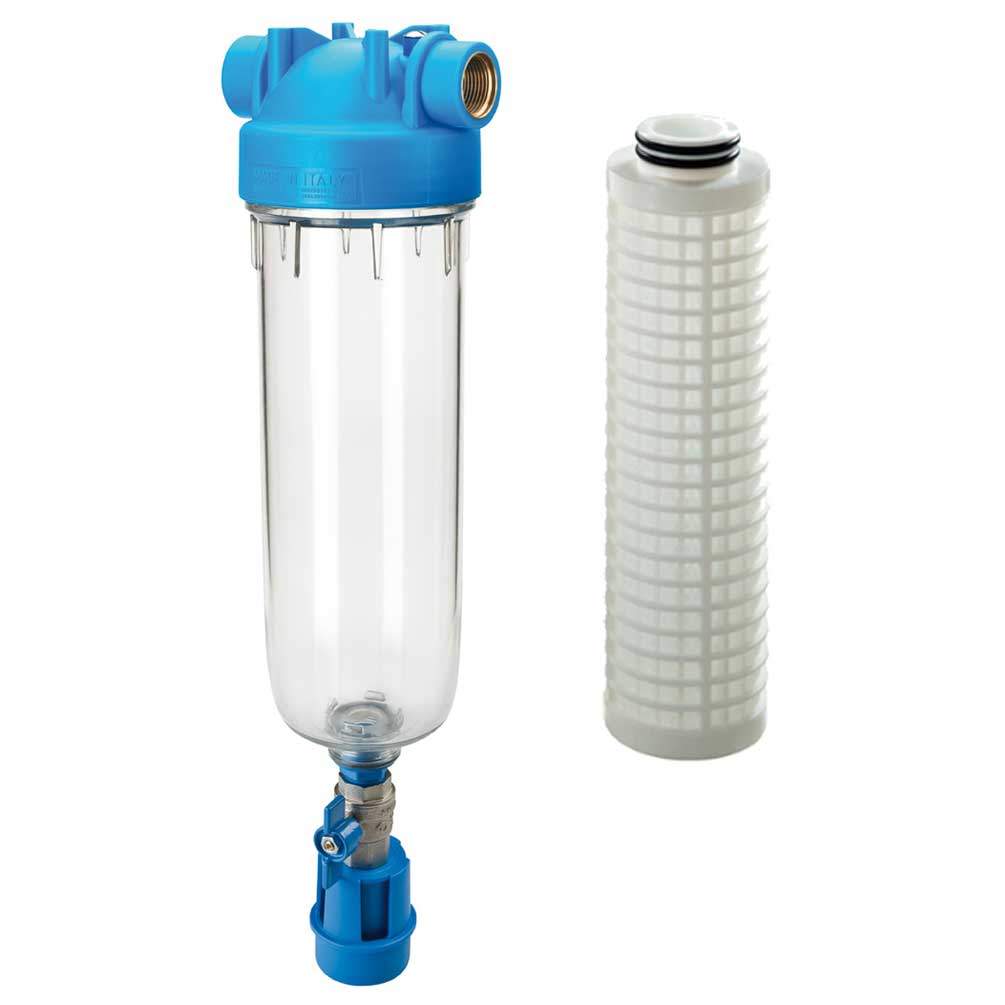

DP S 10 Mono 3/4" OT Filter Housing - RL 10 BX 50 mcr

DP 10 S RL House Water System Sand Filter Pump Pre-Filter Well Water Filter with 50 Micron

One of the best pre-filters on the market - Filter your water without pressure loss!

Recycling well water is an absolute must these days; clean water is a necessity for every household.

The pre-filter is extremely sturdy and designed for filtering tap water or well water.

Protect your equipment and piping!

Cleaning the filter is done using the self-cleaning lever.

The well water filter features a drain funnel/backflow preventer, to protect the drinking water supply.

It is connected directly at the house inlet pipe or behind the water pump.

Filtration and treatment with 50 Micron.

Filtration of fine particles (sand, rust, scale)

Use: Filtration and treatment of drinking water, well water, household water, dirty water; serves to protect fixtures, boiler, pumps, water tanks, washing machines and other technical systems as well as the piping.

10" filter housing:
Height: 465 mm  Width: 122 mm  Depth: 107 mm
IN / OUT brass connection in 3/4"
Maximum pressure: 8,0 Bar
Maximum temperature: up to 45 °C

FILTRATION:
RL 10 BX 50 pre-filtration cartridge (item no.: 8021647020369)
Pre-filtration cartridge 50 MICRON
filters sand and other particles larger than 50 micron
- Service life: approx. 12-24 months
- 10" filter dimensions: 250 x 70 x 30 mm
- Max. flow rate at approx. 3 Bar pressure / 2500l/h.

The filter system is originally packaged with 1 x filter housing, 1 x filter cartridge, 1 x W1 wall bracket and 1 x housing wrench.
