Technical data
10" filter housing
Suitable for all 10" BX filter cartridges with double O-ring seal
Suitable for drinking water applications
Dimensions: 465 x 122 x 107 mm (HxWxD)
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 45°C
Material selection
Housing head: reinforced polypropylene
Housing cup: PET
O-ring: EPDM
Vent valve: stainless steel, EPDM
Connection thread: CW 617 N brass
Pre-filter
Device protection filter
Sand filter
Drinking water filter

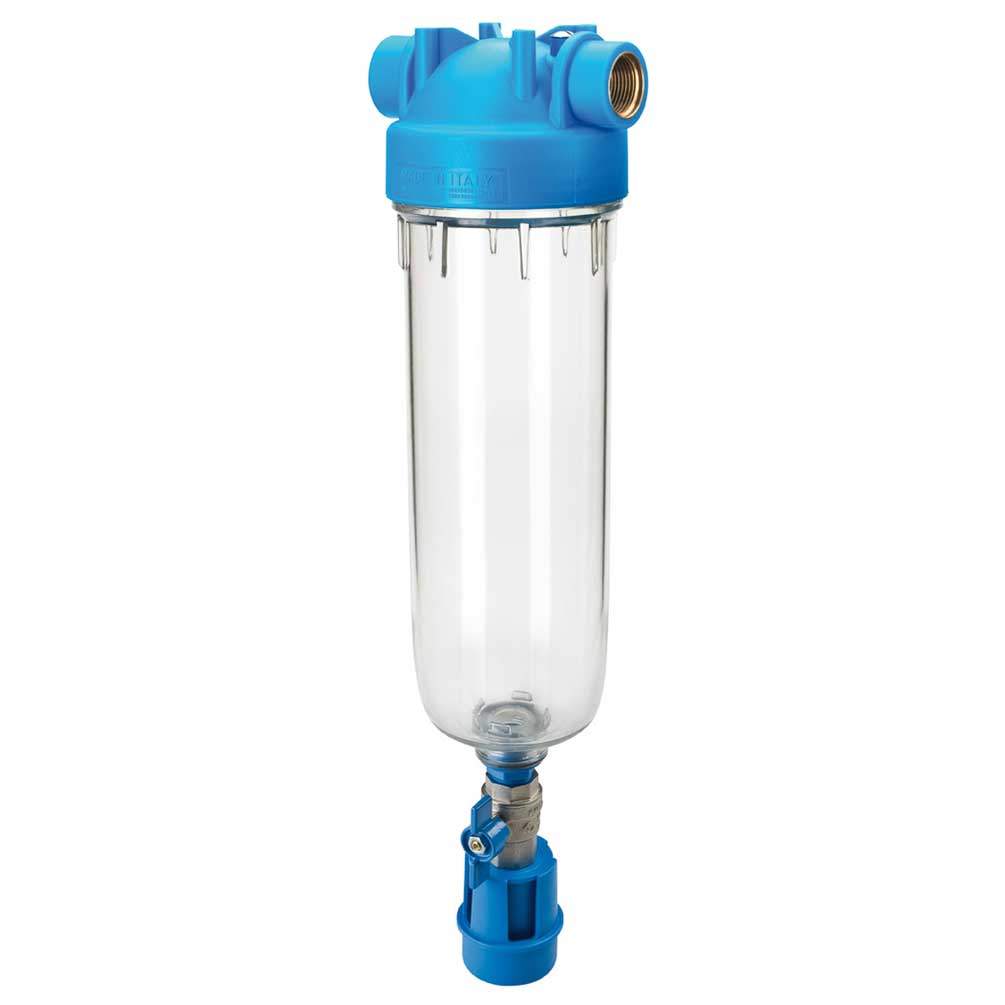

DP S 10 Mono OT TS Single filter housing with flushing function made of polypropylene in various connection sizes
Compact and robust filter housing for filtration and treatment of drinking water, well water, domestic water, etc.
You can find suitable 10"BX filter cartridges with double O-ring seal in our shop.
We recommend the following accessories:
W1 - Wall bracket EAN 8021647102089
S1-DP - Housing key EAN 8021647164094
You will receive a 10"filter housing in the selected connection size.
