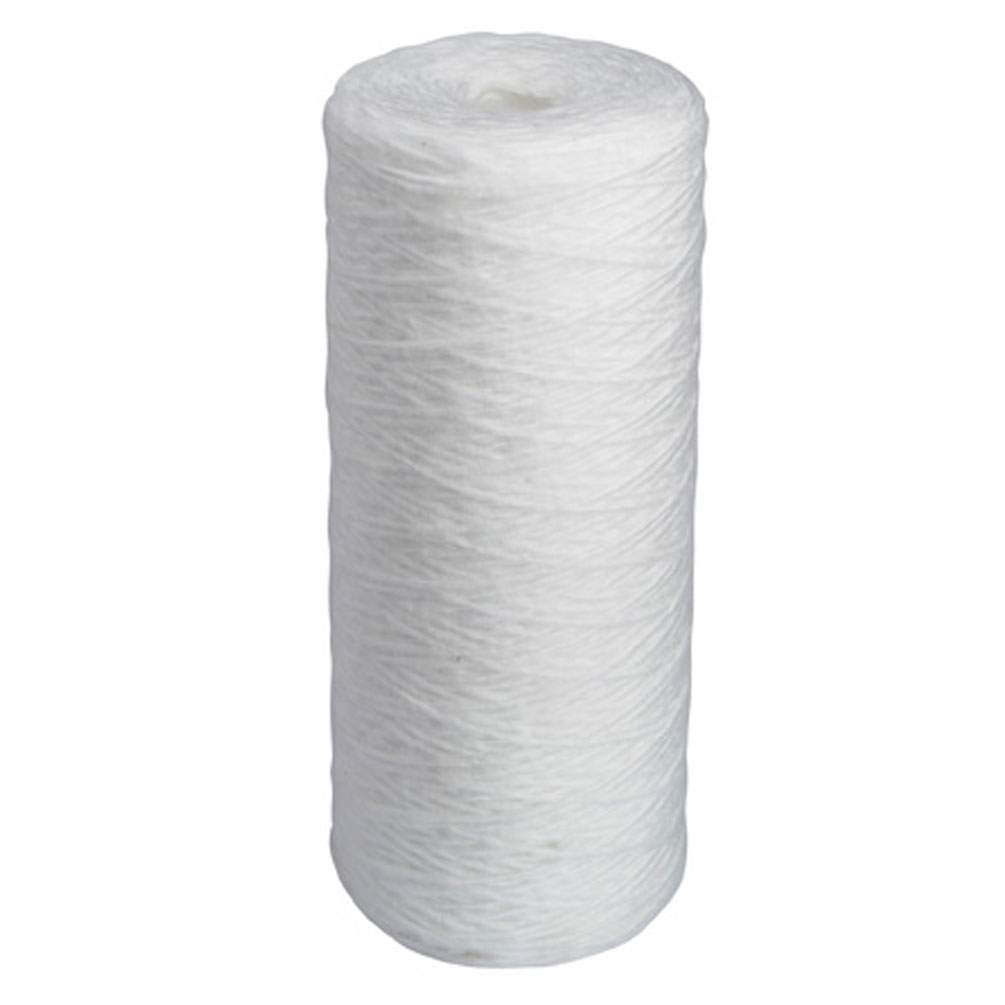

FA 10 Big SX - Sediment Wound Filter Polypropylene

FA 10 Big SX sediment wound filter made of polypropylene in various filter ratings

Wound filters are high-performance sediment filters for removing sand, dust, rust, and other particles. The particularly even winding of the polypropylene thread during production results in a compact cartridge with a large effective filter surface area.

Matching 10" Big filter housings can be found in our shop.

Technical data

10" Big filter cartridge
Suitable for all standard 10" Big housings
Suitable for drinking water applications
Dimensions: 250 x 110 x 28 mm (length x width x head opening)
Operating pressure: max. 8.0 bar
Temperature range: 4 - 45 °C
Filter material: wound polypropylene
Filter rating: 50 mcr - 1 mcr depending on selection
Recommended maximum flow rate: 2500 l/h
Service life: up to 6 months (depending on water quality and application)

Areas of application:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive one 10" Big filter cartridge in the selected filter rating.
