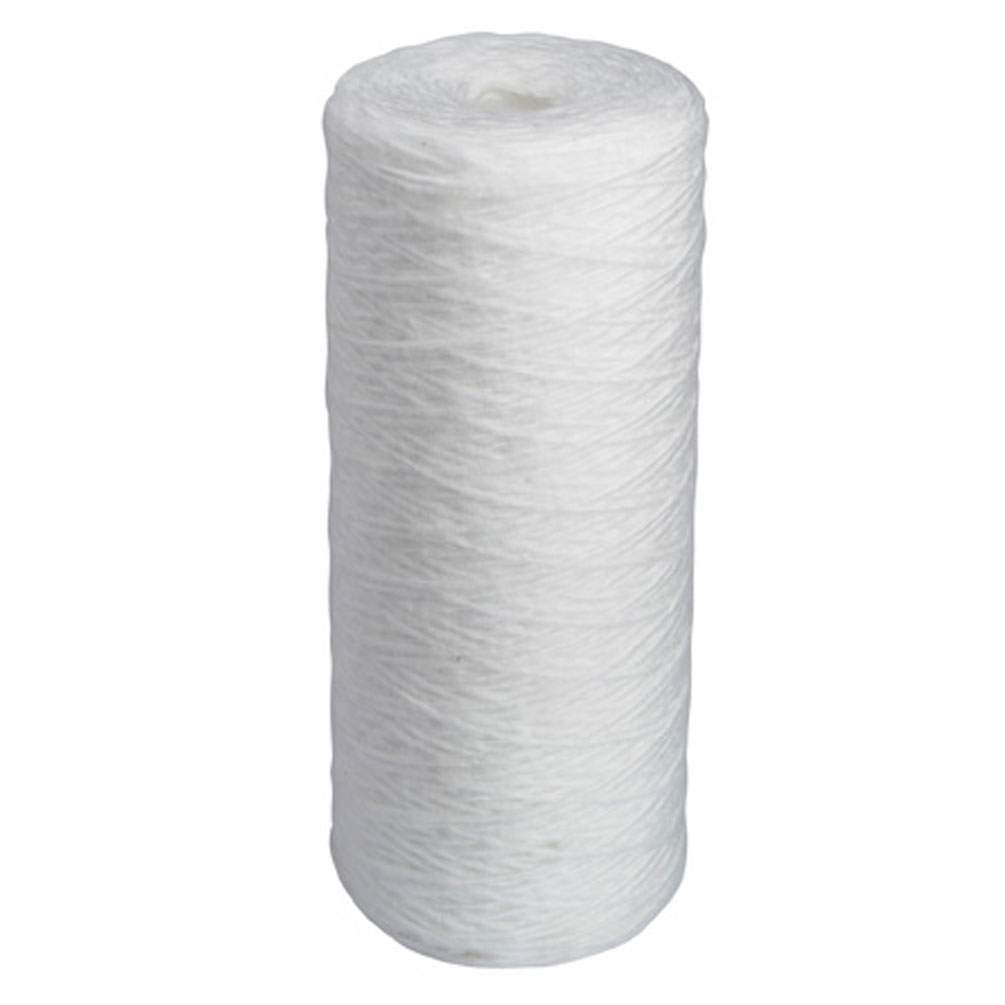

FA 10 BIG SX - SEDIMENT WRAP FILTER POLYPROPYLENE

FA 10 Big SX sediment wrap filter made of polypropylene in various filter ratings

Wrap filters are powerful sediment filters designed to remove sand, dust, rust and other particles. The particularly even winding of the polypropylene thread during production results in a compact cartridge with a large, effective filter surface.

You can find suitable 10" big filter housings in our shop.

Technical data

10" Big filter cartridge
Suitable for all standard 10" big cases
Suitable for drinking water applications
Dimensions: 250 x 110 x 28 mm (length x width x head opening)
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 45 C
Filter material: polypropylene wrapped
Filter fineness: 50 mcr - 1 mcr depending on selection
Recommended maximum flow rate: 2500L/h
Lifespan: up to 6 months (depending on water quality and application)

Areas of application:

Pre-filter
Device protection filter
Drinking water filter

You will receive a 10" big filter cartridge in the selected filter fineness.
