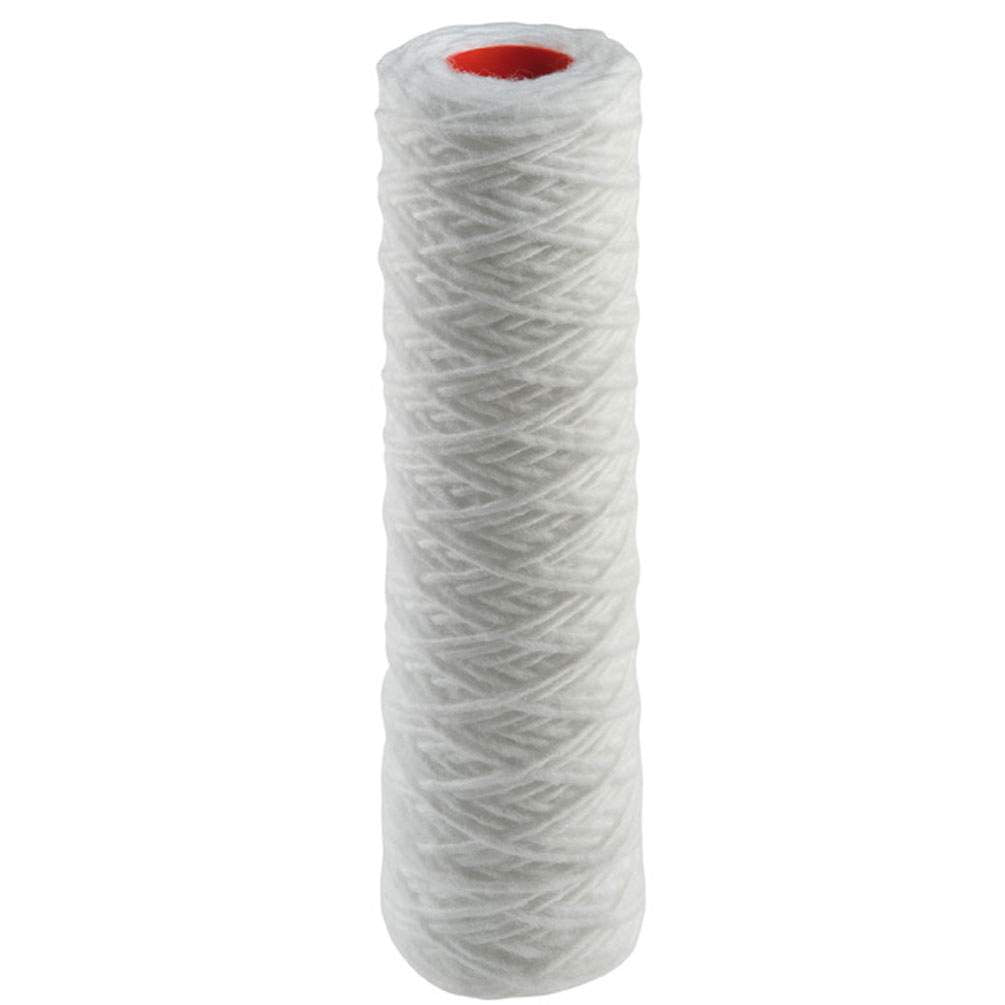

FA 10 HOT SX - SEDIMENT WRAP FILTER HOT WATER

FA 10 HOT SX sediment wrap filter for hot water applications up to 80 C in various filter ratingsn

Wrap filters are powerful sediment filters designed to remove sand, dust, rust and other particles. The particularly even winding of the polypropylene thread during production results in a compact cartridge with a large, effective filter surface.

You can find suitable 10" filter housings in our shop.

Technical data

10" filter cartridge
Suitable for all standard 10" housings
Suitable for drinking water applications
Dimensions: 250 x 61 x 28 mm (length x width x head opening)
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 80 C
Filter material: polypropylene wrapped
Filter fineness: 100 mcr - 5 mcr depending on selection
Recommended maximum flow rate: 2000L/h
Lifespan: up to 6 months (depending on water quality and application)

Areas of application:

Pre-filter
Device protection filter
Drinking water filter

You will receive a 10" filter cartridge in the selected filter fineness.
