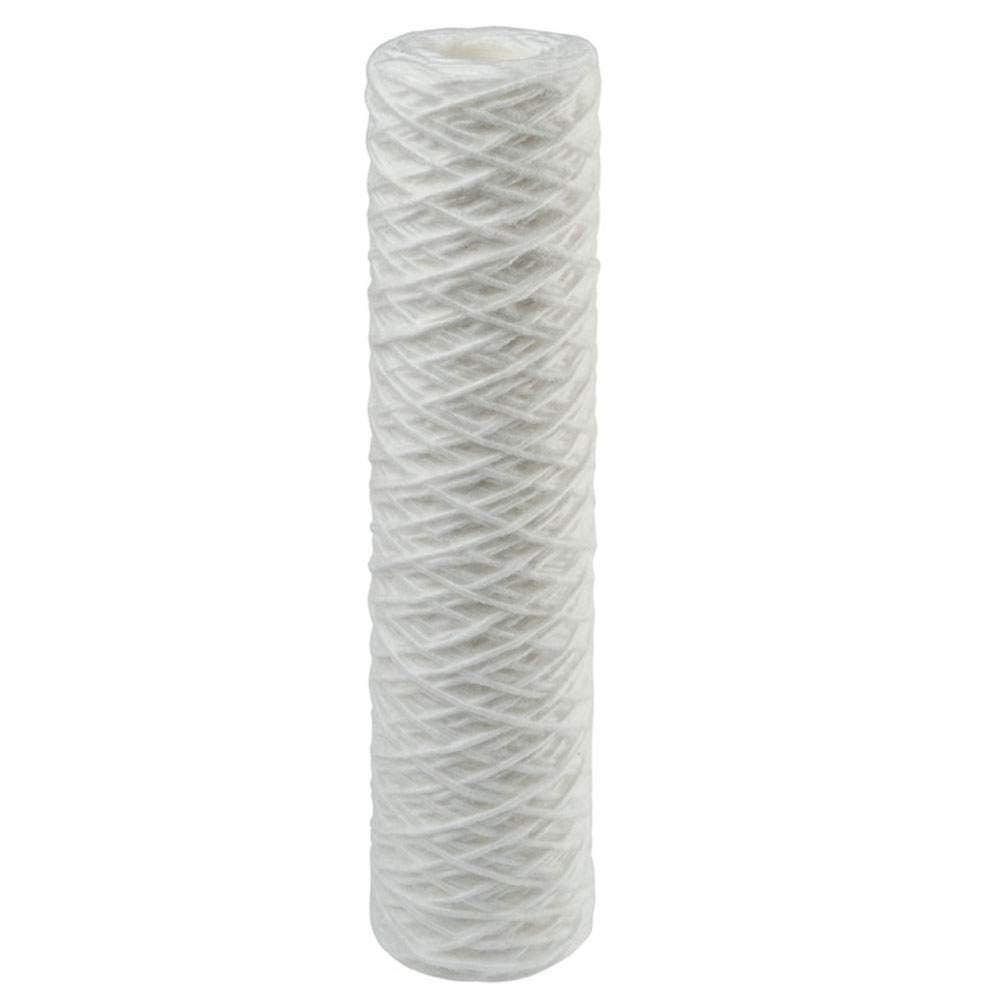

FA 10 SX - Sediment Wound Filter Polypropylene

FA 10 SX sediment wound filter made of polypropylene in various filtration ratings

Wound filters are high-performance sediment filters for removing sand, dust, rust, and other particles. The particularly even winding of the polypropylene thread in production results in a compact cartridge with a large effective filter surface.

You can find matching 10" filter housings in our shop.

Technical data

10" filter cartridge
Suitable for all standard 10" housings
Suitable for drinking water applications
Dimensions: 250 x 61 x 28 mm (length x width x head opening)
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 45 °C
Filter material: wound polypropylene
Filtration rating: 50 mcr - 1 mcr depending on selection
Recommended maximum flow rate: 2000 l/h
Service life: up to 6 months (depending on water quality and application)

Areas of application

Pre-filter
Appliance protection filter
Drinking water filter

You will receive one 10" filter cartridge in the selected filtration rating.
