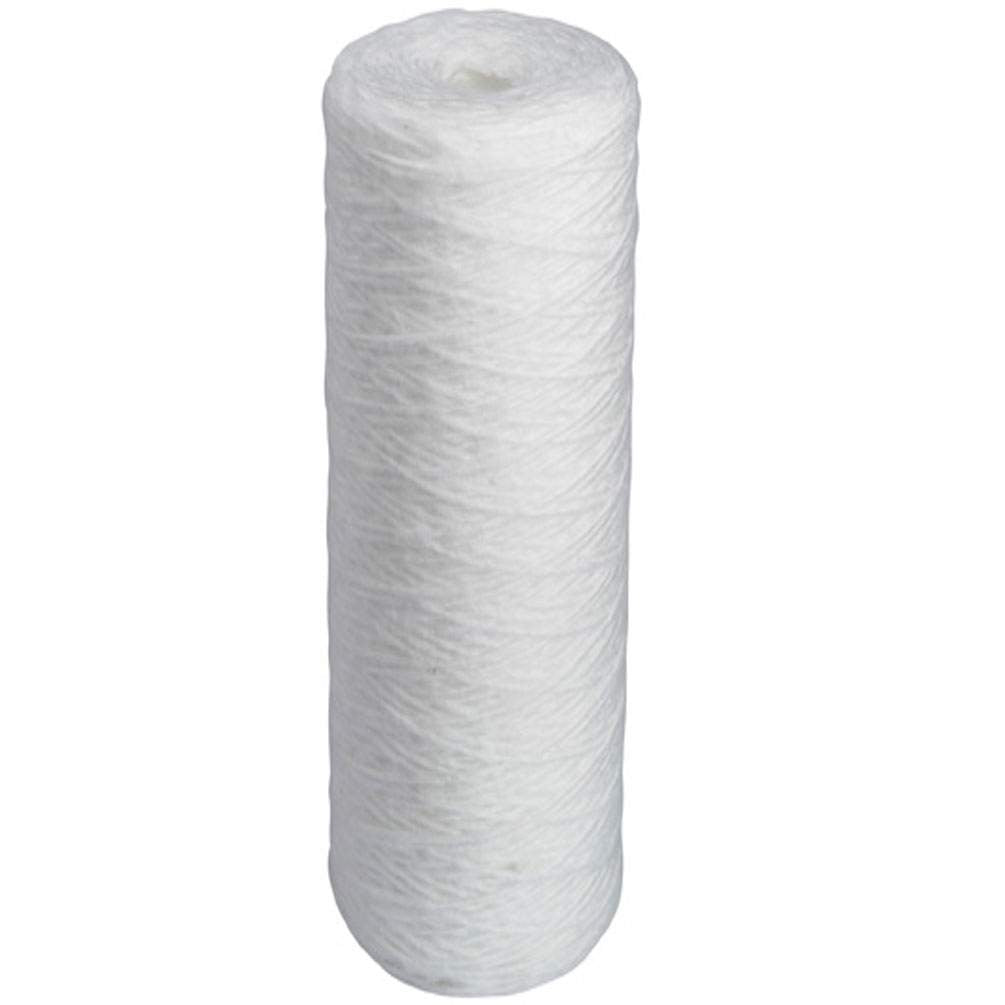

FA 20 Big SX - Sediment Wound Filter Polypropylene

FA 20 Big SX sediment wound filter made of polypropylene in various filtration ratings

Wound filters are high-performance sediment filters for removing sand, dust, rust, and other particles. The particularly even winding of the polypropylene fiber during production results in a compact cartridge with a large effective filter surface area.

Matching 20" Big filter housings can be found in our shop.

Technical data

10" Big filter cartridge
Suitable for all standard 20" Big housings
Suitable for drinking water applications
Dimensions: 508 x 110 x 28 mm (length x width x head opening)
Operating pressure: max. 8.0 bar
Temperature range: 4 - 45 °C
Filter material: wound polypropylene
Filtration rating: 50 mcr - 1 mcr depending on selection
Recommended maximum flow rate: 4000 l/h
Service life: up to 6 months (depending on water quality and application)

Areas of application:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive one 20" Big filter cartridge in the selected filtration rating.
