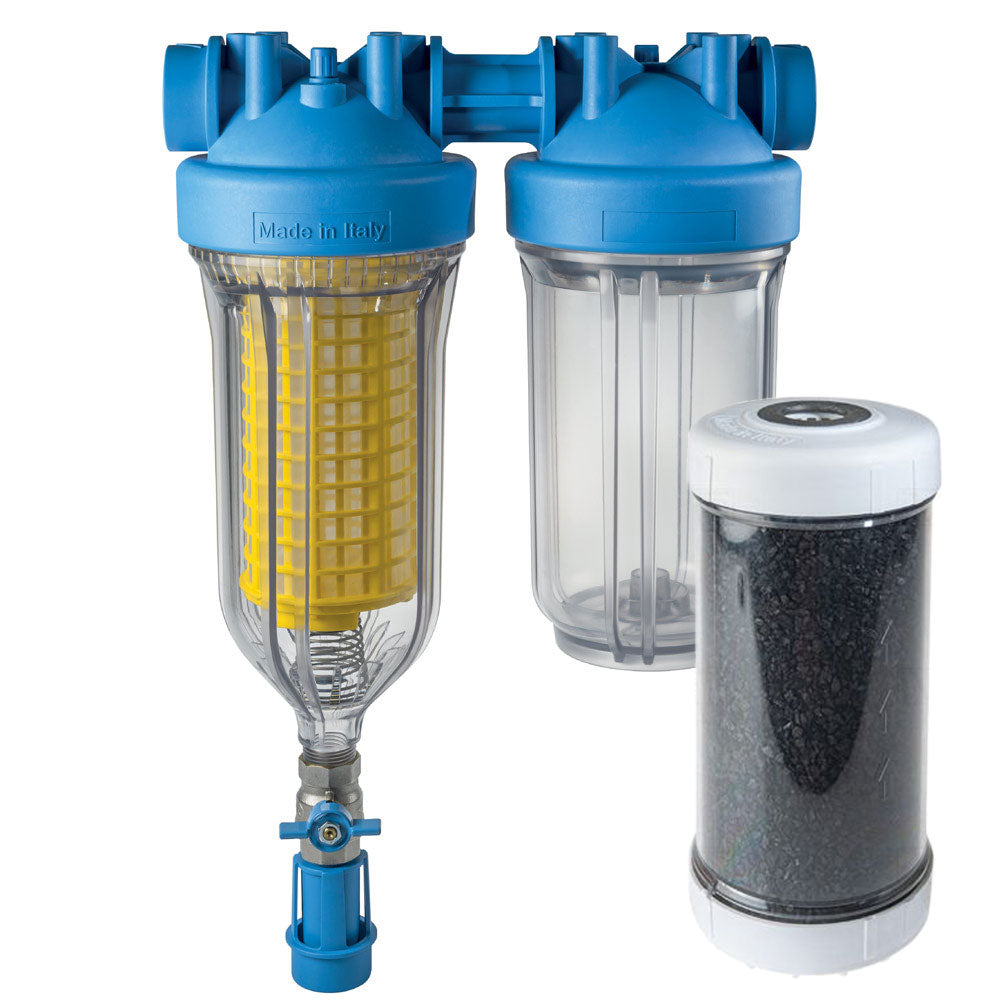

HYDRA BIG 10 DUO Rainmaster 1” - Rainwater Filter
EAN: 4260303252650
€249,75
Tax included. Shipping calculated at checkout.
Technical data
10" HYDRA BIG DUO filter housing
IN / OUT connection with plastic internal thread in 1" inch Dimensions: 515 x 390 x 185 mm (H x W x D)
Operating pressure: maximum 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all commonly available 10" BIG cartridges with flat gasket
Suitable for drinking water applications
Material selection
Housing head: reinforced polypropylene
Housing bowl: PET (transparent) or reinforced polypropylene (blue)
O-ring: EPDM
Vent valve: polypropylene, EPDM
Pre-filter
Rainwater filter
Device protection filter
Drinking water filter
Manufacturer / Importer Information:
purway Crystal Group®
BONGARTZ GMBH
CEO Claudia Bongartz
Am Königshof 63a
27478 Cuxhaven
Germany
Email: info@purway.de
This filter system treats water in high concentration cost-effectively and filters out contaminants and fine particles from the water.
This works through the self-cleaning/backwash pre-filter with 50 micron and a final water treatment with the LA CARBON cartridge.
The LA 10 BIG SX TS - Activated Carbon Granulate Water Filter consists of compressed activated carbon
and filters contaminants from the water such as chlorine, organic
contaminants, light hydrocarbons, solvents, pesticides,
insecticides, oils and aromas, taste impairments,
and odor impairments.
Usage, Scope, Dimensions:
The 2-stage water treatment system is designed to be very space-saving and easy to install.
The HYDRA DUO water filter features a drain funnel/backflow protection to protect the drinking water supply.
The HYDRA DUO household water filter is used for filtration and treatment of rainwater, drinking water, household water, and wastewater, protecting fittings, pumps, water tanks, and other technical systems as well as pipelines.
Technical Data
10" HYDRA BIG DUO Filter Housing
Dimensions: 515 x 390 x 185 mm (HxWxD)
Operating pressure: maximum 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all common 10" BIG cartridges with flat seal
Suitable for drinking water applications
The individual filtration stages:
1 x RLH 50mcr HYDRA BIG - Sediment Filter Polyester Mesh
Self-cleaning pre-filtration cartridge – RLH: 50 MIC
filters sand and other particles larger than 50 microns
Lifespan: approx. 12-24 months (depending on water quality and flow rate)
1 x LA 10 BIG SX TS - Activated Carbon Granulate Water Filter
filters chlorine, organic contaminants, light hydrocarbons, solvents, pesticides, oils and aromas, taste impairments, odor impairments.
Lifespan: approx. 6 months (depending on water quality and flow rate)
The filter system is original packaged, including filter housing, a housing key, a wall bracket, screws, and two filter cartridges.
