HYDRA BIG 10 TRIO Scalemaster 1" - Anti-Limescale Water Filter

HYDRA BIG 10 TRIO Scalemaster 1” - Anti-Scale Water Filter

HIGH-PERFORMANCE BIG THREE-STAGE filter housing with a one-piece head

An anti-scale water filter is the ideal solution for effectively protecting your home from scale. These filters prevent scale buildup and provide soft, scale-free water that extends the service life of your appliances and is gentler on your skin and hair.

This works through the Self-Cleaning/Backwash pre-filter with 90 micron, a CPP 10 BIG ScaleArmor™ - 5 mcr anti-scale filter cartridge and a final water treatment stage with the CB CARBON BLOCK cartridge.

The CB - VOC 10 BIG 5 mcr - activated carbon block is made of compressed activated carbon and filters contaminants from the water such as chlorine, organic contaminants, light hydrocarbons, solvents, pesticides, insecticides, oils and aromas, taste impairments, odor impairments, fine particles (rust, flakes of scale, sand, flakes) and suspended matter.

The filter purifies the water to 5 microns.



Use, scope, dimensions:

The 3-stage water treatment system is designed to save a lot of space and is easy to install.

The HYDRA TRIO home water filter features a drain funnel/backflow preventer to protect the drinking water supply.

The HYDRA TRIO is used for filtration and treatment of drinking water,  household water and wastewater, and serves to protect fittings, pumps, water tanks and other technical systems as well as the pipework.

Technical data:

10" HYDRA BIG TRIO filter housing
Dimensions: 515 x 590 x 185 mm (HxWxD)
Operating pressure: maximum 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all commercially available 10" BIG cartridges with flat gasket
Suitable for drinking water applications



The individual filtration stages:

1 x RLH 90mcr HYDRA BIG - sediment filter polyester mesh
Self-cleaning prefiltration cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Service life: approx. 12-24 months (depending on water quality and flow rate)


1 x CPP 10 BIG ScaleArmor 5 mcr - anti-scale filter

Prevents scale buildup, reduces deposits, protects against corrosion, retains sediment: CPP ScaleArmor™ is the perfect solution for municipal water.

CPP 10 inch BIG ScaleArmor™ is the cartridge of the ScaleArmor™ Blues system and perfectly fulfills the dual task of preventing limescale deposits and removing sediment with a filtration rating of 5 microns. Its effectiveness is ensured by the structure and materials of the cartridge: a meltblown polypropylene filter septum and a core filled with the unique ScaleArmor™ anti-scale material.
Service life: approx. 6 months (depending on water quality and flow rate)

1 x CB - VOC 10 BIG 5 mcr - activated carbon block
filters chlorine, org. contaminants, light hydrocarbons, solvents, pesticides, oils and aromas, taste impairments, odor impairments, fine particles (rust, flakes of scale, sand, flakes) and suspended matter.
Service life: approx. 6 months (depending on water quality and flow rate)

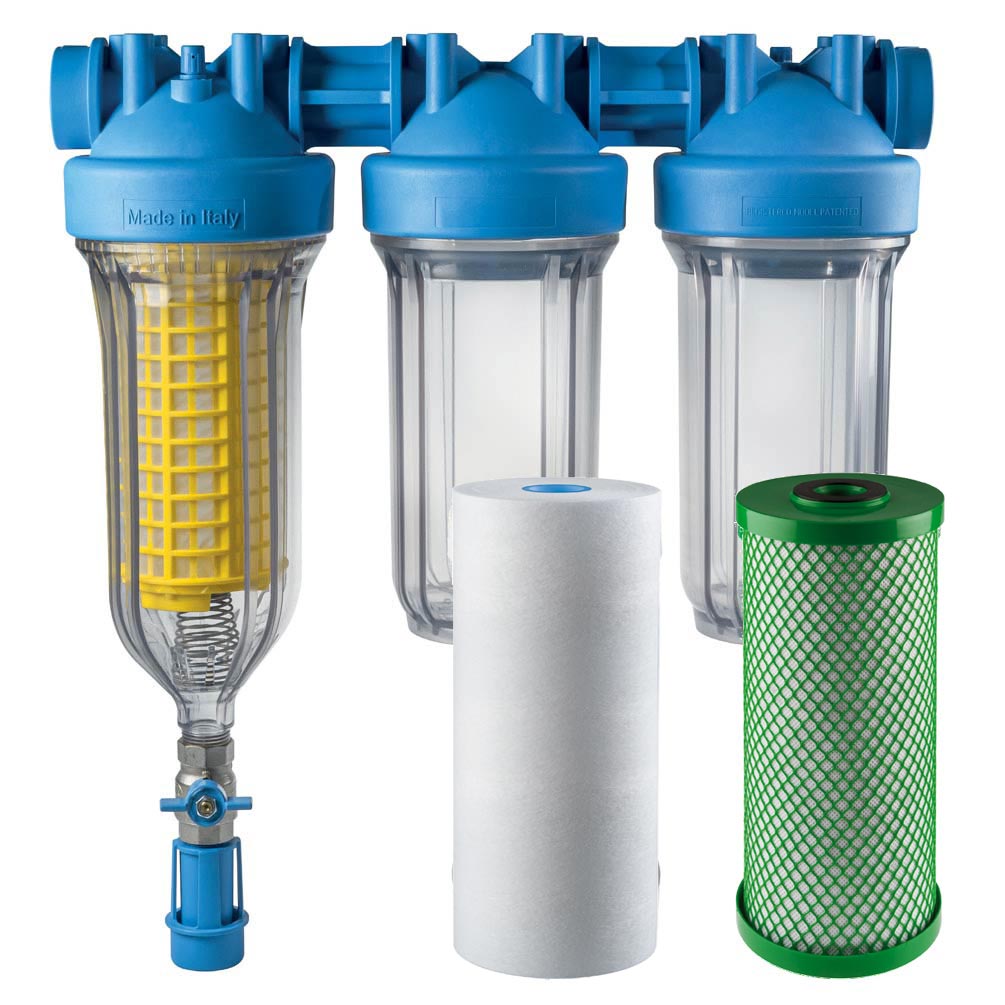

The filter system is originally packaged and includes a filter housing, a housing wrench, a wall bracket, screws and three filter cartridges.
