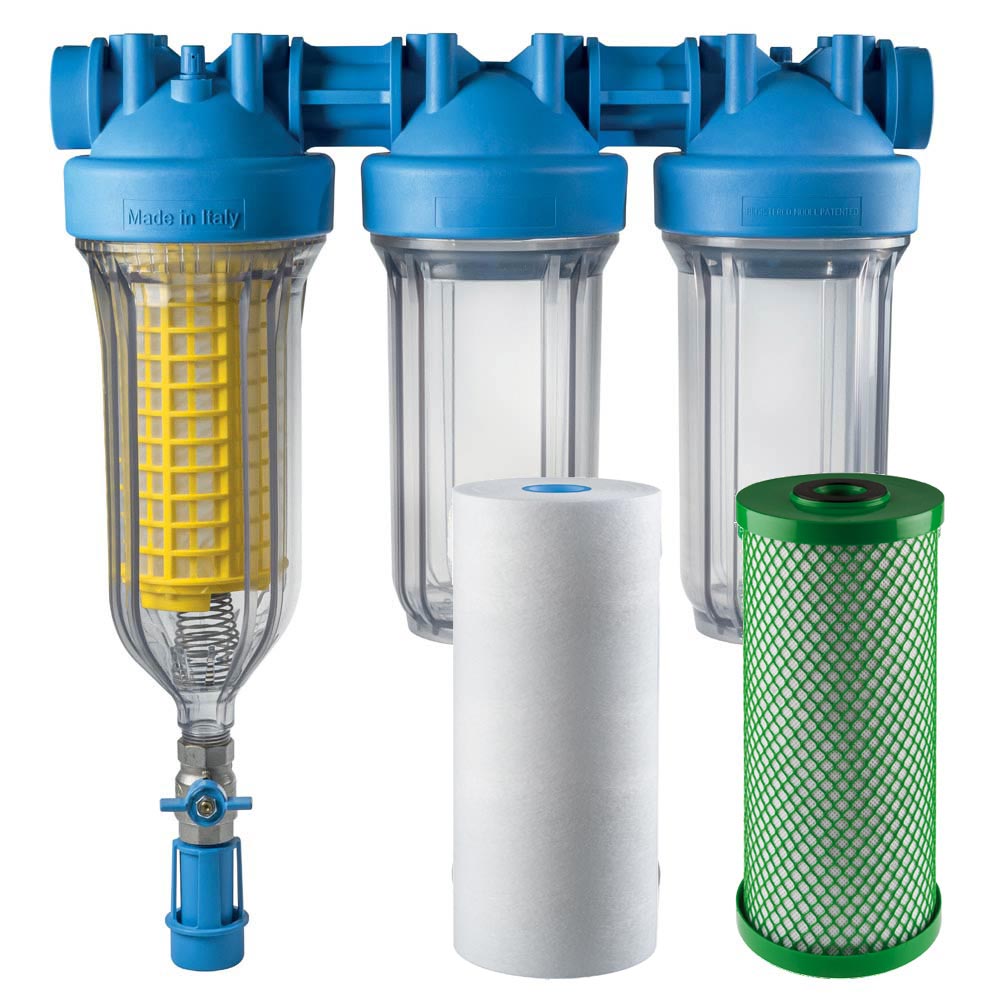

HYDRA BIG 10 TRIO Scalemaster 1" - Anti-Limescale Water Filter

HYDRA BIG 10 TRIO Scalemaster 1” - Anti-Scale Water Filter

HIGH-PERFORMANCE BIG TRIPLE filter housing with a one-piece head

A scale water filter is the ideal solution to effectively protect your home from limescale. These filters prevent limescale buildup and provide soft, scale-free water that extends the service life of your appliances and is gentle on your skin and hair.

This works through the self-cleaning/backwash pre-filter with 90 micron, a CPP 10 BIG ScaleArmor™ - 5 mcr Anti-Scale Filter Cartridge and a final water treatment stage with the CB CARBON BLOCK cartridge.

The CB - VOC 10 BIG 5 mcr - Activated Carbon Block is made of pressed activated carbon and filters contaminants from the water such as chlorine, organic contaminants, light hydrocarbons, solvents, pesticides, insecticides, oils and odors, taste impairments, odor impairments, fine particles (rust, limescale flakes, sand, flakes) and suspended solids.

The filter purifies the water to 5 microns.



Use, scope, dimensions:

The 3-stage water treatment system is designed to save space and is easy to install.

The HYDRA TRIO whole-house water filter features a drain funnel/backflow preventer to protect the potable water supply.

The HYDRA TRIO is used for filtering and treating drinking water,  household water and wastewater, and serves to protect fittings, pumps, water tanks and other technical installations as well as piping.

Technical data:

10" HYDRA BIG TRIO filter housing
Dimensions: 515 x 590 x 185 mm (HxWxD)
Operating pressure: max. 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all standard 10" BIG cartridges with flat gasket
Suitable for drinking water applications



The individual filtration stages:

1 x RLH 90mcr HYDRA BIG - Sediment Filter Polyesternet
Self-cleaning pre-filtration cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Service life: approx. 12-24 months (depending on water quality and flow rate)


1 x CPP 10 BIG ScaleArmor 5 mcr - Anti-Scale Filter

Prevents scale buildup, reduces deposits, protects against corrosion, retains sediment: CPP ScaleArmor™ is the perfect solution for tap water.

CPP 10 inch BIG ScaleArmor™ is the cartridge of the ScaleArmor™ Blue system and perfectly performs the dual task of preventing limescale deposits and removing sediment with a filtration rating of 5 microns. Its effectiveness is ensured by the structure and materials of the cartridge: a meltblown filter septum made of polypropylene and a core filled with the unique ScaleArmor™ anti-scale material.
Service life: approx. 6 months (depending on water quality and flow rate)

1 x CB - VOC 10 BIG 5 mcr - Activated Carbon Block
filters chlorine, organic contaminants, light hydrocarbons, solvents, pesticides, oils and odors, taste impairments, odor impairments, fine particles (rust, limescale flakes, sand, flakes) and suspended solids.
Service life: approx. 6 months (depending on water quality and flow rate)


The filter system is original packaged, with filter housing, a housing wrench, a wall bracket, screws and three filter cartridges.
