HYDRA BIG Ironmaster 1” - 20 Zoll Iron Filter Well Water Filter House Water Filter

HYDRA BIG Ironmaster 1” - 20 inch Well Water Filter House Water Filter Iron Water Filter

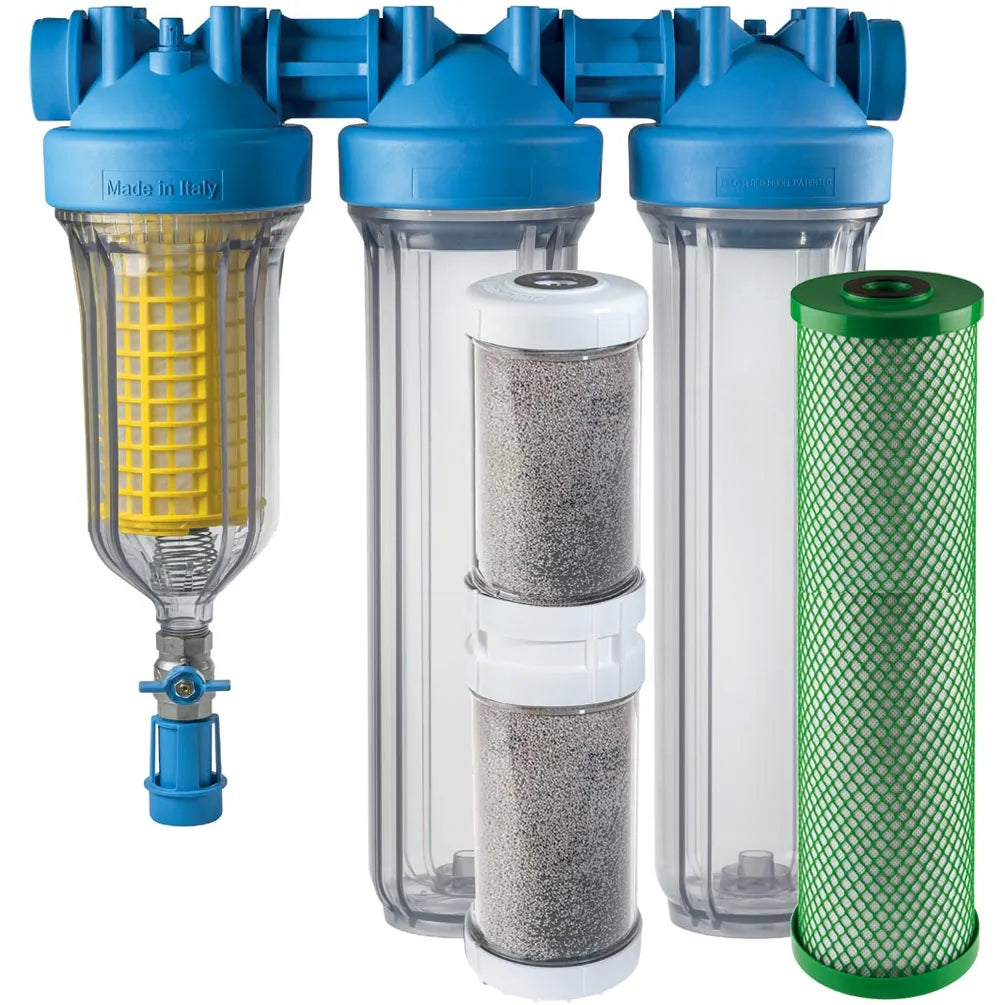

High-performance BIG triple filter housing

Robust design – efficient water treatment

The powerful 3-stage filter housing ensures reliable, long-lasting water treatment. The system combines state-of-the-art filter technologies for clean, odorless, and tasteless water – ideal for drinking water, well water, and household water applications.

The iron filter cartridge reduces the iron concentration, hydrogen sulfide content, and metallic taste and odor of the water, and helps normalize the water's pH value. The filter does this by oxidizing hydrogen sulfide, converting Fe² to Fe³.

The activated carbon filter is made of pressed activated carbon and filters contaminants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and aromas, taste impairments, odor impairments, fine particles, and suspended matter.

Water with too high an iron content is the main cause of wear in industrial systems and household appliances due to deposits of so-called "boiler scale". Iron salts damage textiles washed in such water and irritate the skin. In addition, excessive iron content in the water leads to the formation of rust stains on sanitary fixtures.

This innovative backwash system with spring-loaded filter cartridge. When the flush valve is opened, the pressure drop pulls the cartridge downward and cleans it on the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

Includes hose connector and drain funnel with backflow protection according to UNI EN 1717-11/2002

Reduction of:

Iron up to a max. value of 4.0 mg/l
Manganese up to a max. value of 0.1 mg/l
Sulfite up to 0.12 mg/l
Oxide up to 7.0mg/l
Chloride up to 6.8 mg/l
Silicates up to 45.0 mg/l

The filter cleans the water to 10 microns.



Use, scope, dimensions:

The 3-stage water treatment system is designed to save space and is easy to install.

The HYDRA TRIO well water filter features a drain funnel/backflow protection to protect the drinking water supply.

The HYDRA TRIO is used for filtration and treatment of drinking water, well water, household water, and wastewater; it protects fittings, pumps, water tanks, and other technical systems as well as the pipework.

Technical data

20" HYDRA BIG TRIO filter housing
Dimensions: 647 x 590 x 185 mm (HxWxD)
Operating pressure: max. 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all standard 20" BIG cartridges with flat seal
Suitable for drinking water applications



The individual filtration stages:

1 x RLH 90mcr HYDRA BIG - Sediment Filter Polyester Mesh
Self-cleaning pre-filtration cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Service life: approx. 12-24 months (depending on water quality and flow rate)


1 x QA PRL 20 BIG SX TS - Iron filter cartridge
reduces the iron concentration, hydrogen sulfide content, metallic taste, and odor of the water, and helps normalize the water pH value.
Service life: approx. 3-6 months  (depending on iron levels (max. 4 mg/l) and manganese levels (max. 0.1 mg/l) and the flow rate)

Note: With the QA PRL 20 BIG SX TS deironing filters it may happen that granulate dust, caused by transport, is released at first. Let the water run until it is clear. Please also note the maximum values. If necessary, carry out a water analysis before installing the filter to determine the iron content of the water.


1 x CTO 20 BIG 10 mcr - Activated Carbon Block BIG
filters chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, oils and aromas, taste impairments, odor impairments, fine particles (rust, limescale flakes, sand, flakes) and suspended matter.
Service life: approx. 6 months (depending on water quality and flow rate)


The filter system is supplied in its original packaging, with filter housing, a housing wrench, a wall bracket, screws, and three filter cartridges.
