HYDRA BIG TRIO Rainmaster 1” - 20 Zoll Household Water Filter Well Water Filter

HYDRA BIG TRIO Rainmaster 1” - 20 inch house water filter

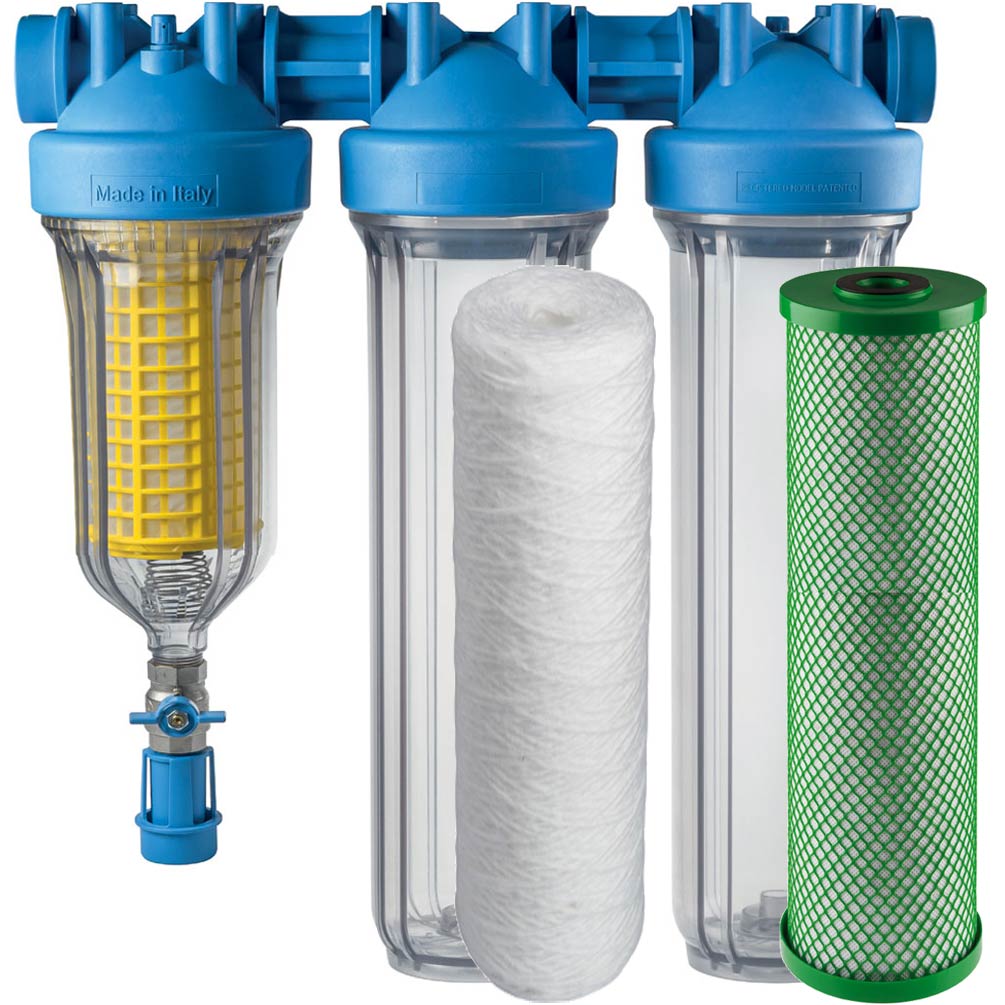

HIGH-PERFORMANCE BIG triple-filter housing with one-piece head

This filter system treats water at high capacity at low cost and filters out pollutants as well as fine particles from the water.

This works through the Self-Cleaning/Backwash pre-filter with 90 micron, an FA pre-filter with 25 micron, and a final water treatment stage with the CB CARBON cartridge.

The CTO 20 BIG 10 mcr - activated carbon block is made of compressed activated carbon and filters pollutants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and aromas, taste impairments, odor impairments, fine particles (rust, limescale flakes, sand, flakes) and suspended matter.

The filter purifies the water to 10 microns.



Use, scope, dimensions:

The 3-stage water treatment system is designed to save space and is easy to install.

The HYDRA TRIO house water filter includes a drain funnel/backflow preventer to protect the drinking water supply.

The HYDRA TRIO house water filter is used for filtration and treatment of drinking water,  house water and waste water; it serves to protect fixtures, pumps, water tanks and other technical systems as well as the pipework.

Technical data

20" HYDRA BIG TRIO filter housing
Dimensions: 647 x 590 x 185 mm (HxWxD)
Operating pressure: max. 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all standard 10" BIG cartridges with flat gasket
Suitable for drinking water applications



The individual filtration stages:

1 x RLH 90mcr HYDRA BIG - sediment filter polyester mesh
Self-cleaning pre-filtration cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Service life: approx. 12-24 months (depending on water quality and flow rate)


1 x FA 20 Big SX 25 micron - sediment wound filter polypropylene

Wound filters are high-performance sediment filters for removing sand, dust, rust and other particles. The especially even wrapping of the polypropylene thread during production results in a compact cartridge with a large effective filter surface.
Service life: approx. 6 months (depending on water quality and flow rate)

1 x CTO 20 BIG 10 mcr - activated carbon block
filters chlorine, org. pollutants, light hydrocarbons, solvents, pesticides, oils and aromas, taste impairments, odor impairments, fine particles (rust, limescale flakes, sand, flakes) and suspended matter.
Service life: approx. 6 months (depending on water quality and flow rate)


The filter system is brand new, with filter housing, a housing wrench, a wall bracket, screws and three filter cartridges.
