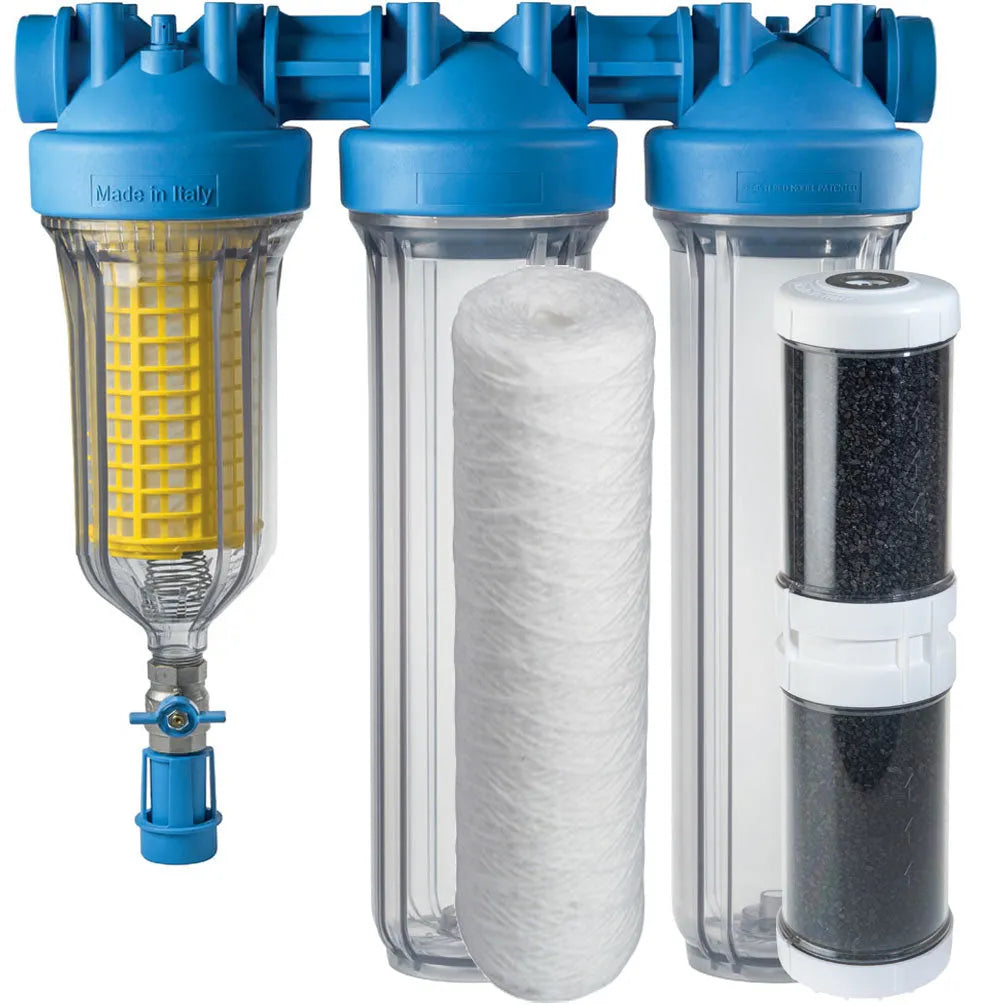

HYDRA BIG TRIO Rainmaster 1" LA - 20 inch Rainwater Filter

HYDRA BIG TRIO Rainmaster LA 1” - 20 inch rainwater filter

HIGH-PERFORMANCE BIG TRIPLE filter housing with one-piece head

This filter system treats water at high capacity cost-effectively and filters contaminants as well as fine particles out of the water.

This works through the Self-Cleaning/Backwash pre-filter with 90 micron, a FA pre-filter with 25 micron, and a final water treatment stage using the LA CARBON cartridge.

The LA 20 BIG SX TS - activated carbon granulate water filter is made of compressed activated carbon and filters contaminants from the water such as chlorine, organic contaminants, light hydrocarbons, solvents, pesticides, insecticides, oils and aromas, taste impairments, odor impairments.

The filter cleans the water to 25 micron.



Use, scope, dimensions:

The 3-stage water treatment system is designed to save a lot of space and is easy to install.

The HYDRA TRIO water filter comes with a drain funnel/backflow preventer to protect the drinking water supply.

The HYDRA TRIO home water filter is used for filtering and treating rainwater, drinking water,  domestic water and wastewater, and is used to protect fittings, pumps, water tanks and other technical systems as well as the piping.

Technical data

20" HYDRA BIG TRIO filter housing
Dimensions: 647 x 590 x 185 mm (HxWxD)
Operating pressure: maximum 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all standard 20" BIG cartridges with flat gasket
Suitable for drinking water applications



The individual filtration stages:

1 x RLH 90mcr HYDRA BIG - sediment filter polyester mesh
Self-cleaning pre-filtration cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 micron
Service life: approx. 12-24 months (depending on water quality and flow rate)


1 x FA 20 Big SX 25 micron - sediment wound filter polypropylene

Wound filters are high-performance sediment filters for removing sand, dust, rust and other particles. The exceptionally even wrapping of the polypropylene thread during production results in a compact cartridge with a large effective filter surface.
Service life: approx. 6 months (depending on water quality and flow rate)

1 x LA 20 BIG SX TS - activated carbon granulate water filter
filters chlorine, organic contaminants, light hydrocarbons, solvents, pesticides, oils and aromas, taste impairments, odor impairments.
Service life: approx. 6 months (depending on water quality and flow rate)


The filter system is supplied in its original packaging, with filter housing, a housing wrench, a wall bracket, screws and three filter cartridges.
