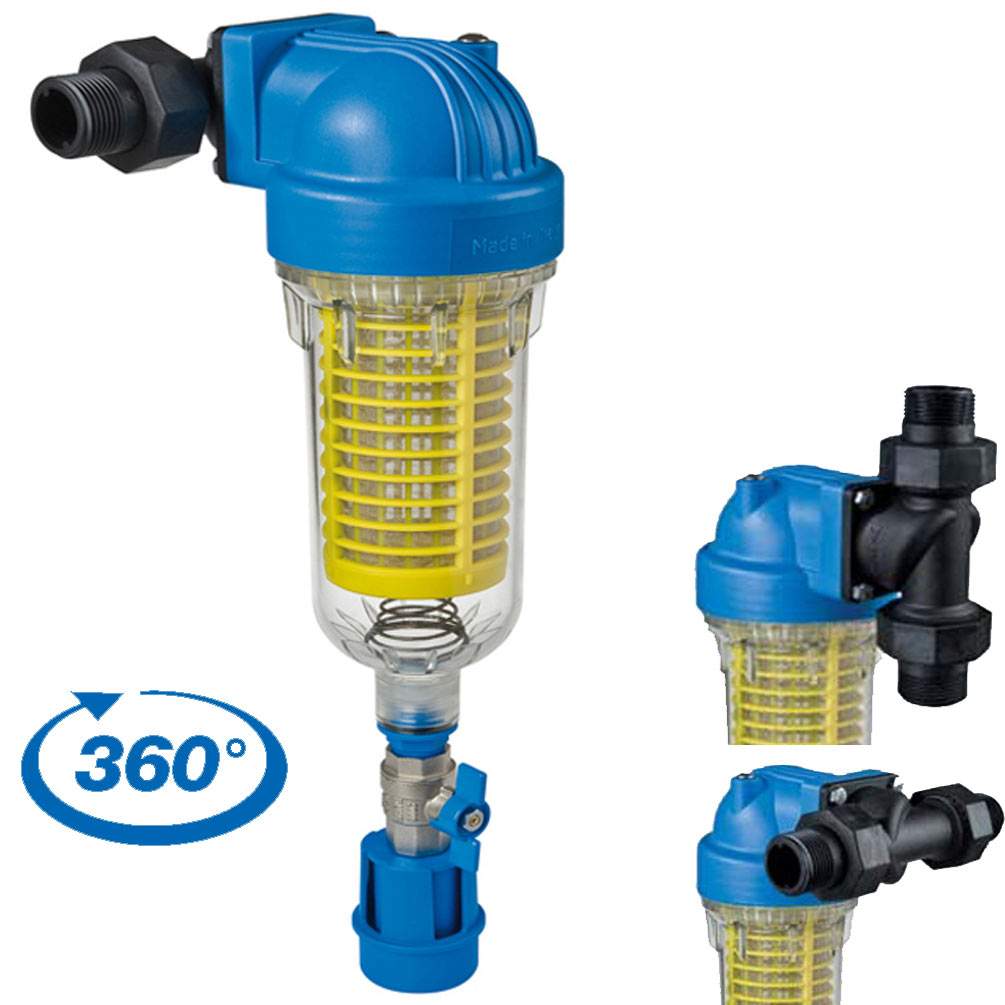

HYDRA DS MP 3/4"-1" inch RLH 360° Backwash Filter

HYDRA DS MP 3/4" and 1" RLH 90 mcr filter housing - horizontal and vertical

The water filter housing is 360° rotatable and can therefore be used horizontally or vertically; it is installed directly on the house inlet pipe or directly behind the water pump.

The HYDRA DS MP well water pre-filter is extremely robust and designed for filtering tap water or well water.

Innovative backwash system with spring-loaded filter cartridge. When the flush valve is opened, the pressure drop pulls the cartridge downward, cleaning it from the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

Includes hose connector and drain funnel with backflow prevention according to UNI EN 1717-11/2002

Recycling well water is an absolute must today; clean water is a necessity for every household.

This is made possible by the self-cleaning/backwash pre-filter with 90 microns.

The HYDRA well water filter was developed to provide high water flow with low pressure loss.

The 1-stage water treatment system is designed to save a great deal of space and is easy to install.

The HYDRA well water filter features a drain funnel/backflow prevention to protect the drinking water supply.

Filtration of fine particles (rust, sand, flakes, chips, etc.)

Filter housing dimensions:
Height: 428 Width: 170 Depth: 168 mm
IN / OUT connection made of plastic in 3/4" and 1" inch (selectable from the 2 included connection pieces)
Max. operating pressure: 8 bar (116 psi).
Min. operating pressure: 1.8 bar (26 psi).
Maximum temperature: up to 45 °C

FILTRATION:
1 x RLH - pre-filtration cartridge
Self-cleaning pre-filtration cartridge - RLH: 90 MIC
filters sand and other particles larger than 90 microns
- Service life: 12-24 months
- 7" inch filter dimensions: 173 x 70 x 30 mm
- Max. recommended flow rate 6000 l/h.

The filter system is supplied in original packaging with filter housing, a housing wrench, and filter cartridge.
