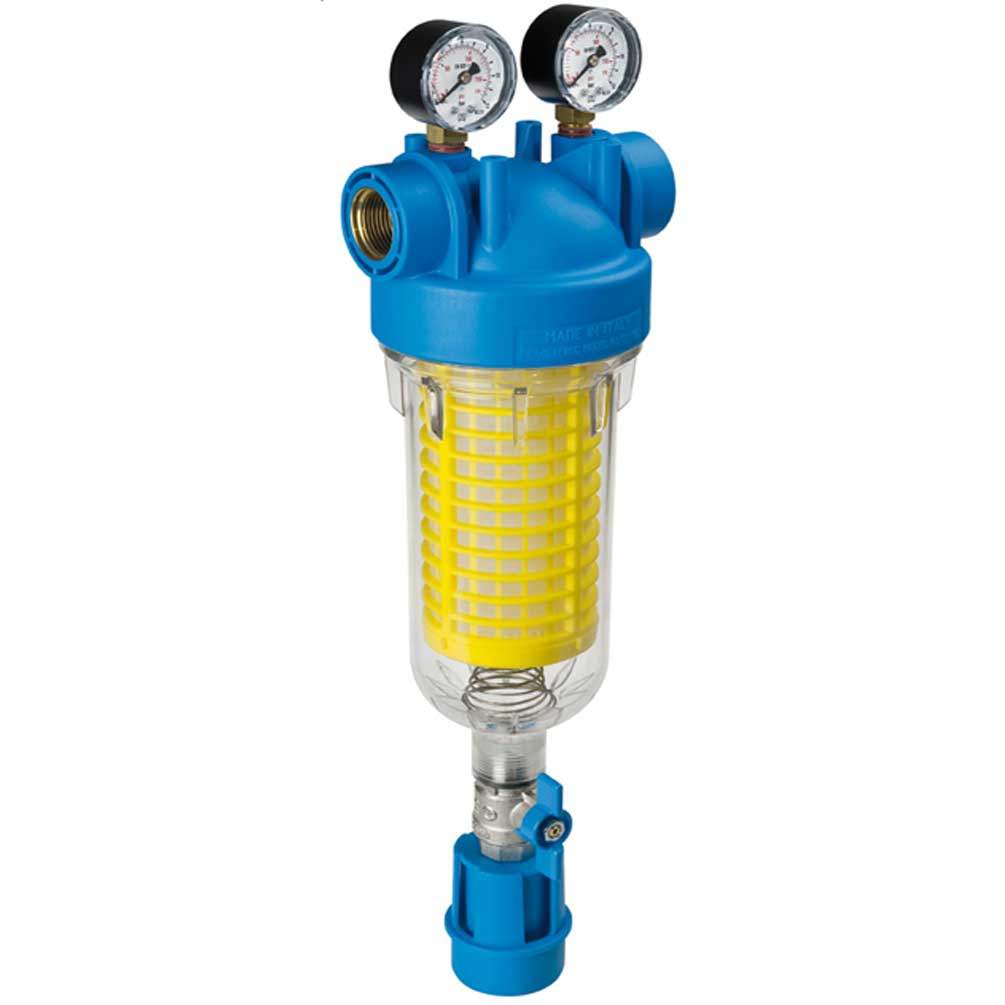

HYDRA M RLH 90 mcr - Backwash Filter Pressure Gauge

HYDRA M RLH 90 mcr self-cleaning backwash filter with pressure gauge in various connection sizes

Compact backwash filter for the filtration and treatment of drinking water, well water, domestic water, etc.

Innovative backwash system with spring-loaded filter cartridge. When the flushing valve is opened, the drop in pressure pulls the cartridge downward, cleaning it from the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

Includes hose nozzle and drain funnel with backflow preventer according to UNI EN 1717-11/2002

To automate the backwash, we recommend our K-Matic EAN 8021647389497 as an accessory

Technical data

Suitable for drinking water applications
Dimensions: 390 x 120 x 107 mm (HxWxD)
Operating pressure: 1.8 - 8.0 bar
Temperature range: 4 - 45 °C
Recommended maximum flow rate: 6000 l/h

Material selection

Housing head: reinforced polypropylene
Housing bowl: PET
O-ring: EPDM
Vent valve: stainless steel, EPDM
Connection thread: CW 617 N brass
Ball valve: CW 617 N nickel-plated brass, reinforced polypropylene
Drain funnel/ hose nozzle: reinforced polypropylene
Pressure gauge: radial, 0-12 bar

Areas of application:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive a HYDRA backwash filter complete with filter cartridge, drain set, wall bracket and housing wrench in the selected connection size.
