HYDRA Rainmaster Trio RLH CB 1" Home Water Filter Well Water Filter

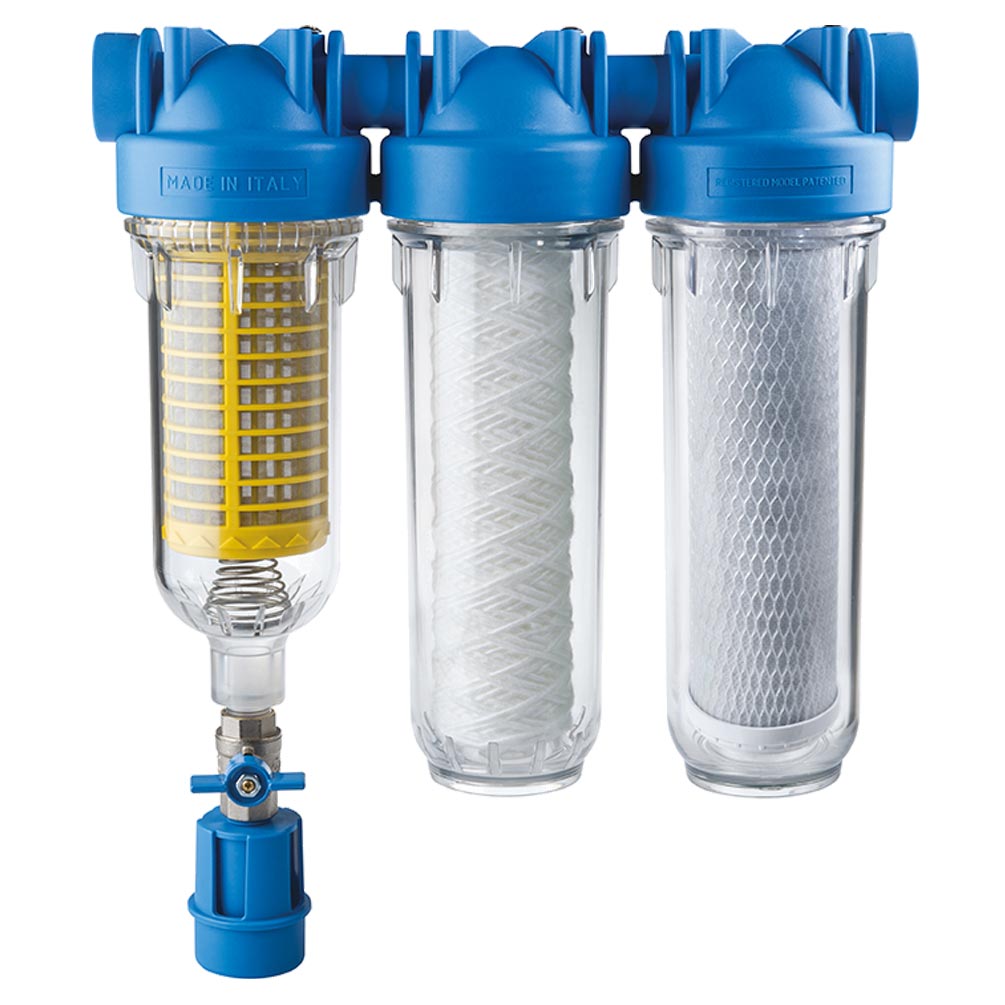

TRIPLE filter housing with one-piece head

This filter system prepares water at high capacity in a cost-effective way and filters out pollutants as well as fine particles from the water.

This works through the self-cleaning/backwash pre-filter with 90 microns, a pre-filter with 25 microns, and a final water treatment CB CARBON cartridge.

The CB carbon block activated carbon filter consists of compressed activated carbon and filters pollutants from the water such as chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, insecticides, oils and flavors, taste impairments, odor impairments, fine particles (rust, limescale flakes, sand, flakes) and suspended solids.

The filter purifies the water to 10 microns.

Use, scope, dimensions:

The 3-stage water treatment system is designed to save space and is easy to install.

The HYDRA Rainmaster TRIO well water filter has a drain funnel/backflow protection to protect the drinking water supply.

The well water filter can produce clear water and makes it possible to use well water in the home.

It is used to filter and treat drinking water, well water, household water, wastewater, and serves to protect fittings, boilers, pumps, water tanks, washing machines and other technical equipment as well as the piping.

Filter dimensions:

Height 390 mm Width 336 mm Depth 107 mm

IN / OUT connection made of brass in 1" inch:

Maximum pressure: 8.0 bar

Minimum pressure: 1.8 bar

Maximum temperature: 45 °C

The individual filtration stages:

1 x RLH - pre-filtration cartridge (item no. 8021647070418)

Self-cleaning pre-filtration cartridge RLH with plastic mesh 90 MIC, filters sand and other particles larger than 90 microns.

Service life: approx. 12-24 months

1 x FA filtration cartridge 25 microns (item no. 4260303250120)

filters fine particles (sand, rust, flakes)

Service life: approx. 6 months (depending on water quality and throughput)

1 x CB CARBON  cartridge activated carbon 10 microns (item no. 4260303250106)

filters fine particles (rust, limescale, sand, flakes) as well as pollutants (pesticides, solvents, etc.), reduces  chlorine (bad taste and odor)

Service life: approx. 6 months (depending on water quality and throughput)

The filter system is brand new, with filter housing, a housing wrench, a wall bracket, screws and filter cartridges.
