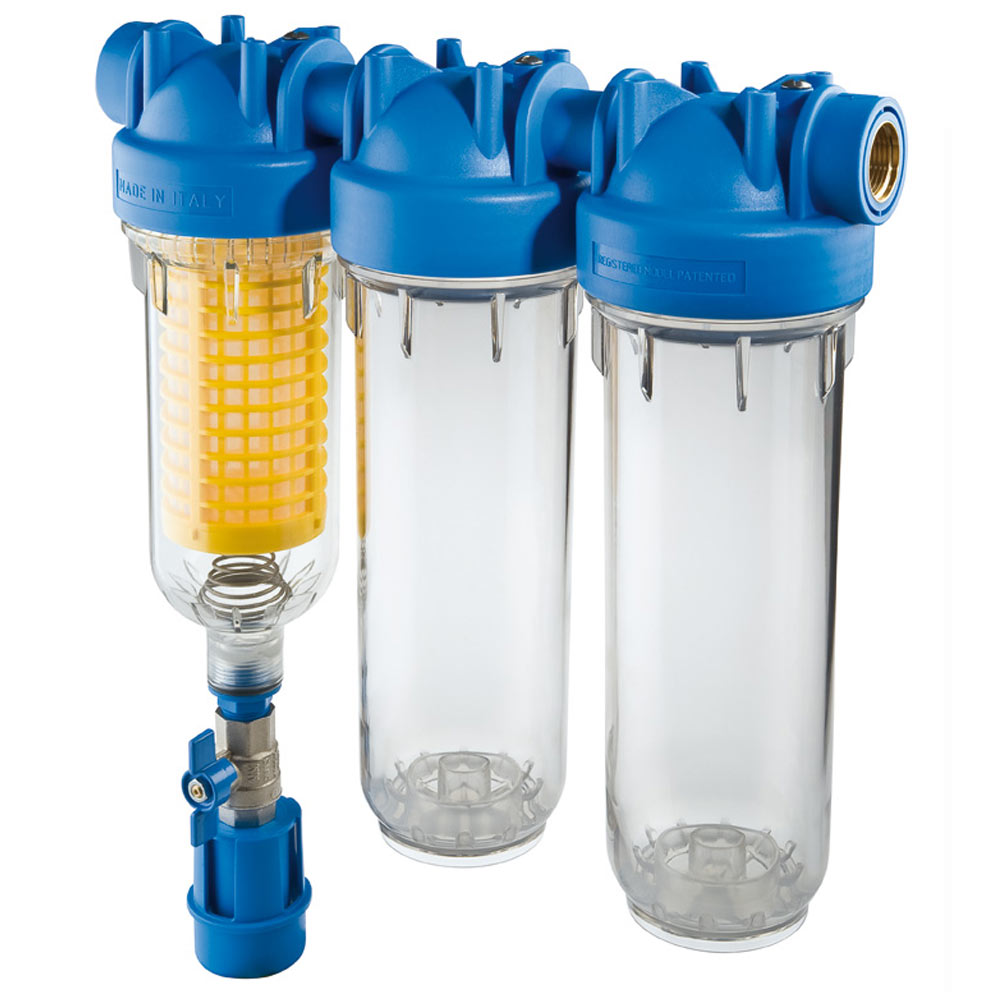

HYDRA Trio RLH 90 mcr - Backwash Filter Triple Filter Housing

HYDRA Trio RLH 90 mcr self-cleaning backwash filter and 10" filter housing in various connection sizes

Compact backwash filter for filtering and treating drinking water, well water, household water, etc.

Innovative backwash system with spring-loaded filter cartridge. When the flush valve is opened, the pressure drop pulls the cartridge downward, thereby cleaning the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

Includes hose connector and drain funnel with backflow prevention in accordance with UNI EN 1717-11/2002

To automate the backwashing, we recommend our K-Matic EAN 8021647389497 as an accessory
Suitable 10" filter cartridges can be found in our shop.

Technical data

Suitable for drinking water applications
Dimensions: 390 x 120 x 107 mm (HxWxD)
Operating pressure: 1.8 - 8.0 bar
Temperature range: 4 - 45 °C
Recommended max. flow rate: 6000 l/h

Material selection

Housing head: reinforced polypropylene
Housing bowl: PET
O-ring: EPDM
Air release valve: stainless steel, EPDM
Connecting thread: CW 617 N brass
Ball valve: CW 617 N nickel-plated brass, reinforced polypropylene
Drain funnel / hose connector: reinforced polypropylene

Areas of application:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive a HYDRA Trio including backwash filter, drain set, wall bracket and housing wrench in the selected connection size.
