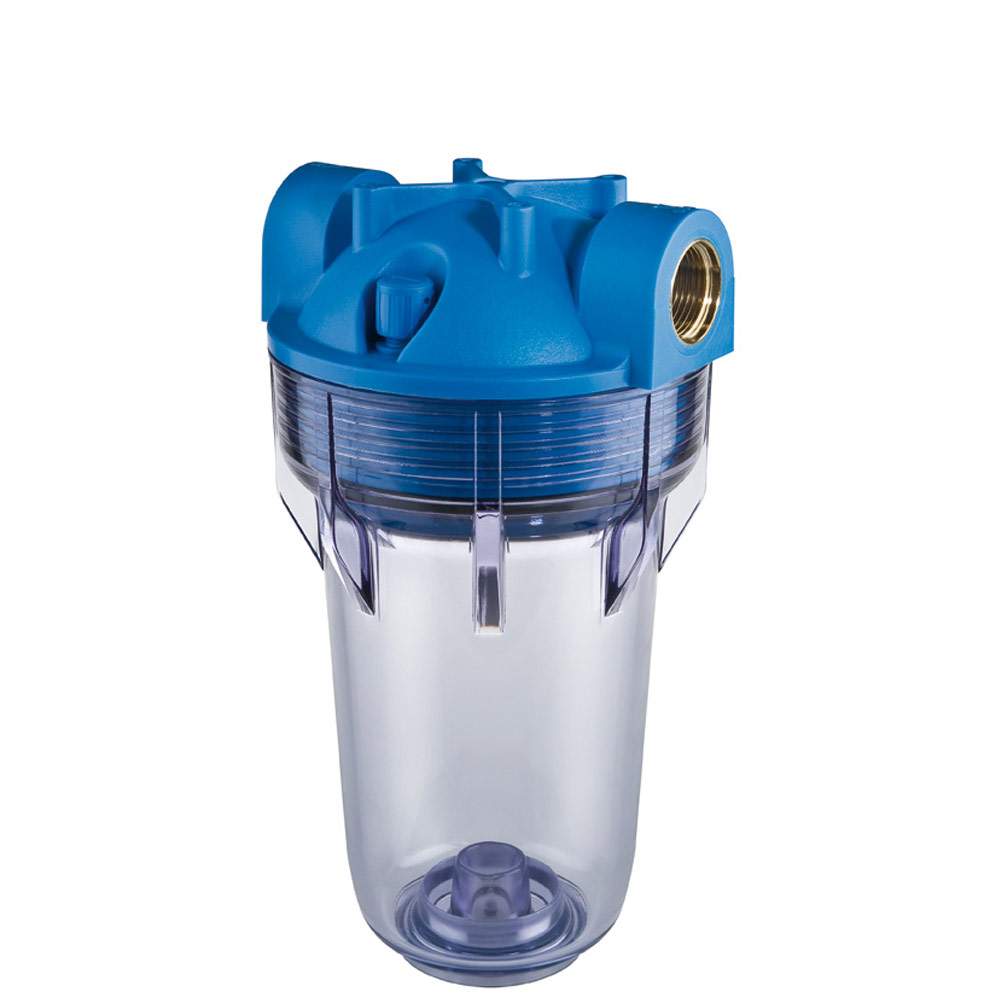

Junior Plus 2P AFO SX AS 3/4"- Single filter housing 7"inch made of polypropylene

Compact and robust filter housing for filtration and treatment of drinking water, well water, domestic water, etc.

We recommend the following accessories:
W1 - Wall bracket EAN 8021647102089
U1 - Housing key EAN 8021647098320

Technical data

7"filter housing
Suitable for drinking water applications
Connection size:3/4"internal thread
Dimensions:241 x 133 x 130 mm (HxWxD)
Operating pressure:maximum 8.0 bar
Temperature range:4 - 45°C

Material selection

Housing head:reinforced polypropylene
Housing cup:SAN
O-ring:EPDM
Vent valve:stainless steel, EPDM
Connection thread:CW 617 N brass

Areas of application:

Pre-filter
Device protection filter
Drinking water filter

You will receive a 7"inch filter housing.
