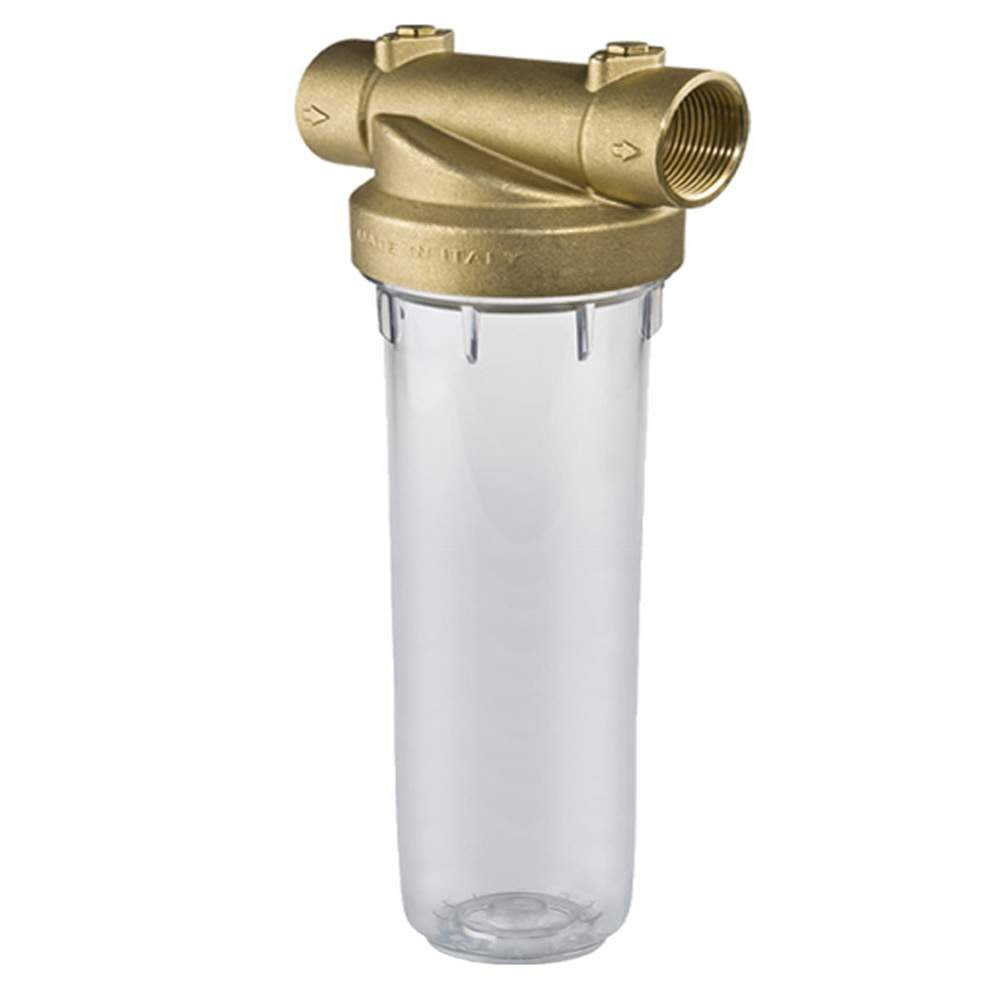

K DP Senior - Single filter housing 10 bar

K DP Senior Single Filter Housing with Brass Head in Various Connection Sizes

Compact and robust filter housing for filtration and treatment of drinking water, well water, household water, etc.

Suitable 10" filter cartridges can be found in our shop.

Recommended accessories:
K1 - Wall Bracket EAN 8021647176202
S1-DP - Housing Wrench EAN 8021647164094

Technical Data

10" Filter Housing
Suitable for all standard 10" cartridges with flat seal
Suitable for drinking water applications
Dimensions: 335 x 120 x 105 mm (HxWxD)
Operating pressure: maximum 10.0 bar
Temperature range: 4 - 45 °C

Material Selection

Housing head: CB 753 S Brass
Housing cup: PET
O-Ring: EPDM
Vent valve: CW 617 N Brass

Application Areas:

Pre-filter
Device protection filter
Drinking water filter

You will receive a 10" filter housing in the selected connection size.
