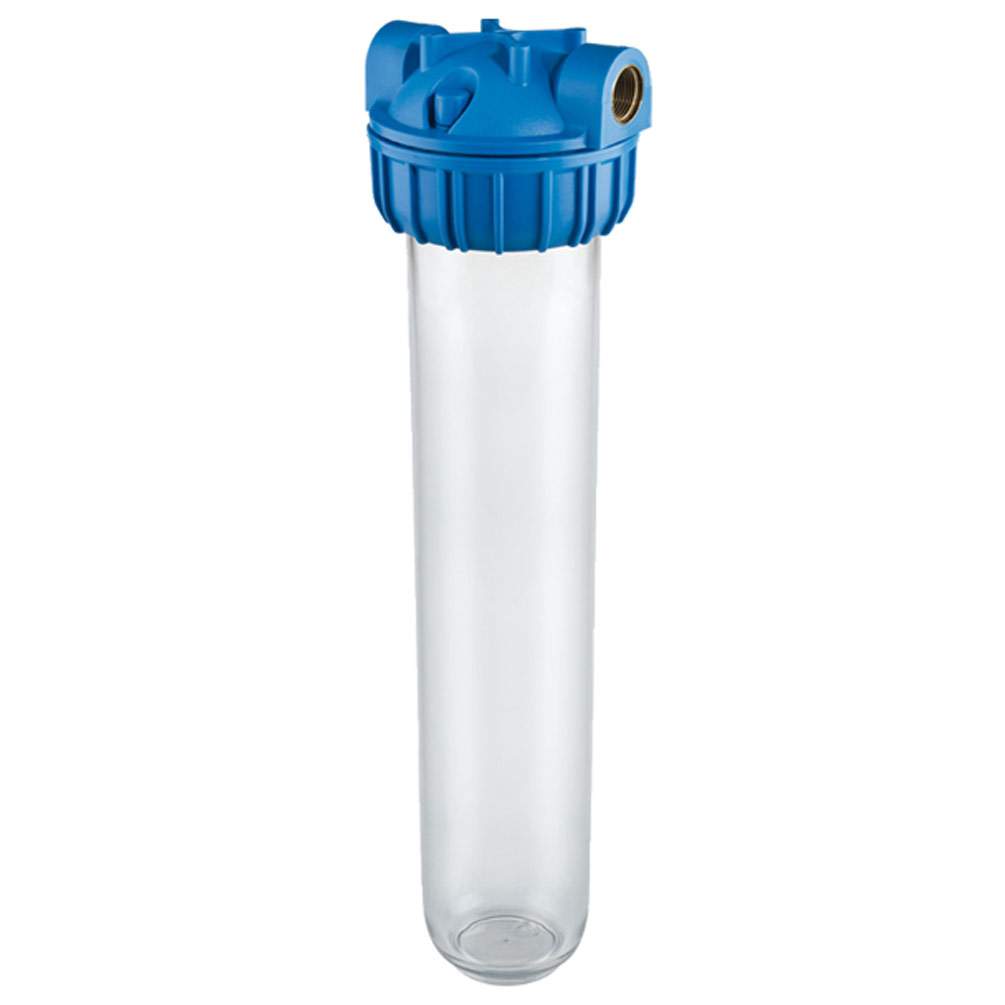

Master Plus 3P SX TS - 20" Single Filter Housing

Master Plus 3P SX TS Single filter housing made of polypropylene in various connection sizes

Compact and robust filter housing for the filtration and treatment of drinking water, well water, domestic water, etc.

Matching 20" SX filter cartridges can be found in our shop.

We recommend the following accessories:
W1 - wall bracket EAN 8021647102089
U1 - housing wrench EAN 8021647098320

Technical data

20" filter housing
Suitable for all standard 20" cartridges with flat gasket
Suitable for drinking water applications
Dimensions up to 3/4": 571 x 133 x 130 mm (HxWxD)
Dimensions 1": 571 x 145 x 130 mm (HxWxD)
Operating pressure: maximum 8,0 bar
Temperature range: 4 - 45 °C

Material selection

Housing head: reinforced polypropylene
Housing bowl: PET
O-ring: EPDM
Air release valve: stainless steel, EPDM
Connection thread: CW 617 N brass

Areas of application:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive a 20" filter housing in the selected connection size.
