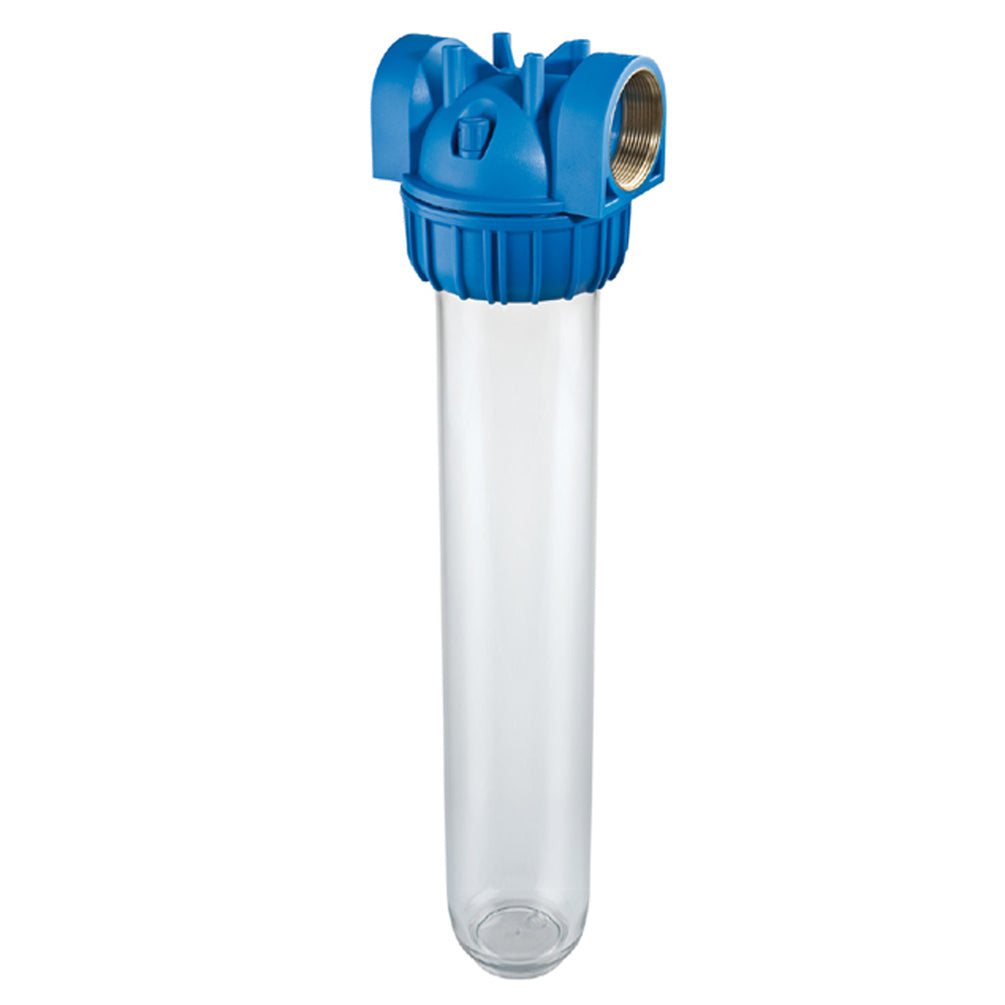

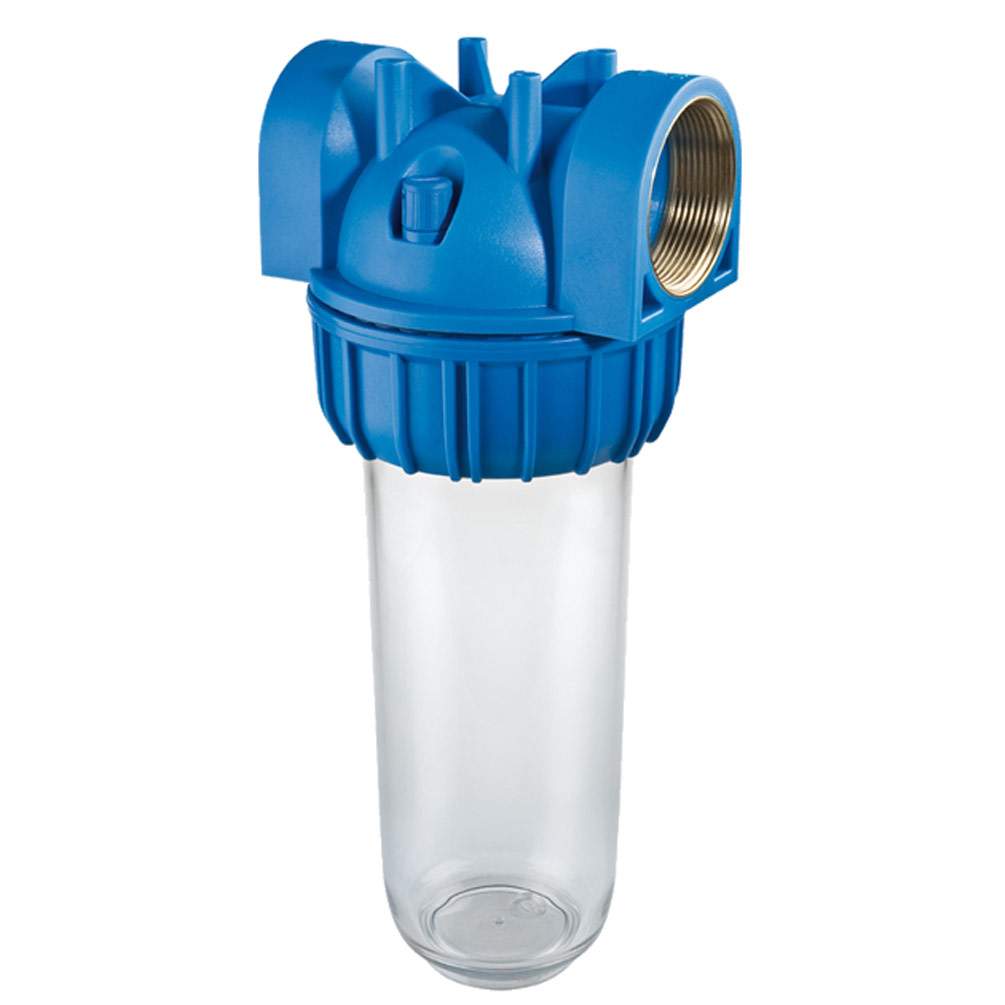

Plus 3P CX TS - Single Filter Housing

Plus 3P CX Single Filter Housing Made of Polypropylene in Various Connection Sizes and Filter Sizes

Compact and durable filter housing for filtering and treating drinking water, well water, household water, etc.

Matching CX filter cartridges can be found in our shop.

As accessories, we recommend:
W1 - Wall bracket EAN 8021647102089
U1 - Housing wrench EAN 8021647098320

Technical Data

Suitable for drinking water applications
Dimensions up to 10" filter: 341 x 143 x 130 mm (H x W x D)
Dimensions 20" filter: 600 x 143 x 130 mm (H x W x D)
Operating pressure: maximum 8,0 bar
Temperature range: 4 - 45 °C

Material Selection

Housing head: reinforced polypropylene
Housing sump: PET
O-ring: EPDM
Bleed valve: stainless steel, EPDM
Connection thread: CW 617 N brass

Areas of application:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive a filter housing in the selected connection size and filter size.
