Plus 3p cx ts - single filter housing

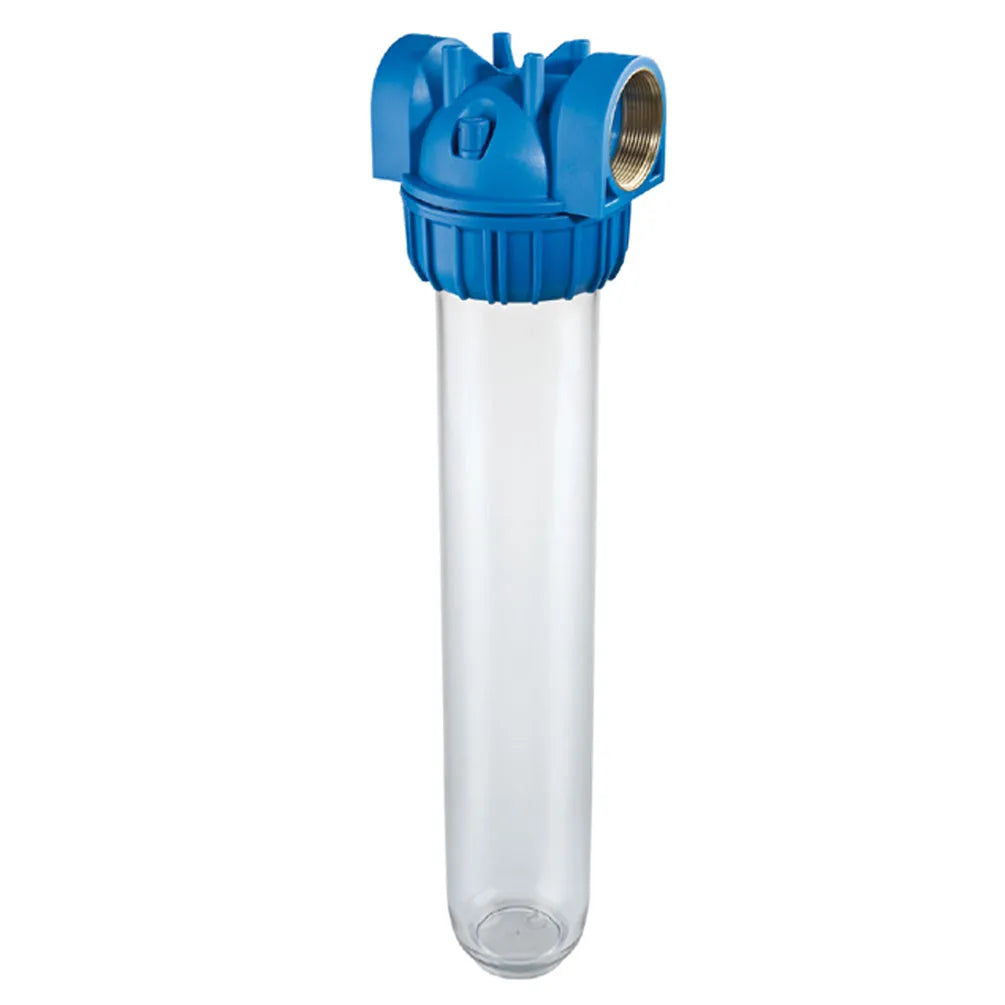

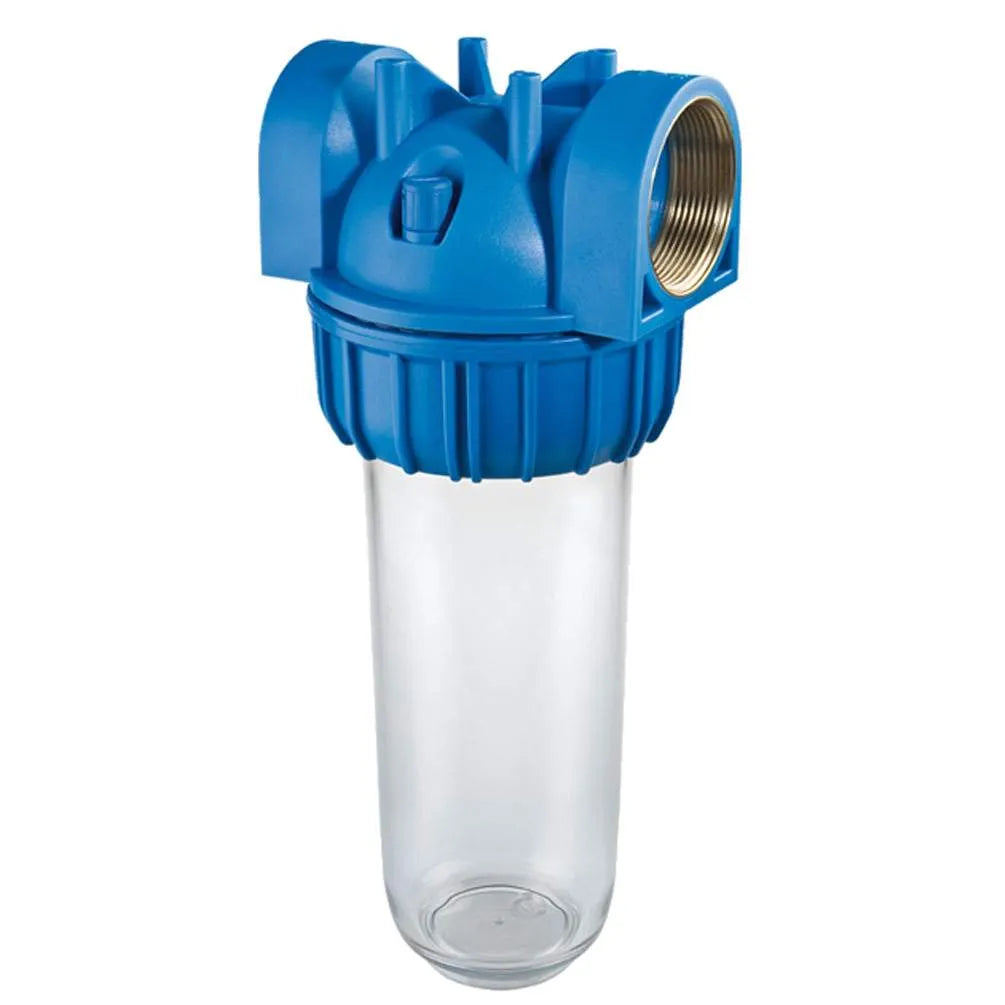

Plus 3P CX TS single filter housing made of polypropylene in various connection sizes and filter sizes

Compact and robust filter housing for filtration and treatment of drinking water, well water, domestic water, etc.

You can find suitable CX filter cartridges in our shop.

We recommend the following accessories:
W1 - Wall bracket EAN 8021647102089
U1 - Housing key EAN 8021647098320

Technical data

Suitable for drinking water applications
Dimensions up to 10" filter: 341 x 143 x 130 mm (HxWxD)
Dimensions 20" filter: 600 x 143 x 130 mm (HxWxD)
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 45 CC

Material selection

Housing head: reinforced polypropylene
Housing cup: PET
O-ring: EPDM
Vent valve: stainless steel, EPDM
Connection thread: CW 617 N brass

Areas of application:

Pre-filter
Device protection filter
Drinking water filter

You will receive a filter housing in the selected connection size and filter size.
