2 x pfex 10 sx iron remover - iron filter cartridge

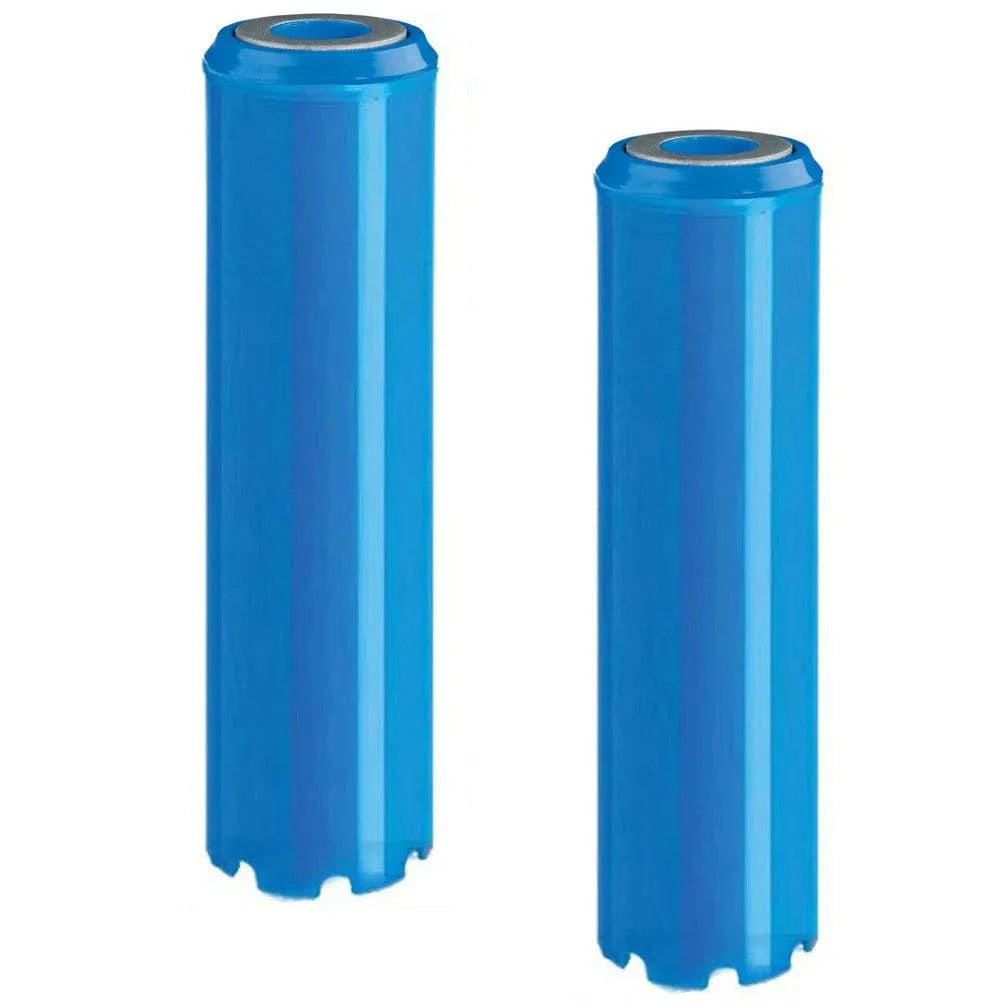

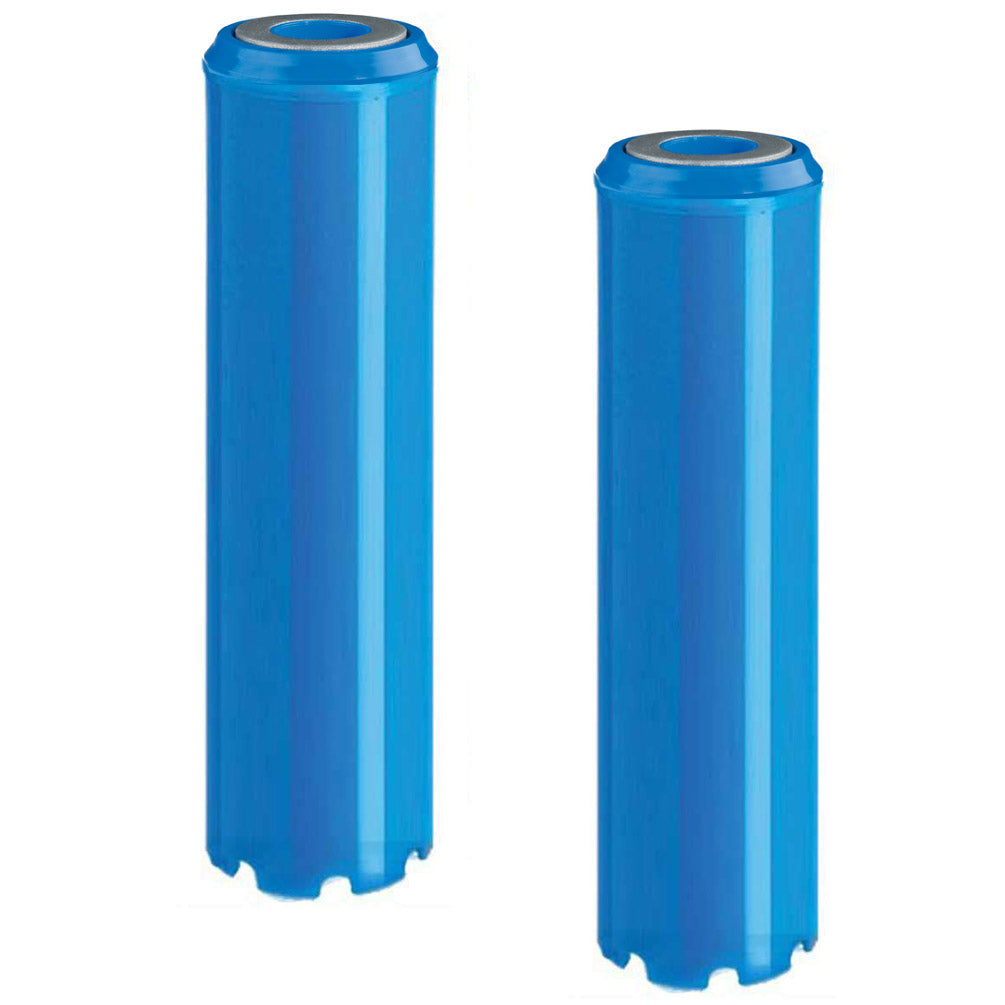

2 x PFEX 10 SX IRON REMOVER - iron filter cartridge

Is filled with filter media to reduce the iron concentration in the water.

The iron filter cartridge lowers the iron concentration, reduces the hydrogen sulfide content, the metallic taste and the odor of the water.

An iron water filter is used to remove iron and manganese content from the water. These contaminants can be found in some water supply systems and can cause various problems such as discoloration of the water, deposits in pipes and appliances, and an unpleasant taste or odor in the water. The direct consequence of too high an iron content in the water is the formation of rusty edges on sanitary facilities (bathtubs, sinks).

The filter cartridge is filled with a mixture of pyrolusite and differently grained quartz sand granules.

The FE² dissolved in the water is converted into FE³ and removed from the water. The iron filter uses hydrogen sulfide in which Fe² is oxidized to Fe³.


Reduction of:
iron Can be used up to a maximum value of 4.0 mg/l
manganese Can be used up to a maximum value of 0.1 mg/l
Sulfite (up to 0.9 mg/l)
Oxide (up to 4.0mg/l)
Chloride (up to 4.8 mg/l)
Silicates (up to 35.0 mg/l)


The iron filter helps normalize the pH value of the water.

- Iron ion treatment
- Odor impairment and fine particles
- The filter also removes light oils

To extend the service life, it is recommended to install a sediment cartridge from the FA or FAG series in front of the iron filter cartridge.


The iron filter cartridge to reduce the iron concentration

- Iron ion treatment
- Odor impairment and fine particles
- The filter also removes light oils
- Lifespan: approx. 6 months or approx. 3,000 l (depending on the iron (max. 4 mg/l) and manganese values ​​(max. 0.1 mg/l) and the flow rate)
- Maximum temperature: up to 45 CC
- Recommended flow rate at approx. 3 bar / 1000l/h.

!With the iron filter cartridges, it can happen that granulate dust initially escapes, which is caused by transport. Let the water run until the water is clear. If applicable. Only use the following filters afterwards!

PLEASE NOTE THE MAXIMUM VALUES. PERFORM if necessary. DO A WATER ANALYSIS!

Test drops to determine the iron content in the water (optional - item number: 8056300922834)

10" inch filter dimensions: 248 x 70 x 26 mm

Water filter cartridge suitable for all standard 10" filter housings

You will receive TWO filters packed in a box.
