DP 10 DS MP 3/4"-1"TS - Single filter housing horizontal vertical

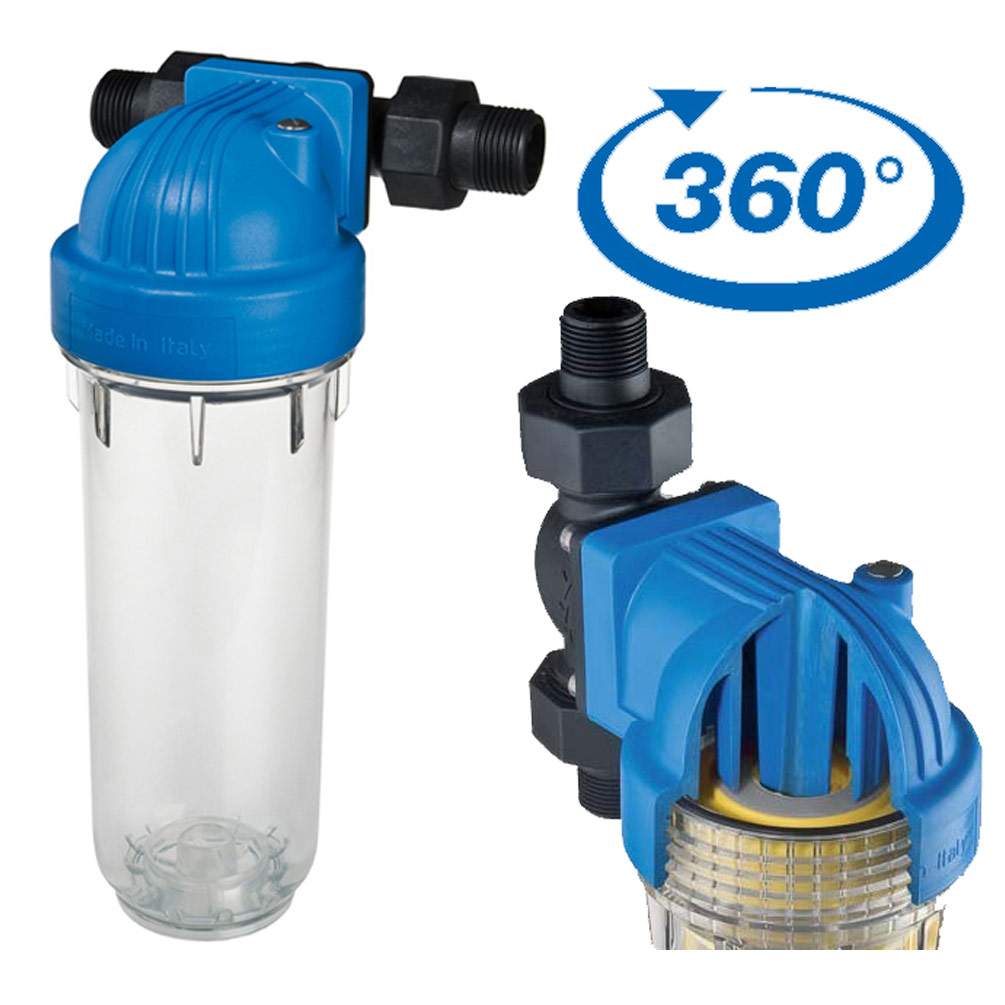

DP 10 DS MP 3/4"-1" TS - Single filter housing with rotatable connection-thread head in 3/4" and 1" for horizontal and vertical installation

Compact and robust filter housing for filtration and treatment of drinking water, well water, household water, etc.

Suitable 10" filter cartridges can be found in our shop.

As accessories we recommend:
S1-DP - housing wrench EAN 8021647164094

Technical data

10" filter housing
Suitable for all standard 10" cartridges with flat seal
Suitable for drinking water applications
Connection size: 3/4" + 1" external thread
Dimensions: 331 x 172 x 170 mm (HxWxD)
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 45 °C

Material selection

Housing head: reinforced polypropylene
Housing bowl: PET
O-Ring: EPDM
Vent valve: stainless steel, EPDM
Rotatable connection thread: reinforced nylon, NBR

Applications:

Pre-filter
Appliance protection filter
Drinking water filter

You will receive a 10" filter housing with housing wrench packed in a carton.
