DP 10 FA 25 mcr - Sediment Wound Filter

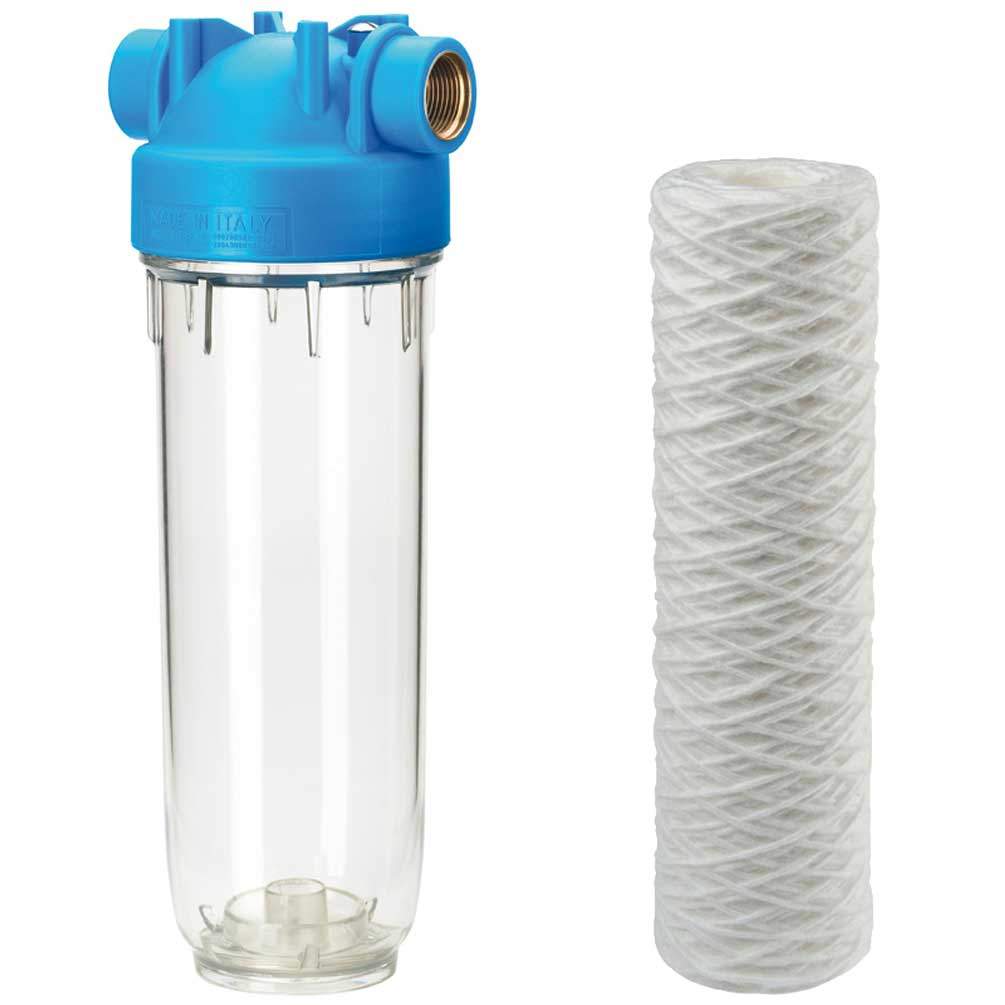

DP 10 FA 25 Micron - Filter housing made of polypropylene 3/4" with sediment wound filter

You receive a 10" quality filter housing made of polypropylene incl. a FA filter cartridge 25 micron.

The filter serves as a pre-filter, e.g. for water filter units or treatment systems; it has a good flow rate for reverse osmosis systems and produces clean water at a very affordable price.


The 25 micron polypropylene fiber filter removes the finest particles from the water, such as sand, dust, rust, flakes.


Use: Filtration and treatment of drinking water, well water, household water, dirty water; serves to protect fittings, boilers, pumps, water tanks, washing machines and other technical systems as well as the pipework.


Max. flow rate at approx. 3 bar / 5000l/h.


3/4" inch filter housing:
Height 325 Width 122 Depth 107 mm

3/4" inch connection with brass threaded inserts

Maximum pressure: 8,0 bar
Maximum temperature: up to 45 °C

1 x FA 10 SX 25 Micron - Sediment wound filter (Item no.: 4260303250120)

- Filtration of fine particles (sand, rust, limescale flakes)
- Service life: approx. 6 months (depending on water quality and the flow volume)
- 10" inch filter dimensions: 250 x 61 x 28 mm
- Max. flow rate at approx. 3 Bar pressure / 2000l/h.

The filter is suitable for all other commercially available 10 inch filter housings.

The filter system is originally packaged with filter housing, filter cartridge, W1 - wall bracket (blue) and DP filter housing wrench
