Description
TECHNICAL DATA
AREAS OF APPLICATION & INFORMATION

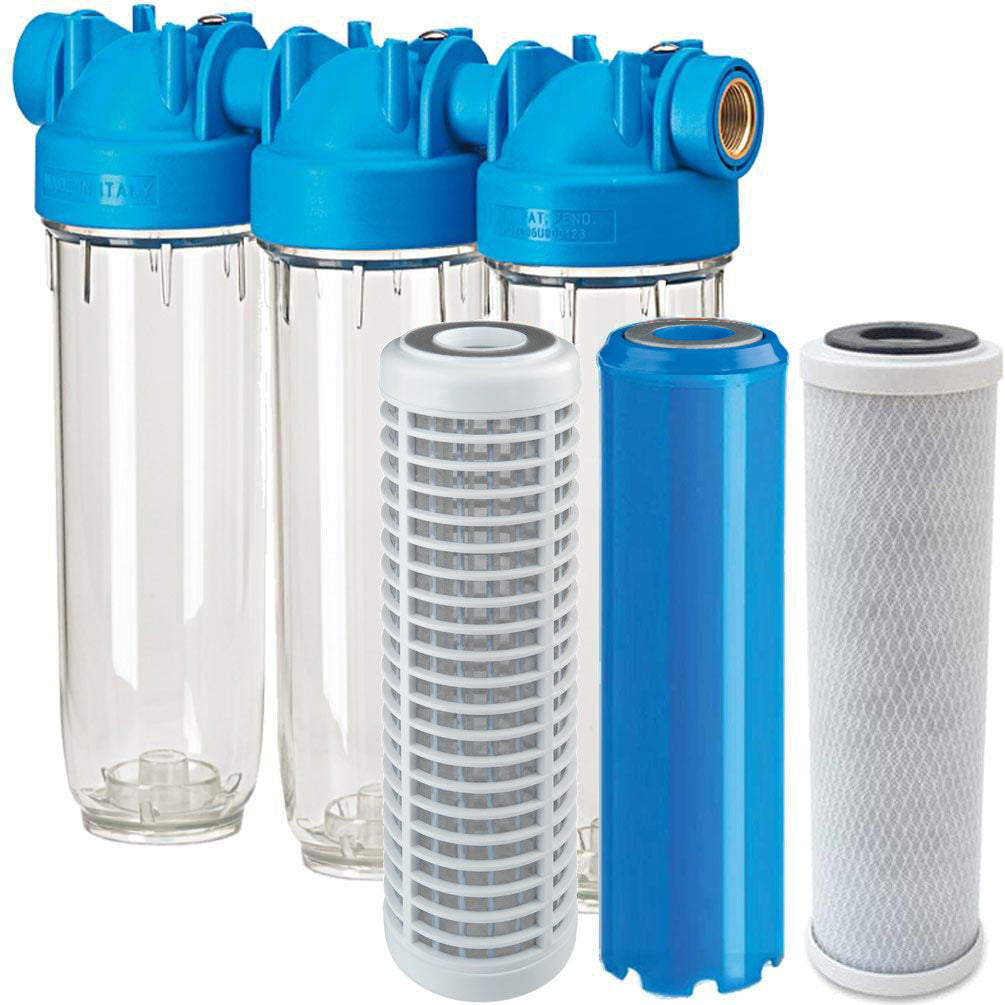

DP 10 Trio RLA PCB PFEX 10 micron - combination filter iron filter

You will receive a 10" inch quality triple filter housing made of polypropylene.

The DP 10 Trio RLA PCB PFEX 10 mcr - combination filter iron filter is an iron water filter, this iron water filter reduces the iron content in the water and filters pollutants and fine particles.

This works with two pre-filter cartridges up to 10 microns as well as water treatment by the PFEX iron filter cartridge.

The PFEX iron filter cartridge lowers the iron concentration, reduces the hydrogen sulfide content, the metallic taste and the odor of the water.

The FE² dissolved in the water is converted to FE³ and removed from the water by the PFEX filter. The PFEX filter uses hydrogen sulfide, in which Fe² is oxidized to Fe³.

Water with too high an iron content is the main cause of wear and tear on industrial equipment and household appliances due to deposits of so-called "scale". Iron salts damage textiles washed in such water and irritate the skin. Furthermore, too high an iron content in the water results in the formation of rust edges on sanitary facilities.

Reduction of:
iron Can be used up to a maximum value of 4.0 mg/l
manganese Can be used up to a maximum value of 0.1 mg/l
Sulfite (up to 0.9 mg/l)
Oxide (up to 4.0mg/l)
Chloride (up to 4.8 mg/l)
Silicates (up to 35.0 mg/l)

The water becomes clear and free of iron.

The water filter system also filters sand, suspended solids, limescale, rust, fine dust and odors and even oils and aromas, organic substances, pesticides, insecticides, chlorines and solvents.

The yellow-brownish water color is greatly reduced.

- Sand
- Lime flakes
- Chlorine
- Pesticides
- Impaired taste
- Odor impairments
- Insecticides
- Solvent
- organic pollutants
- Flavors

Helps normalize the pH value in water.

- Iron ion treatment

- Odor impairment and fine particles

- The filter also removes light oils



10" TRIPLE filter housing:
Height 325 Width 336 Depth 103 mm
IN / OUT connection made of brass in 3/4" inch
Maximum pressure: 8.0 bar
Maximum temperature: 45 degrees Celsius

FILTRATION:

1 x RLA - pre-filtration cartridge (item no.: 4260303250557)
Filter medium: AISI 316 stainless steel
filters sand and other particles larger than 70 microns
- Lifespan: 12-24 months
- 10" inch filter dimensions: 250 x 70 x 30 mm
- Working temperature: 4 - 45 CC

1 x PCB - CARBON cartridge activated carbon 10 micron (Item No.: 4260303250106)
- Filtration of fine particles (rust, lime flakes, sand, scales)
- Reduction of chlorine (bad taste and smell)
- Harmful substances (pesticides, solvents, etc.)
- Lifespan: approx. 6 months (depending on the water quality and flow rate)
- 10" inch filter dimensions: 248 x 70 x 26 mm

1 x PFEX iron filter cartridge to reduce iron concentration: (EAN 4260303250830)
- Iron ion treatment
- Odor impairment and fine particles
- The filter also removes light oils
- Lifespan: approx. 6 months or approx. 3,000 l (depending on the iron (max. 4 mg/l) and manganese values ​​(max. 0.1 mg/l) and the flow rate)
- 10" inch filter dimensions: 248 x 70 x 26 mm

!With the PFEX iron removal filters, it can happen that granulate dust initially escapes, which is caused by transport. Let the water run until the water is clear. If applicable. Only use the following filters afterwards!

PLEASE NOTE THE MAXIMUM VALUES. PERFORM if necessary. DO A WATER ANALYSIS!

We recommend as accessories (optional):

Test drops to determine the iron content in water (Item No.: 8056300922834)



You will receive 1 x TRIPLE filter housing, 3 x filter cartridges, 1 x wall holder W3 and 1 x housing key packed in a box.
