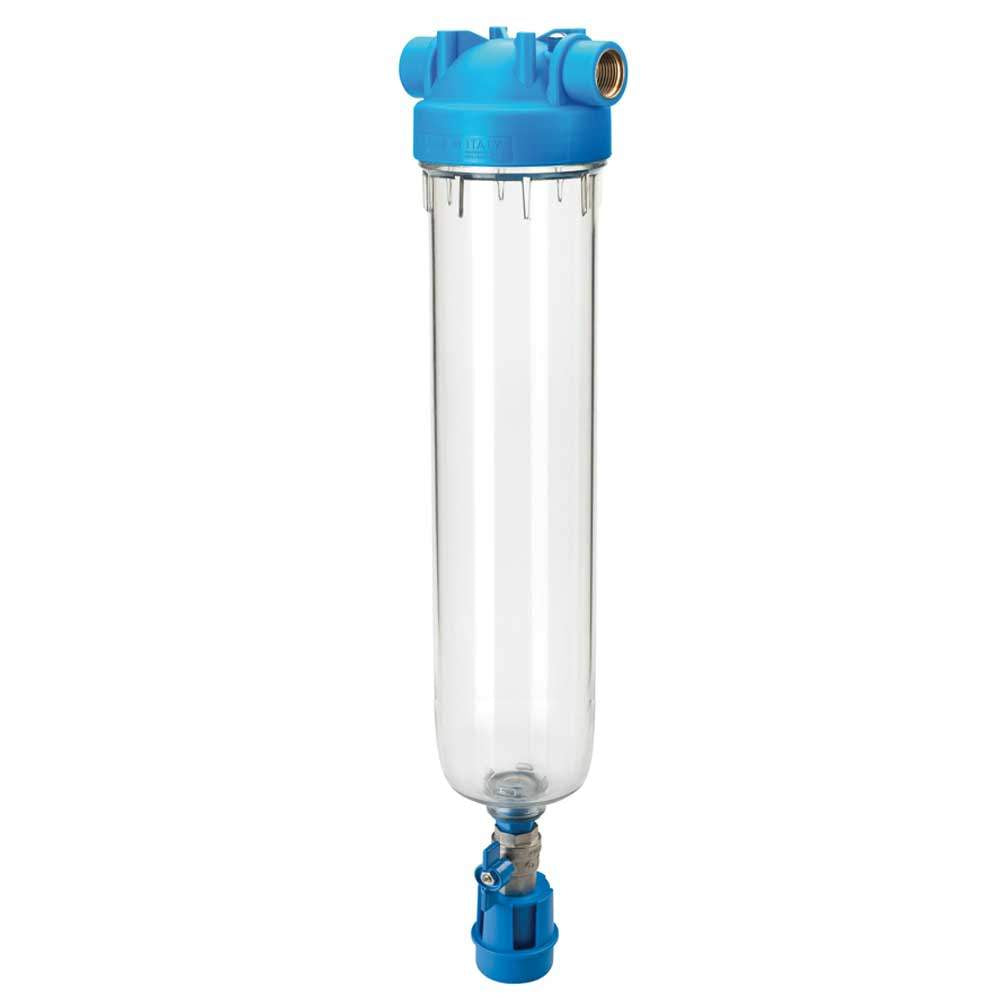

DP S 20 Mono 3/4 OT TS - Single filter housing flushing function

DP S 20 Mono 3/4 OT TS single filter housing with flushing function made of polypropylene

Compact and robust filter housing for filtration and treatment of drinking water, well water, domestic water, etc.

You can find suitable 20" BX filter cartridges in our shop.

We recommend the following accessories:
W1 - Wall bracket EAN 8021647102089
S1-DP - Housing key EAN 8021647164094

Technical data

20 inch filter housing

IN/OUT connection thread made of 3/4 inch brass
Suitable for 20" BX cartridges with double O-ring seal
Suitable for drinking water applications
Dimensions: Height: 723 mm Width: 122 mm Depth: 107 mm
Operating pressure: maximum 8.0 bar
Temperature range: 4 - 45 C

Material selection

Housing head: reinforced polypropylene
Housing cup: PET
O-ring: EPDM
Vent valve: stainless steel, EPDM
Connection thread: CW 617 N brass
Flush valve: CW 617 N nickel-plated brass, reinforced polypropylene

Areas of application:

Pre-filter
Device protection filter
Drinking water filter
