HYDRA 3/4"RSH 50 MCR - BACKWASH FILTER

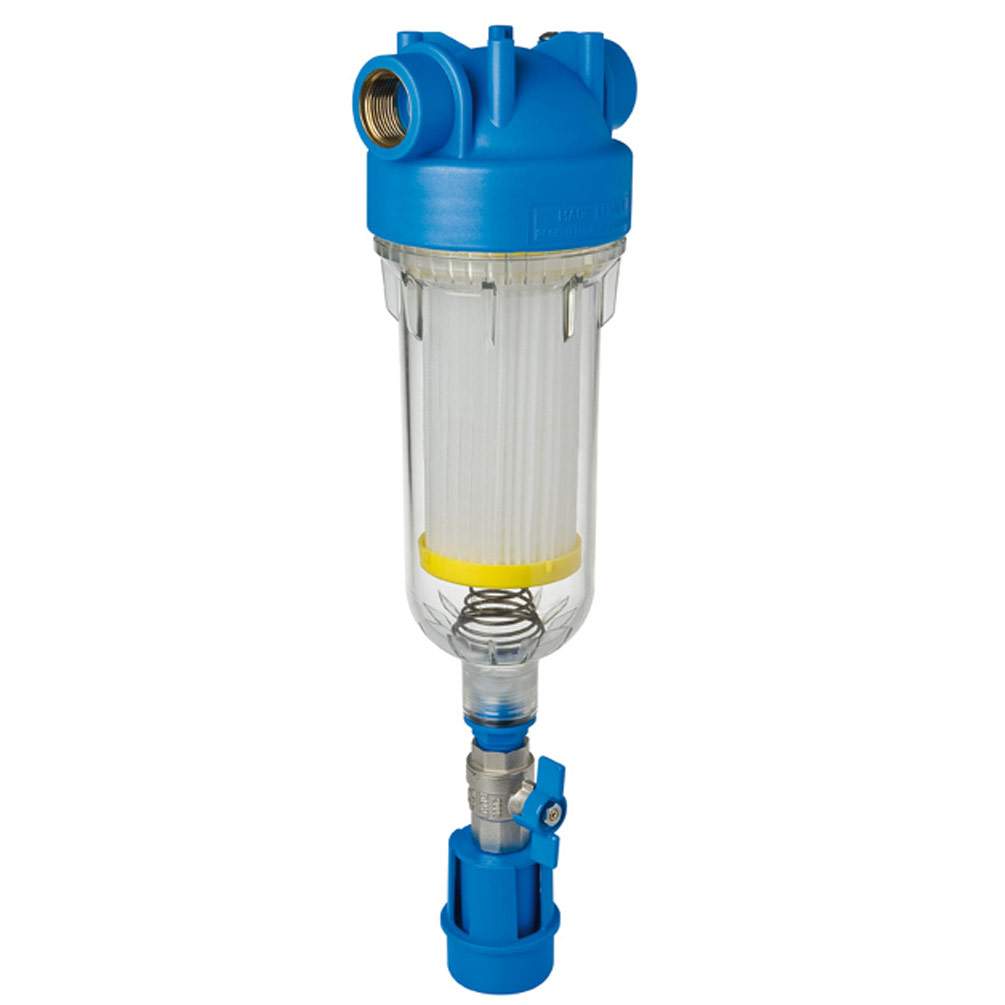

HYDRA 3/4" RSH 50 mcr self-cleaning backwash filter with pleated plastic filter cartridge

Compact backwash filter for filtration and treatment of drinking water, well water, domestic water, etc.

Innovative backwash system with spring-loaded filter cartridge. When the flushing valve is opened, the pressure drop causes the cartridge to be pulled downwards and thus also cleaned inside. A minimum pressure of 1.8 bar is necessary to ensure backwashing.

Includes hose nozzle and drain funnel with backflow protection according to UNI EN 1717-11/2002

To automate backwashing, we recommend our K-Matic EAN 8021647389497 as an accessory

Technical data

Suitable for drinking water applications
Connection size: 3/4" internal thread
Dimensions: 390 x 120 x 107 mm (HxWxD)
Operating pressure: 1.8 - 8.0 bar
Temperature range: 4 - 45 C
Recommended maximum flow rate: 6000L/h

Material selection

Housing head: reinforced polypropylene
Housing cup: PET
O-ring: EPDM
Vent valve: stainless steel, EPDM
Connection thread: CW 617 N brass
Ball valve: CW 617 N nickel-plated brass, reinforced polypropylene
Drain funnel/hose nozzle: reinforced polypropylene

Areas of application:

Pre-filter
Device protection filter
Drinking water filter

You will receive a HYDRA backwash filter complete with filter cartridge, drain set, wall bracket and housing key.
