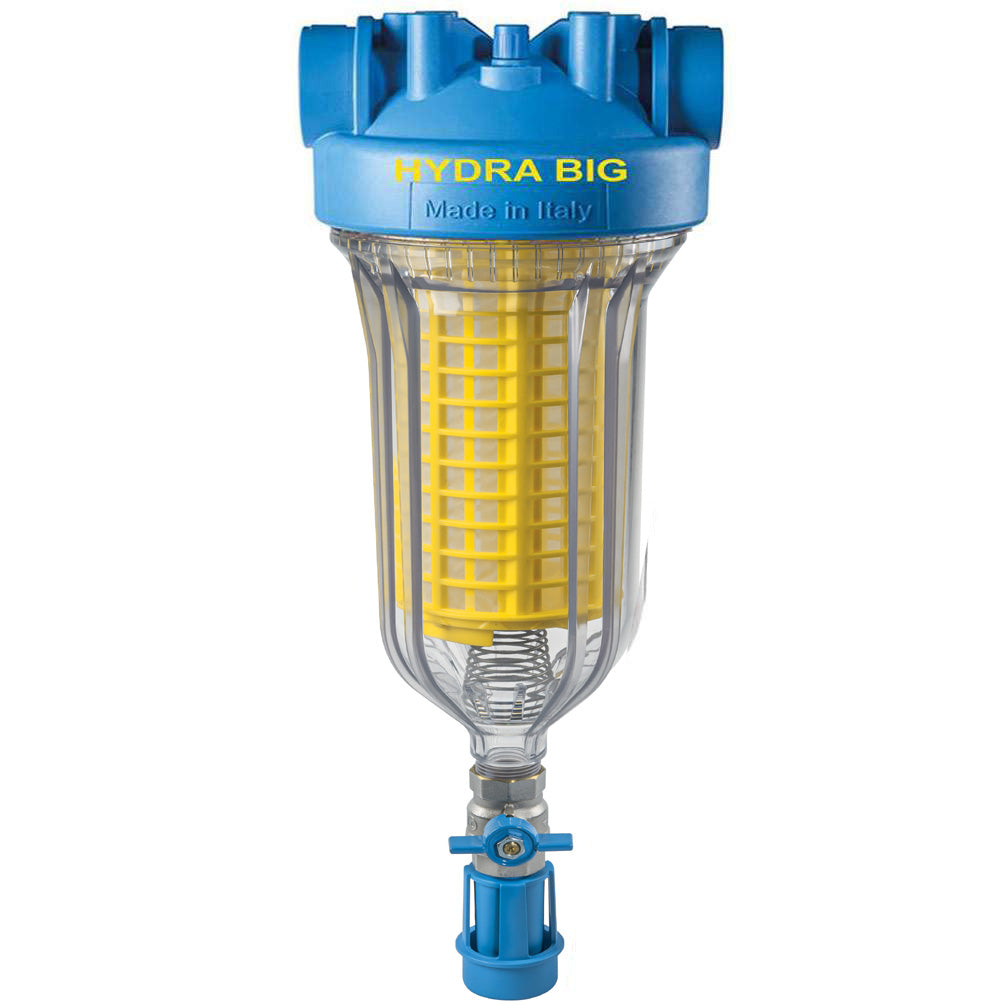

HYDRA Big 1" RLH 90 mcr IN - Backwash Filter

HYDRA BIG 1” RLH 90 mcr self-cleaning backwash filter

Compact backwash filter for the filtration and treatment of drinking water, well water, household water, etc.

Innovative backwash system with spring-loaded filter cartridge. When the flush valve is opened, the drop in pressure pulls the cartridge downward, cleaning it from the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

 - Operating pressure: 1.8 - 8.0 bar
 - Temperature range: 4 - 45 °C
 - Recommended maximum flow rate: 15000 l/h
 - BIG RAH 90 micron - sediment filter polyester mesh
 - Connection size: 1" female thread made of plastic

Including hose connector and drain funnel with backflow prevention according to UNI EN 1717-11/2002

You receive a HYDRA BIG 1” RLH 90 mcr complete with filter cartridge, drain set, wall bracket and housing wrench.
