HYDRA Big 1"1/2 RAH 90 mcr IN - Backwash Filter

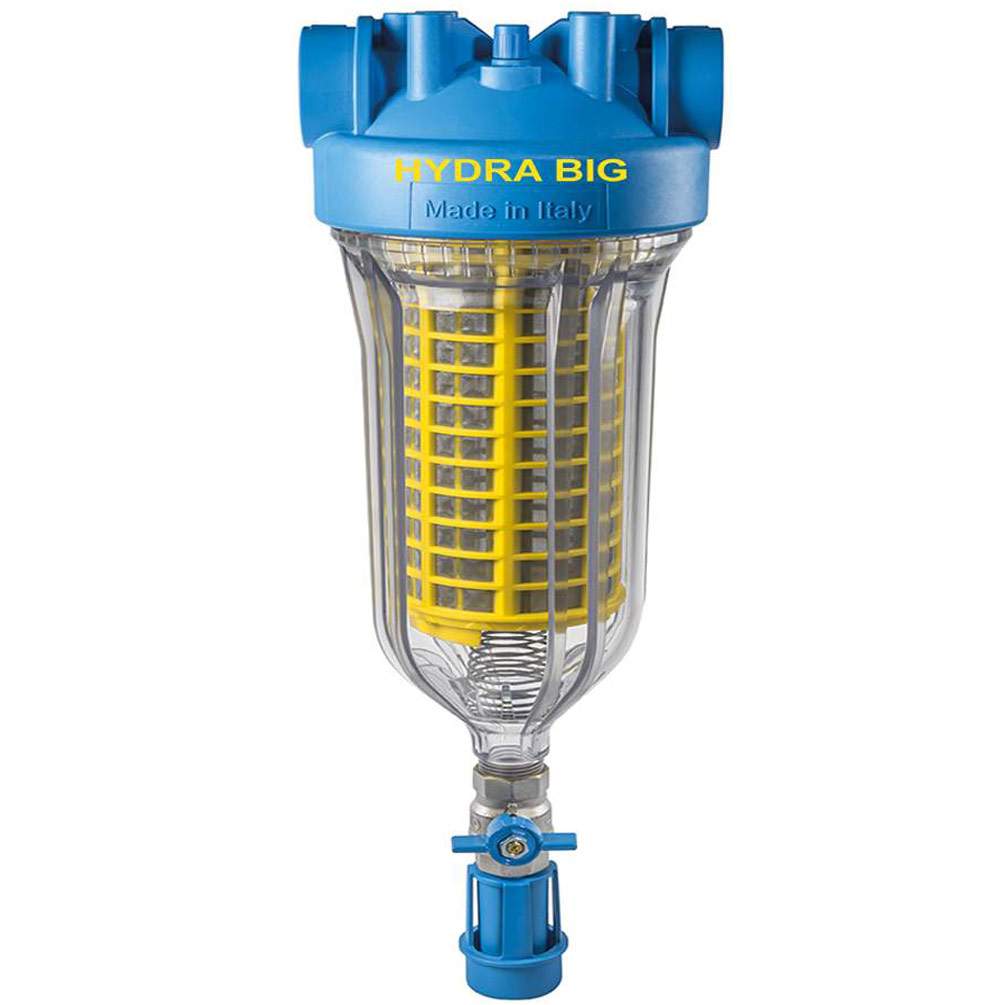

HYDRA BIG 1”1/2 RAH 90 mcr self-cleaning backwash filter

Compact backwash filter for filtration and treatment of drinking water, well water, household water, etc.

Innovative backwash system with spring-mounted filter cartridge. When the flush valve is opened, the cartridge is pulled down by the pressure drop, thereby cleaning the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

 - Operating pressure: 1.8 - 8.0 bar
 - Temperature range: 4 - 45 °C
 - Recommended maximum flow rate: 15,000 l/h
 - BIG RLH 90 Micron - Stainless Steel Mesh (EAN: 8021647070418)
- Connection size: 1"1/2 internal thread made of plastic

Including hose nozzle and drain funnel with backflow protection according to UNI EN 1717-11/2002

You will receive a HYDRA BIG 1”1/2 RLH 90 mcr complete with filter cartridge, drain set, wall bracket, and housing key
