HYDRA BIG 20 TRIO 1" TS RLH 90 mcr IN

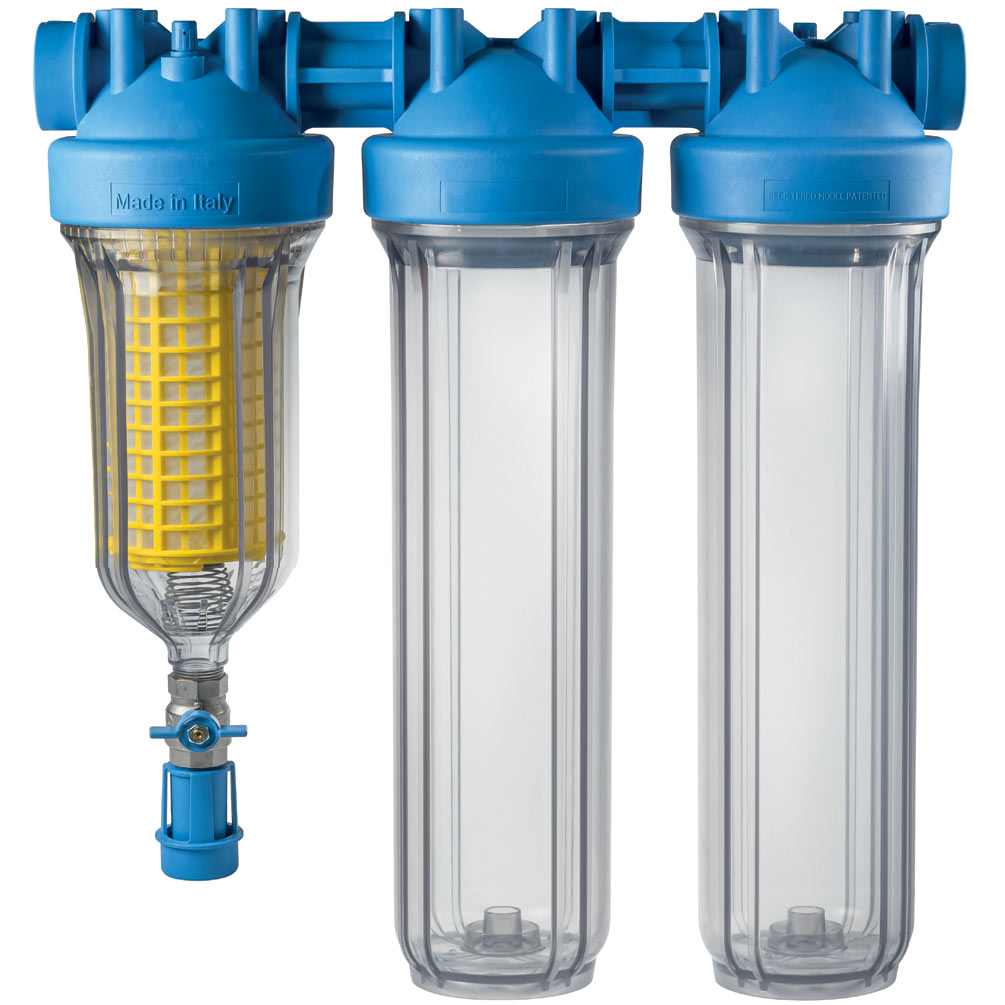

HYDRA BIG 20 TRIO 1" inch - Three-stage filter

TRIPLE filter housing - The housing head is made in one piece! "PATENTED"

Innovative backwash system with spring-mounted filter cartridge; when the flush valve is opened, the cartridge is pulled downward by the pressure drop, thereby cleaning the interior as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

In the next two stages, cartridges of the BIG 20" (DOE) series are used to further refine the filtration or continue the water treatment.

Including hose nozzle and drain funnel with backflow protection according to UNI EN 1717-11/2002

This works through the Self-Cleaning/Backwash Pre-Filter with 90 microns and with a final water treatment through a second and third filter cartridge of your choice , you can order separately in our shop.

One of the best POINT OF ENTRY whole house filtration systems on the market, filter your drinking water without pressure loss.

The HYDRA BIG TRIO water filter was designed to provide high water flow with low pressure loss. The 3-stage water treatment system is very space-saving and easy to install.

The HYDRA BIG TRIO water filter features a drain funnel/backflow protection to safeguard the drinking water supply.

Usage: Filtration and treatment of drinking water, well water, household water and wastewater, water tanks and other technical systems as well as pipelines.

Filtration:

1 x RLH - Pre-filtration Cartridge RLH: 90 MIC , filters sand and other particles larger than 90 microns
Lifespan: 12-24 months
Max. flow rate at approx. 3 bar pressure / 6000l/h.

as well as two additional 20" BIG filter cartridges of your choice.

Order this together in our shop and save on shipping costs.

The filter system is originally packaged, with filter housing a housing key and a filter cartridge RLH 90 µm.
