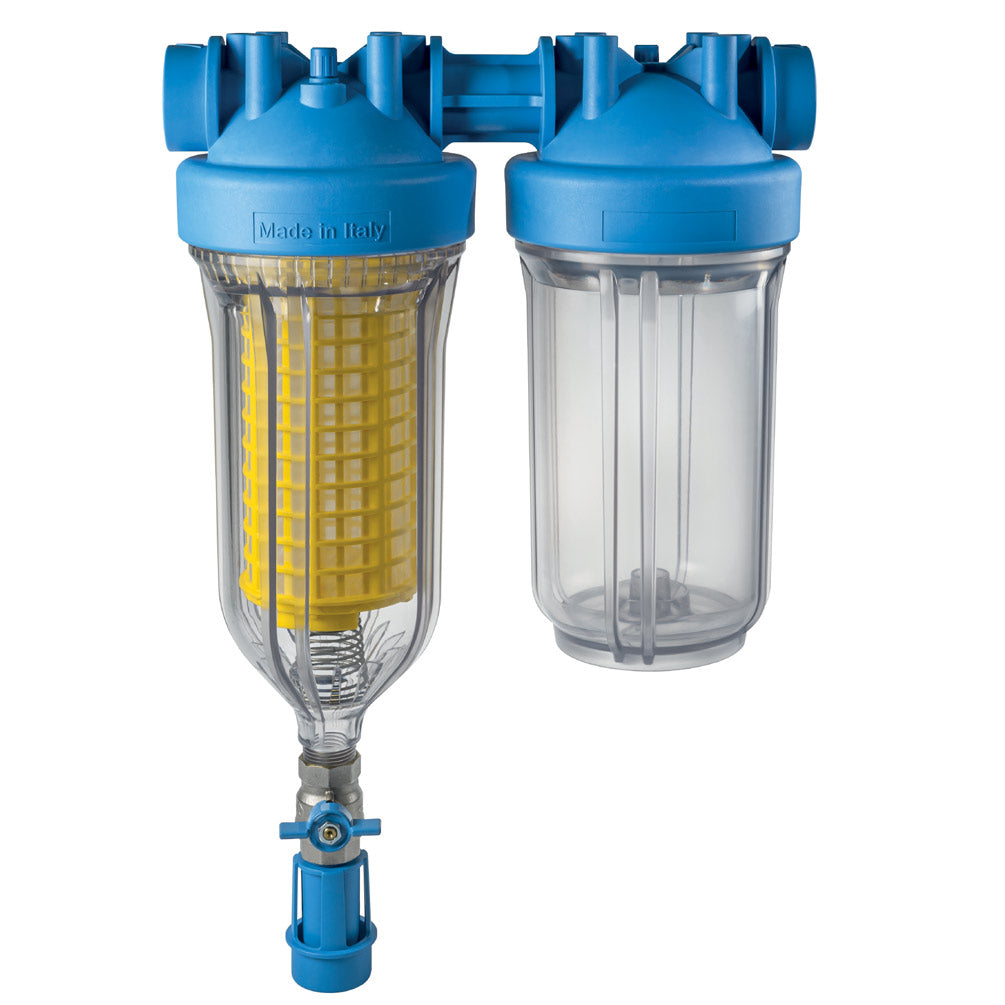

HYDRA BIG DUO RLH 50 mcr 1" inch - Two-stage filter

DOUBLE filter housing - The housing head is made from a single casting! PATENTED

Innovative backwashing system with spring-loaded filter cartridge; when the flushing valve is opened, the pressure drop pulls the cartridge downwards, thus cleaning the inside as well. A minimum pressure of 1.8 bar is required to ensure backwashing.

In the next stage, cartridges from the BIG 10" (DOE) series will be used to further refine the filtration or continue the water treatment.

Including hose nozzle and drain funnel with backflow protection according to UNI EN 1717-11/2002

This works through the Self-Cleaning/Backwash Pre-Filter with 50 microns and with a final water treatment by a second filter cartridge of your choice , you can order separately in our shop.

One of the best POINT OF ENTRY house filtration systems on the market, filter your drinking water without pressure loss.

The HYDRA BIG DUO water filter has been designed to provide high water flow with low pressure loss. The 2-stage water treatment system is very space-saving and easy to install.

The HYDRA BIG DUO water filter features a drain funnel/backflow protection to safeguard the drinking water supply.

Usage: Filtration and treatment of drinking water, well water, household water, and wastewater, water tanks and other technical systems as well as pipelines.



Filtration:

1 x RLH - Pre-filter Cartridge RLH: 50 MIC filters sand and other particles larger than 50 microns
Lifespan: 12-24 months
Max. flow rate at approx. 3 bar pressure / 6000l/h.

as well as another 10" BIG filter cartridge of your choice.

Order this now in our shop and save on shipping costs.

Areas of application:

Water Treatment
Well construction
Building technology

The filter system is original packaged, with filter housing a housing key, a wall mount, screws, and a filter cartridge RLH 50 µm.
