Technical Data
10" HYDRA BIG DUO filter housing
Dimensions: 515 x 390 x 185 mm (HxWxD)
Operating pressure: maximum 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all common 10" BIG cartridges with flat seal
Suitable for drinking water applications
Material Selection
Housing head: reinforced polypropylene
Housing cup: PET (transparent) or reinforced polypropylene (blue)
O-ring: EPDM
Vent valve: polypropylene, EPDM
Pre-filter
Rainwater filter
Device protection filter
Drinking water filter
Manufacturer Importer Information:
purway Crystal Group®
BONGARTZ GMBH
CEO Claudia Bongartz
Am Königshof 63a
27478 Cuxhaven
Germany
Email: info@purway.de
This filtration system prepares the water in high concentration cost-effective and filters pollutants as well as fine particles from the water.
This works through the self-cleaning/backwash pre-filter with 50 Micron and a final Water treatment of the LA CARBON cartridge.
The LA 10 BIG SX TS - Activated Carbon Granulate Water Filter consists of pressed activated carbon
and filters pollutants from the water such as chlorine, organic
Pollutants, light hydrocarbons, solvents, pesticides,
Insecticides, oils and flavors, taste impairments,
Odor disturbances.
Usage, scope, dimensions:
The 2-stage water treatment system is designed to save space and is easy to install.
The HYDRA DUO water filter features a drain funnel/backflow protection to safeguard the drinking water supply.
The HYDRA DUO house water filter is used for the filtration and treatment of rainwater, drinking water, household water, and wastewater, serving to protect fittings, pumps, water tanks, and other technical systems as well as the pipelines.
Technical Data
10" HYDRA BIG DUO filter housing
Dimensions: 515 x 390 x 185 mm (HxWxD)
Operating pressure: maximum 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all standard 10" BIG cartridges with flat seal
Suitable for drinking water applications
The individual filtration stages:

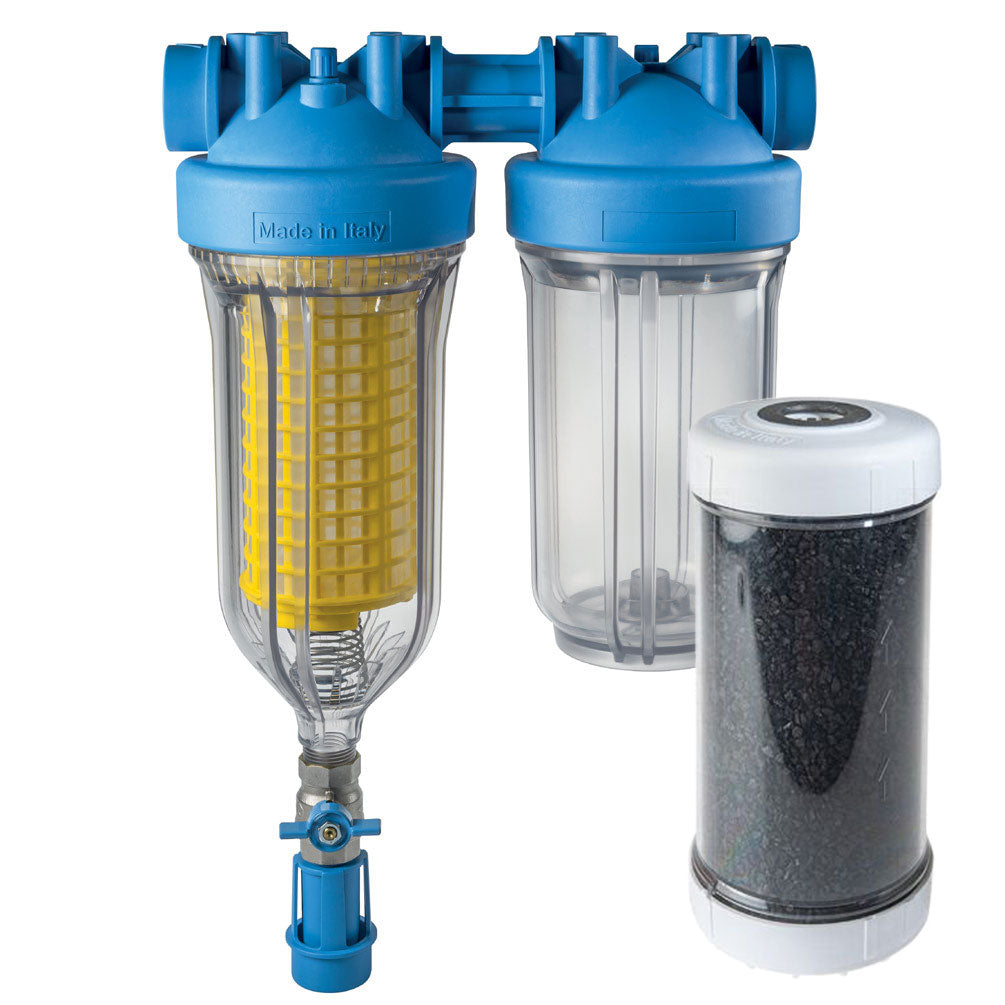

1 x RLH 50mcr HYDRA BIG - Sediment Filter Polyester Mesh
Self-cleaning pre-filter cartridge – RLH: 50 MIC
filters sand and other particles larger than 50 microns
Lifespan: approx. 12-24 months (depending on water quality and flow rate)
1 x LA 10 BIG SX TS - Activated Carbon Granulate Water Filter
filters chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, oils and flavors, taste impairments, odor impairments.
Lifespan: approx. 6 months (depending on water quality and flow rate)
The filter system is original packaged, with filter housing, a housing key, a wall mount, screws, and three filter cartridges.
