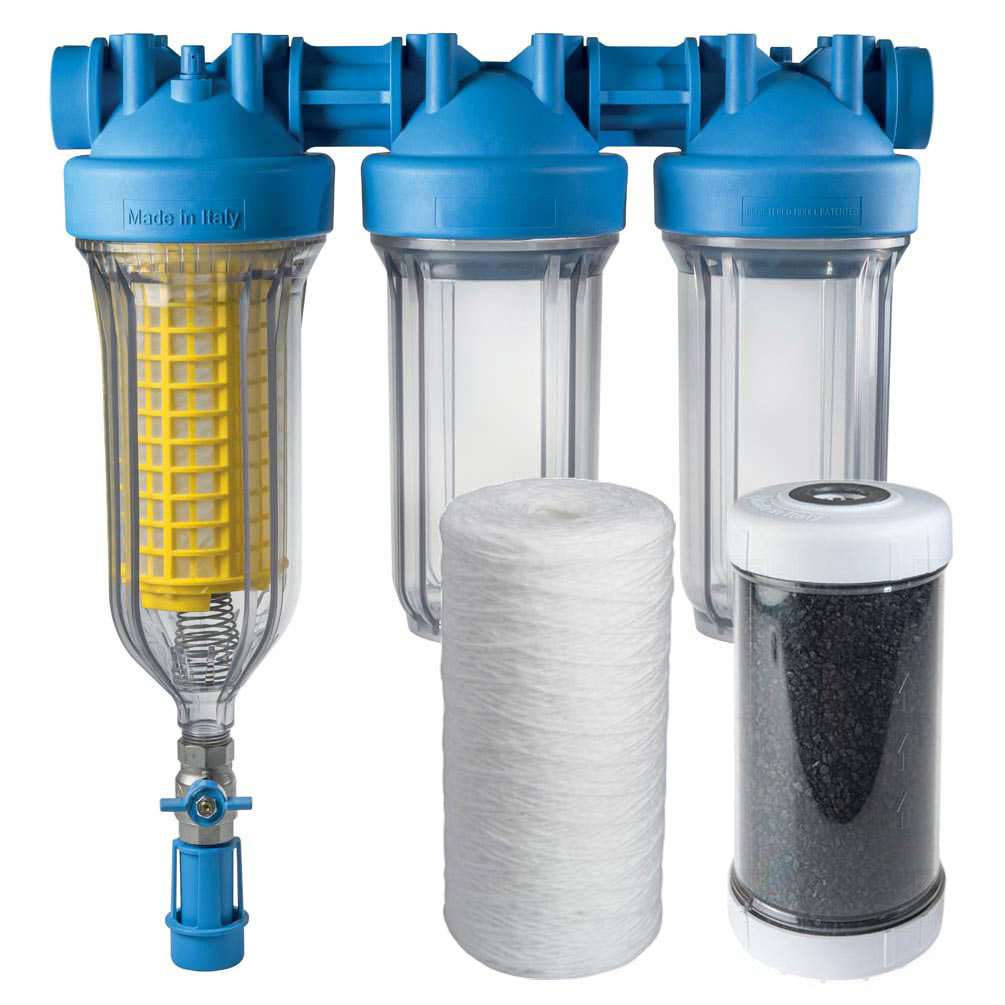

HYDRA BIG TRIO Rainmaster 1” LA - Rainwater Filter

HYDRA BIG TRIO Rainmaster LA 1” - Rainwater Filter

POWERFUL BIG TRIPLE filter housing with a one-piece head

This filtration system prepares the water in high concentration cost-effective and filters pollutants as well as fine particles from the water.

This works through the self-cleaning/backwash pre-filter with 90 Micron, a FA pre-filter with 25 microns and a final Water treatment of the LA CARBON cartridge.

The LA 10 BIG SX TS - Activated Carbon Granulate Water Filter consists of pressed activated carbon and filters pollutants from the water such as chlorine, organic Pollutants, light hydrocarbons, solvents, pesticides, Insecticides, oils and flavors, taste impairments, Odor disturbances.

The filter cleans the water to 25 microns.



Usage, scope, dimensions:

The 3-stage water treatment system is designed to save space and is easy to install.

The HYDRA TRIO water filter features a drain funnel/backflow protection to safeguard the drinking water supply.

The HYDRA TRIO house water filter is used for the filtration and treatment of rainwater, drinking water, household water, and wastewater, serving to protect fittings, pumps, water tanks, and other technical systems as well as the pipelines.

Technical Data

10" HYDRA BIG TRIO filter housing
Dimensions: 515 x 590 x 185 mm (HxWxD)
Operating pressure: maximum 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all standard 10" BIG cartridges with flat seal
Suitable for drinking water applications



The individual filtration stages:

1 x RLH 90mcr HYDRA BIG - Sediment Filter Polyester Mesh
Self-cleaning pre-filter cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Lifespan: approx. 12-24 months (depending on water quality and flow rate)


1 x FA 10 Big SX 25 Micron - Sediment Wound Filter Polypropylene

Wickelfilters are powerful sediment filters for the removal of sand, dust, rust, and other particles. The particularly even Winding of the polypropylene thread in production results in a compact cartridge with a large effective filter surface.
Lifespan: approx. 6 months (depending on water quality and flow rate)

1 x LA 10 BIG SX TS - Activated Carbon Granulate Water Filter
filters chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, oils and flavors, taste impairments, odor impairments.
Lifespan: approx. 6 months (depending on water quality and flow rate)


The filter system is original packaged, with filter housing, a housing key, a wall mount, screws, and three filter cartridges.
