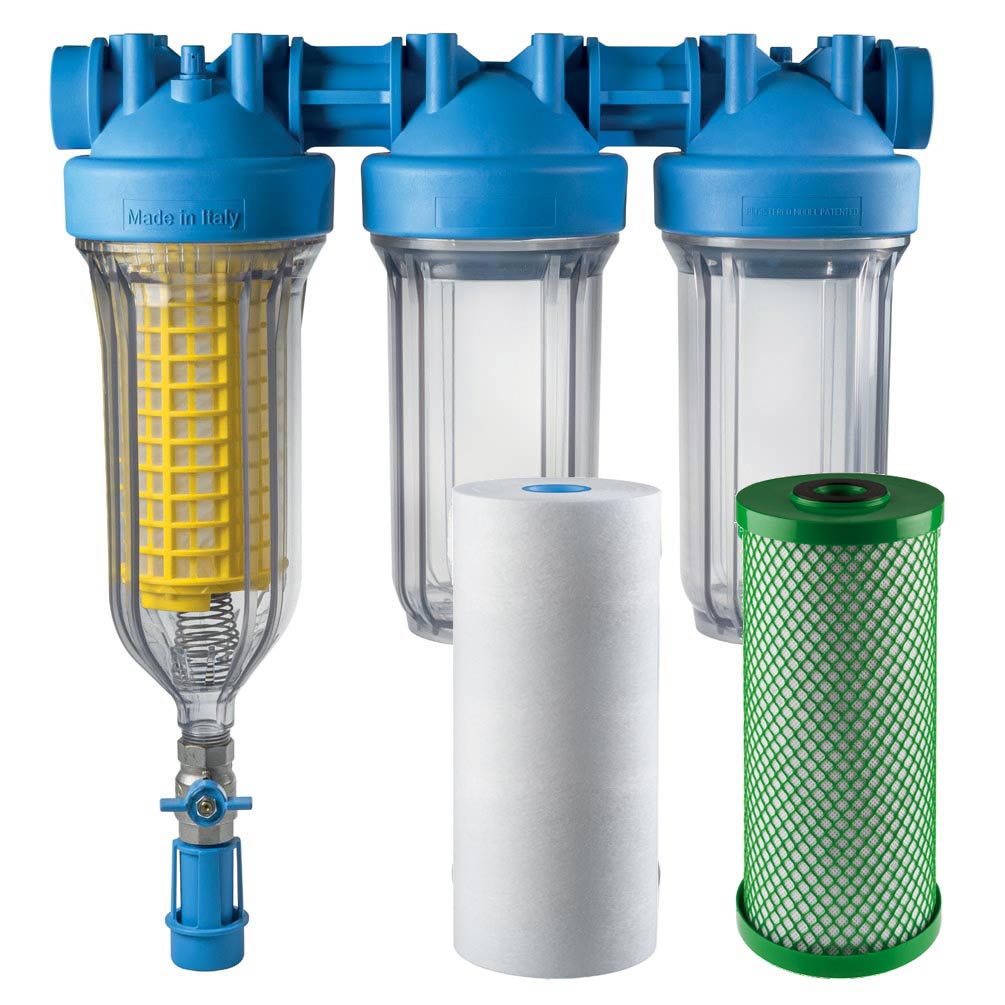

HYDRA BIG TRIO Scalemaster 1” - Anti-Scale Water Filter

HYDRA BIG TRIO Scalemaster 1” - Anti Limescale Water Filter

POWERFUL BIG TRIPLE filter housing with one-piece head

A limewater filter ist die ideale Lösung, um Ihr Zuhause effektiv vor Kalk zu schützen. Diese Filter verhindern die Bildung von Kalk und sorgen für weiches, kalkfreies Wasser, das die Lebensdauer Ihrer Geräte verlängert und Ihre Haut und Haare schont.

This works through the self-cleaning/backwash pre-filter with 90 microns, a CPP 10 BIG ScaleArmor™ - 5 mcr Anti Limescale Filter Cartridge and a final water treatment of the CB CARBON BLOCK cartridge.

The CB - VOC 10 BIG 5 mcr - Activated Carbon Block besteht aus gepresster Aktivkohle und filtert Schadstoffe aus dem Wasser wie Chlor, organische Schadstoffe, leichte Kohlenwasserstoffe, Lösungsmittel, Pestizide, Insektizide, Öle und Aromen, Geschmacks-Beeinträchtigungen, Geruchsbeeinträchtigungen, feine Partikel (Rost, Kalkflocken, Sand, Schuppen) und Schwebstoffe.

The filter cleans the water to 5 microns.



Usage, Scope, Dimensions:

The 3-stage water treatment system is designed to be very space-saving and easy to assemble.

The HYDRA TRIO household water filter features a drain funnel/backflow preventer to protect the drinking water supply.

The HYDRA TRIO is used for the filtration and treatment of drinking water, household water, and wastewater, serving to protect fittings, pumps, water tanks, and other technical systems as well as the pipelines.

Technical Data

10" HYDRA BIG TRIO Filter Housing
Dimensions: 515 x 590 x 185 mm (HxWxD)
Operating pressure: maximum 8.3 bar
Temperature range: 4 - 45 °C
Suitable for all standard 10" BIG cartridges with flat seal
Suitable for drinking water applications



The individual filtration stages:

1 x RLH 90mcr HYDRA BIG - Sediment Filter Polyester Mesh
Self-cleaning Pre-filtration Cartridge – RLH: 90 MIC
filters sand and other particles larger than 90 microns
Lifespan: approx. 12-24 months (depending on water quality and flow rate)


1 x CPP 10 BIG ScaleArmor 5 mcr - Anti Limescale Filter

Prevents limescale buildup, reduces deposits, protects against corrosion, retains sediments: CPP ScaleArmor™ is the perfect solution for tap water.

CPP 10 inch BIG ScaleArmor™ is the cartridge of the ScaleArmor™ Blues system and perfectly fulfills the dual purpose of preventing limescale deposits and removing sediments with a filtration rating of 5 microns. The effectiveness is ensured by the structure and materials of the cartridge: a meltblown filter septum made of polypropylene and a core filled with the unique ScaleArmor™ anti-limescale material.
Lifetime: approx. 6 months (depending on water quality and flow rate)

1 x CB - VOC 10 BIG 5 mcr - Activated Carbon Block
filters chlorine, organic pollutants, light hydrocarbons, solvents, pesticides, oils and aromas, taste impairments, odor impairments, fine particles (rust, lime flakes, sand, flakes) and suspended solids.
Lifespan: approx. 6 months (depending on water quality and flow rate)


The filter system is originally packaged, with a filter housing, a housing key, a wall mount, screws, and three filter cartridges.
