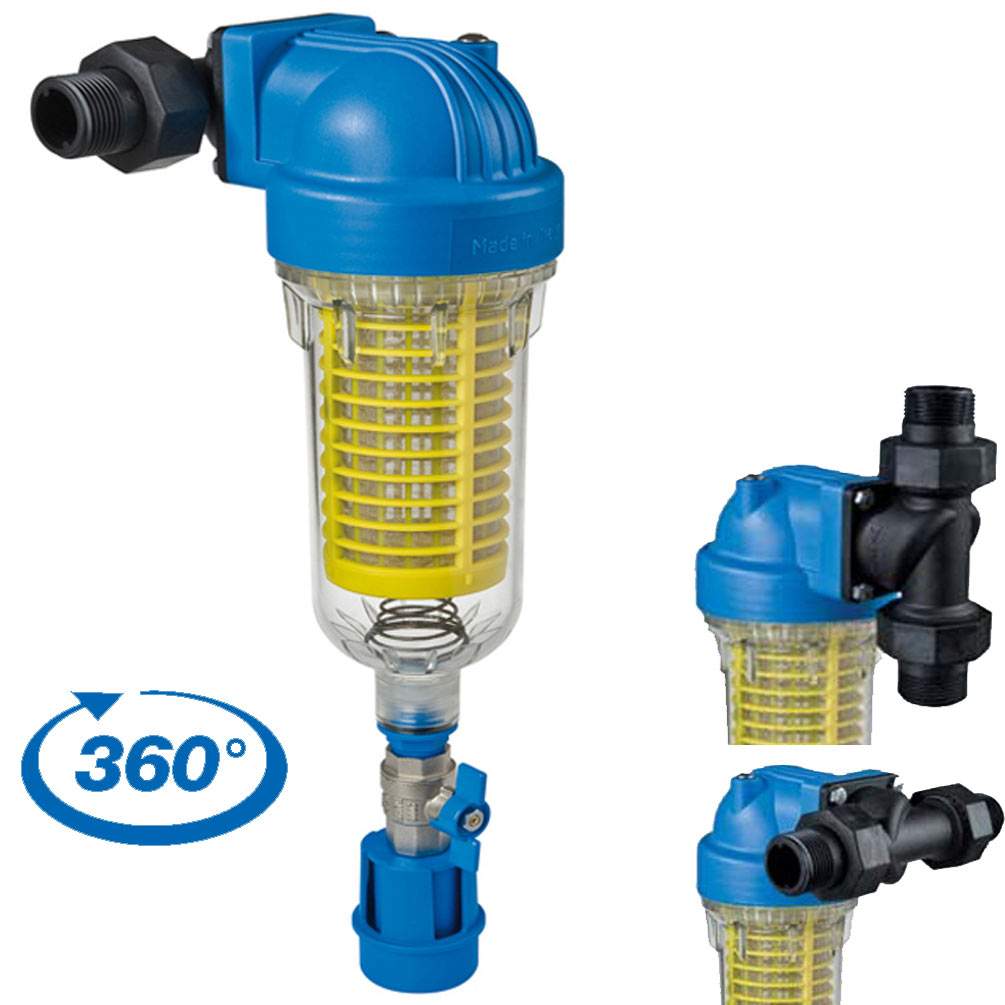

HYDRA DS MP 3/4”-1” INCH RLH 360° BACKWASH FILTER

HYDRA DS MP 3/4" and 1" RLH 90 mcr Filter Housing - horizontal and vertical

The water filter housing is 360° rotatable and can be used horizontally or vertically, it is connected directly to the house entrance pipe or directly behind the water pump.

The HYDRA DS MP Well Water Prefilter is extremely sturdy and designed for filtering tap water or well water.

Innovative backwash system with spring-loaded filter cartridge. When the flush valve is opened, the cartridge is pulled down by the pressure drop, cleaning the inside as well. A minimum pressure of 1.8 bar is necessary to ensure backwashing.

Includes hose barb and drain funnel with backflow prevention according to UNI EN 1717-11/2002

Recycling well water is an absolute must nowadays, clear water is a necessity for every household.

This is achieved through the Self-Cleaning/Backwash Prefilter with 90 microns.

The HYDRA Well Water Filter is designed to provide high water flow with low pressure loss.

The 1-stage water treatment system is very space-saving and easy to install.

The HYDRA Well Water Filter has a drain funnel/backflow prevention to protect the drinking water supply.

Filtration of fine particles (rust, sand, scales, debris, etc.)

Filter housing dimensions:
Height: 428 Width: 170 Depth: 168 mm
IN / OUT connection made of plastic in 3/4" and 1" inch (selectable from 2 included connectors)
Max. operating pressure: 8 bar (116 psi).
Min. operating pressure: 1.8 bar (26 psi).
Maximum temperature: up to 45 °C

FILTRATION:
1 x RLH - Prefiltration Cartridge
Self-cleaning Prefiltration Cartridge - RLH: 90 MIC
filters sand and other particles larger than 90 microns
- Lifespan: 12-24 months
- 7" inch filter dimensions: 173 x 70 x 30 mm
- Max. recommended flow rate 6000 l/h.

The filter system is brand new in its original packaging with filter housing, a housing key, and filter cartridge.
